Bravo Roma Single Zone Wall Mount, 36,000 BTU (3 Ton) Mini Split AC and Heat Pump R32
Everyday heating and cooling with a clean, wall-mounted design.
Model: BRV-R36W-230VI + BRV-R36LS-230VO
Certified and supported
Product resources. Clear support. Lasting peace of mind.
AHRI
Matched-system ratings
ETL
Safety listing resources
R32
Refrigerant by model
GoldFin
Coating by model
Inverter technology
Variable-speed comfort
Smart App
Compatible systems
Certifications, coatings, refrigerant and connected features vary by model and matched system. Verify your exact equipment in the product documentation.
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Welcome to ROMA
Roman inspiration. Everyday comfort.The warmth of Roman arches, soft daylight and clean lines. Discover wall-mounted comfort inspired by spaces that feel like home.
Explore ROMA Italian design. Real comfort.Product description
BRAVO ROMA — Single Zone Wall Mount
Bravo Roma 3 Ton Wall Mount Mini Split, 36,000 BTU AC & Heat Pump (R32) · BRV-R36W-230VI + BRV-R36LS-230VO
High-capacity single-zone ductless system with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included for powerful, efficient comfort in larger spaces.
Performance features
- Single-zone wall-mounted design — ideal for large rooms or open living spaces
- Inverter compressor for efficient, modulating cooling and heating
- Wi-Fi adapter and SMART APP included for control from your smart device
- Remote control included for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
35,000 Btu/h (36K class)
34,500 Btu/h
Up to 882 CFM
39–55 dB(A) (multi-speed)
Watch: Product Overview

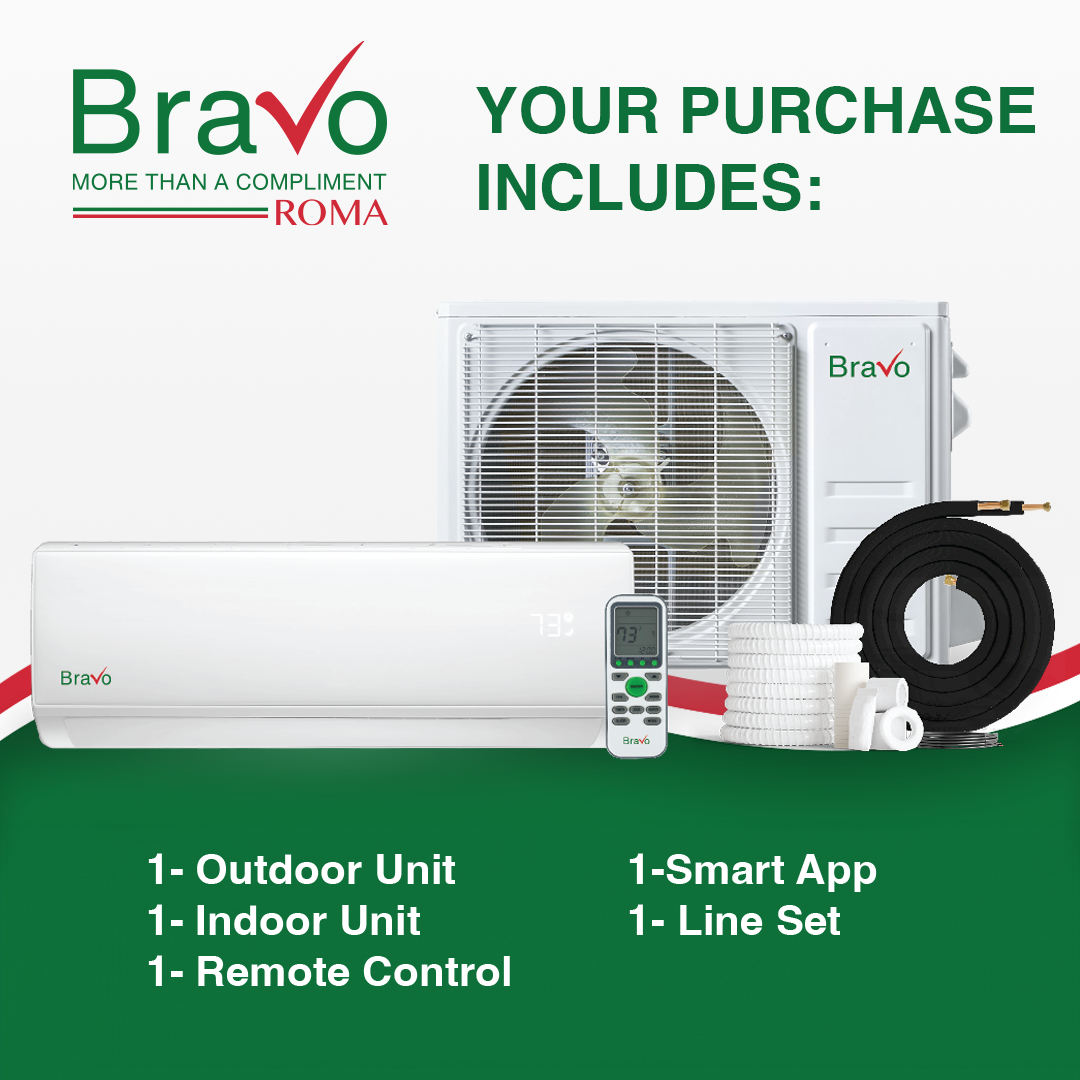

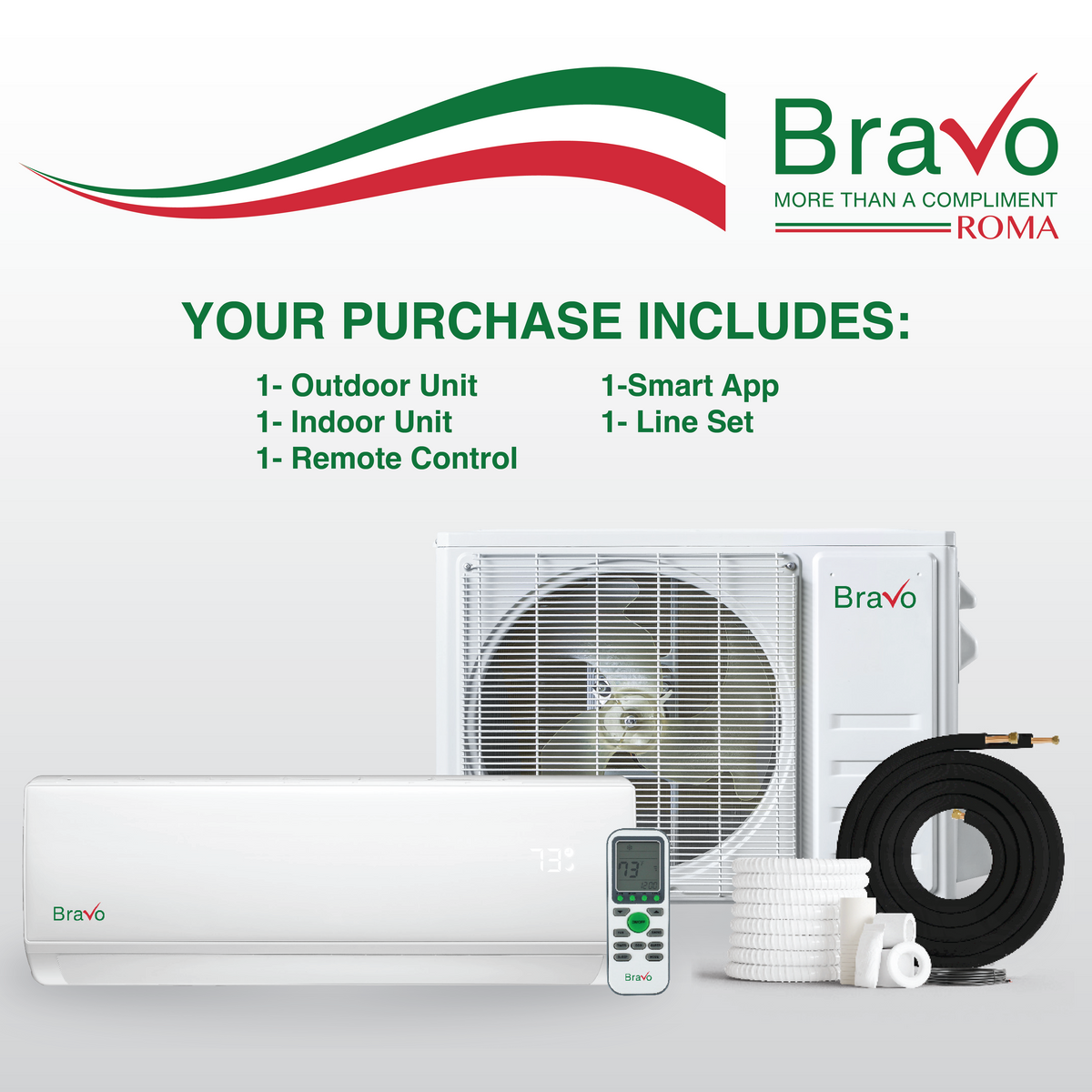

What’s included

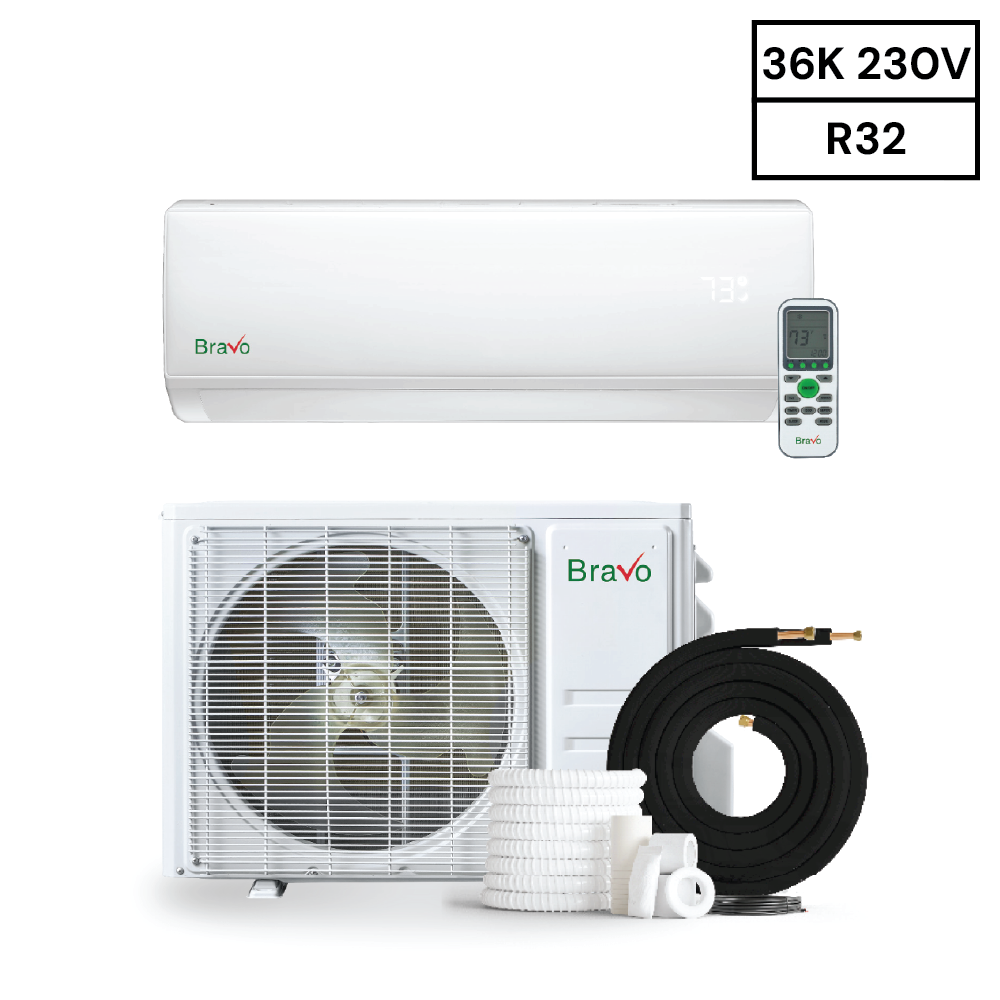

- Complete Bravo Roma 36,000 BTU Single-Zone System — mini split AC & heat pump inverter set
- Indoor Unit: BRV-R36W-230VI (36,000 BTU wall mount, with wireless remote)
- Outdoor Unit: BRV-R36LS-230VO (36,000 BTU heat pump condenser)
- Wi-Fi Adapter for SMART APP connectivity
- 13 ft Installation Kit Included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
All units must be installed by a licensed HVAC professional for the warranty to remain valid. Registration is typically required within 60 days of installation (online or by phone).
Other Bravo Roma single-zone wall mount systems
Warranty
3-Year Compressor (limited) • 3-Year Parts (limited)
Warranty typically requires installation by a licensed HVAC technician and timely product registration. Always refer to the current Bravo warranty terms for full coverage details.
Technical specifications
System ratings
| Indoor Model | BRV-R36W-230VI |
|---|---|
| Outdoor Model | BRV-R36LS-230VO |
| Power Supply (V-Ph-Hz) | 208/230V • 1Ph • 60 Hz |
| Cooling Capacity (Btu/h) | 35,000 |
| Heating Capacity (Btu/h) | 34,500 |
| EER2 | 9.7 |
| SEER2 | 17 |
| HSPF2-4 | 8.5 |
| COP2 (Heating) | 3.2 W/W |
| Minimum Circuit Ampacity | 23 A |
| Max Fuse | 35 A |
| Refrigerant Type | R32 |
| Refrigerant Precharge | 25 ft line length |
| Max Refrigerant Pipe Length | 65 ft |
| Refrigerant Piping (Liquid / Gas) | 1/4″ / 5/8″ |
Indoor unit (BRV-R36W-230VI)
| Air Flow (CFM) | 882 / 741 / 564 / 458 / 411 (multi-speed) |
|---|---|
| Sound Level Hi–Lo (dB[A]) | 55 / 52 / 46 / 41 / 39 |

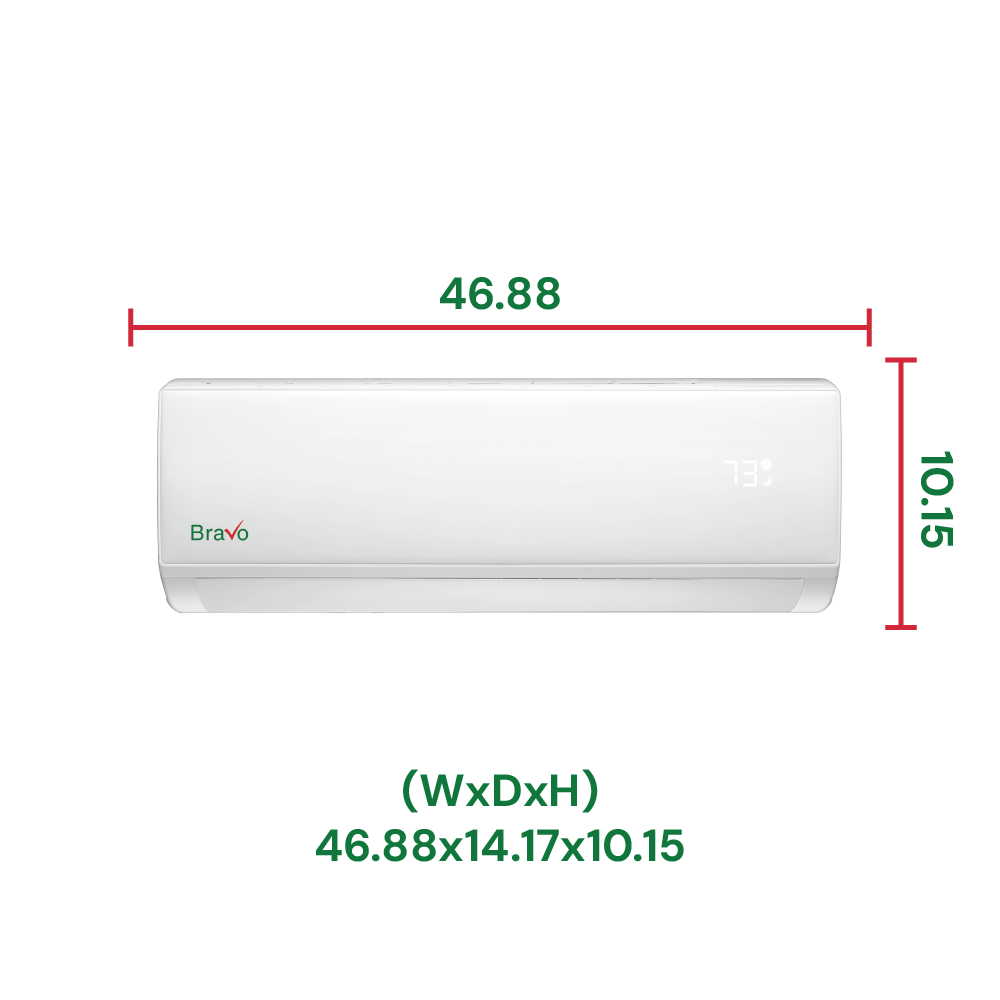

| Dimensions (W×D×H, in) | 46.88 × 14.17 × 10.15 |
| Packing (W×D×H, in) | 49.60 × 16.92 × 12.91 |
| Net Weight (lb) | 46.3 |
Outdoor unit (BRV-R36LS-230VO)
| Outdoor Air Flow (CFM) | 1,645 |
|---|---|
| Outdoor Sound Level (dB[A]) | 63 |

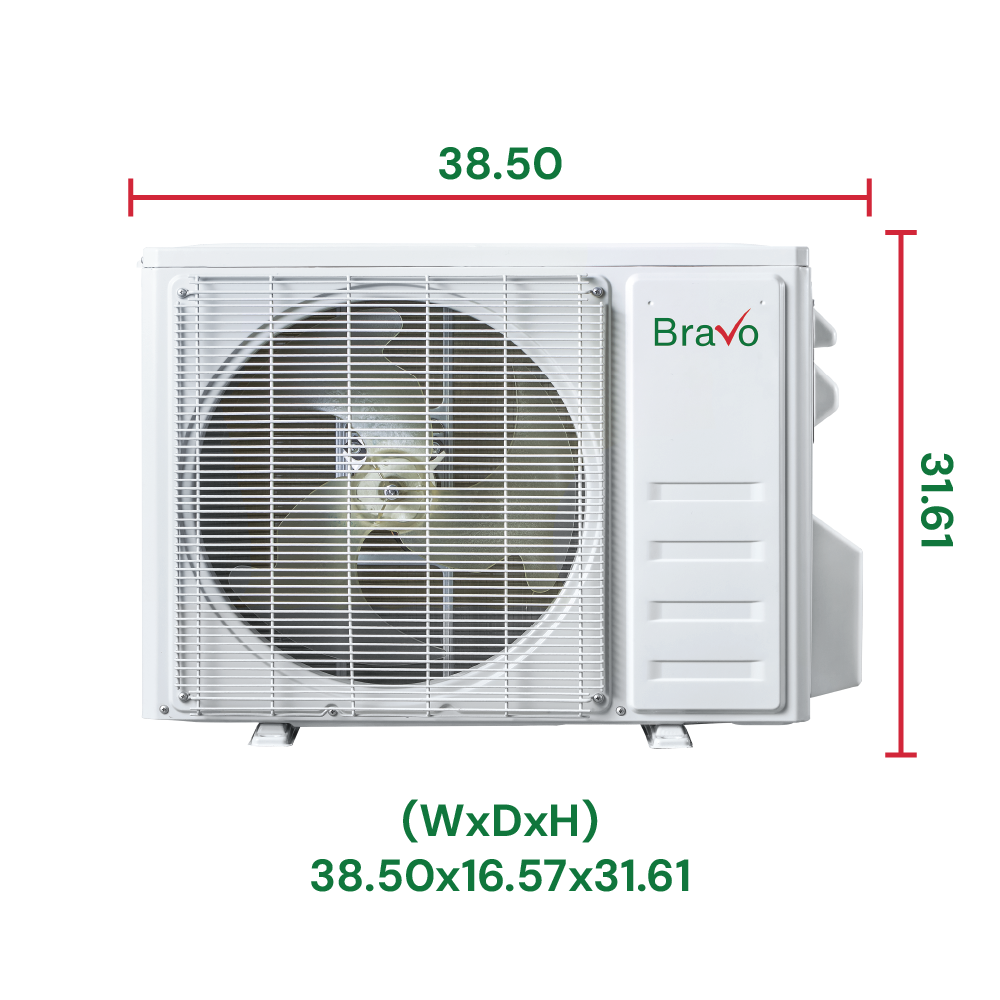

| Dimensions (W×D×H, in) | 38.50 × 16.57 × 31.61 |
| Packing (W×D×H, in) | 40.23 × 18.89 × 32.87 |
| Net Weight (lb) | 120.2 |
| Design Pressure | 652.5 PSIG |
Operating temperature ranges
| Indoor (Cooling / Heating) | ≥ 62°F / ≤ 86°F |
|---|---|
| Outdoor (Cooling) | 5°F to 122°F |
| Outdoor (Heating) | −4°F to 86°F |
| Connection Wiring | 4 × 16 AWG |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo Function for rapid cooling or heating
- Silent Function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & downloads
Full description
Tap to expand
The Bravo Roma 36,000 BTU single-zone wall mount mini split is built for larger spaces that demand strong, efficient performance. With inverter technology, R32 refrigerant, and a SEER2 rating of 17, it delivers year-round comfort while helping to manage energy use. The included Wi-Fi adapter and SMART APP let you control temperature, modes, and scheduling from your phone or tablet, while the handheld remote and wall display provide in-room control.
Multiple comfort modes (Super, Eco, Sleep, Silent) and wide airflow settings give you fine-grained control over how the system behaves, from quick pull-down on hot days to ultra-quiet operation at night. The self-cleaning and anti-mildew features help keep the indoor unit’s coil drier and cleaner, and the activated carbon filter assists with odor and particulate reduction. With an included 13 ft installation kit and robust 3-year limited warranty coverage on compressor and parts (when installed by a licensed HVAC professional), the Bravo Roma 36K is a strong choice for high-capacity single-room comfort.
FAQs
Does this system include a line set?
What refrigerant does this unit use?
What are the operating temperature limits?
Do I need a licensed HVAC professional to install it?
