BRAVO ROMA — Single Zone Wall Mount
Bravo Roma 1.5 Ton Wall Mount Mini Split, 18,000 BTU AC & Heat Pump (R32) · BRV-R18W-230VI + BRV-R18LS-230VO
Efficient 18,000 BTU single-zone ductless mini split with inverter technology, R32 refrigerant, smart app control, and a 13 ft installation kit included — ideal for bedrooms, living rooms, and medium-size spaces.
Performance features
- Single-zone wall-mounted design — sized for bedrooms, living rooms, and medium-size areas
- Inverter compressor for efficient, modulating cooling and heating
- Wi-Fi adapter and SMART APP included for control from your phone or tablet
- Wireless remote control for convenient in-room adjustments
- Comfort modes: Super, Eco, Sleep, and Silent
- Louver auto swing for even air distribution
- Self-cleaning function with anti-mildew mode
- Multiple fan speeds and programmable timer
- Activated carbon filter for improved air quality
17,000 Btu/h
17,000 Btu/h
Up to 588 CFM
32–49 dB(A) (multi-speed)
Watch: Product Overview
What’s included

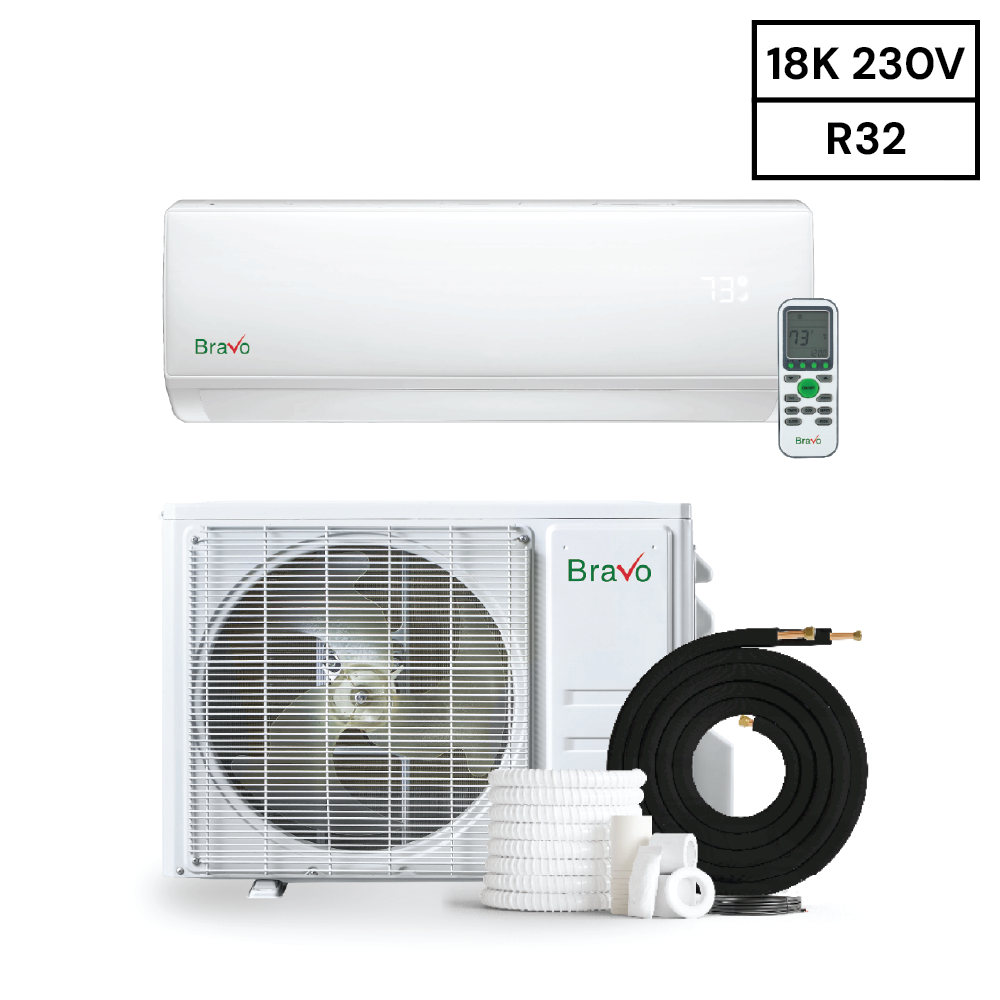

- Complete Bravo Roma 18,000 BTU Single-Zone System — mini split AC & heat pump inverter set
- Indoor Unit: BRV-R18W-230VI (18,000 BTU wall mount, with wireless remote)
- Outdoor Unit: BRV-R18LS-230VO (18,000 BTU heat pump condenser)
- Wi-Fi Adapter for SMART APP connectivity
- 13 ft Installation Kit Included — pre-flared 99% copper line set, communication wire, PVC drain attachment, wrapping bands, and accessories
- Installation manual and user’s manual
- Manufacturer limited warranty (see warranty section)
All units must be installed by a licensed HVAC professional for the warranty to remain valid. Registration is typically required within 60 days of installation (online or by phone).
Other Bravo Roma single-zone wall mount systems
Warranty
3-Year Compressor (limited) • 3-Year Parts (limited)
Warranty typically requires installation by a licensed HVAC technician and timely product registration. Always refer to the current Bravo warranty terms for full coverage details.
Technical specifications
System ratings
| Indoor Model | BRV-R18W-230VI |
|---|---|
| Outdoor Model | BRV-R18LS-230VO |
| Power Supply (V-Ph-Hz) | 208/230V • 1Ph • 60 Hz |
| Cooling Capacity (Btu/h) | 17,000 |
| Heating Capacity (Btu/h) | 17,000 |
| EER2 | 9.5 |
| SEER2 | 18 |
| HSPF2-4 | 10.5 |
| COP2 (Heating) | 3.5 W/W |
| Minimum Circuit Ampacity | 13 A |
| Max Fuse | 20 A |
| Refrigerant Type | R32 |
| Refrigerant Precharge | 25 ft line length |
| Design Pressure | 652.5 PSIG |
| Refrigerant Piping (Liquid / Gas) | 1/4″ / 3/8″ |
| Max Refrigerant Pipe Length | 50 ft |
| Connection Wiring | 4 × 16 AWG |
Indoor unit (BRV-R18W-230VI)
| Indoor Air Flow (CFM) | 588 |
|---|---|
| Indoor Noise Level (Hi–Lo, dB[A]) | 49 / 45 / 43 / 40 / 37 / 34 / 32 |

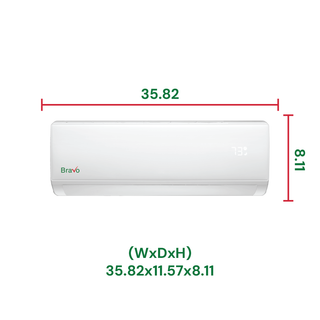

| Dimensions (W×D×H, in) | 35.82 × 11.57 × 8.11 |
| Packing (W×D×H, in) | 38.54 × 14.64 × 10.90 |
| Net Weight (lb) | 26.46 |
Outdoor unit (BRV-R18LS-230VO)
| Outdoor Air Flow (CFM) | 1,704 |
|---|---|
| Outdoor Sound Level (dB[A]) | 57 |
| Dimensions (W×D×H, in) | 31.88 × 12.00 × 21.61 |
| Packing (W×D×H, in) | 33.54 × 14.09 × 24.02 |
| Net Weight (lb) | 62.8 |
Operating temperature ranges
| Indoor (Cooling / Heating) | ≥ 62°F / ≤ 86°F |
|---|---|
| Outdoor (Cooling) | 5°F to 122°F |
| Outdoor (Heating) | −4°F to 86°F |
Certifications
Comfort & performance features
- Sleek matte finish indoor unit
- Turbo Function for rapid cooling or heating
- Silent Function for reduced sound levels
- LED display for quick status and setpoint checks
- Horizontal auto swing for improved air distribution
- Programmable timer
- Comfortable Sleep Mode for nighttime operation
- Multiple fan speeds for fine-tuned airflow
- Self-cleaning function to help reduce coil buildup
- Follow Me function (temperature sensing at the remote)
- Activated carbon filter for enhanced air filtration
Manuals & downloads
Full description
Tap to expand
The Bravo Roma 18,000 BTU single-zone wall mount mini split is designed for spaces that need efficient, quiet comfort without ductwork. With inverter technology and R32 refrigerant, it delivers up to SEER2 18 and HSPF2-4 10.5 performance, helping manage energy use while keeping rooms comfortable in both cooling and heating seasons.
The included Wi-Fi adapter and SMART APP let you adjust temperature, modes, and scheduling from your smart device, while the handheld remote provides direct in-room control. Comfort modes such as Super, Eco, Sleep, and Silent let you tailor how the system behaves — from fast pull-down on hot days to quieter nighttime operation. Self-cleaning and anti-mildew functions help keep the indoor coil drier and cleaner, and the activated carbon filter assists with odor and particulate reduction. With an included 13 ft installation kit and robust 3-year limited warranty coverage on compressor and parts (when installed by a licensed HVAC professional), the Bravo Roma 18K is a strong choice for reliable single-room comfort.
FAQs
Does this system include a line set?
What refrigerant does this unit use?
What are the operating temperature limits?
Do I need a licensed HVAC professional to install it?
