BRAVO — Multi-Position Heat Pump System

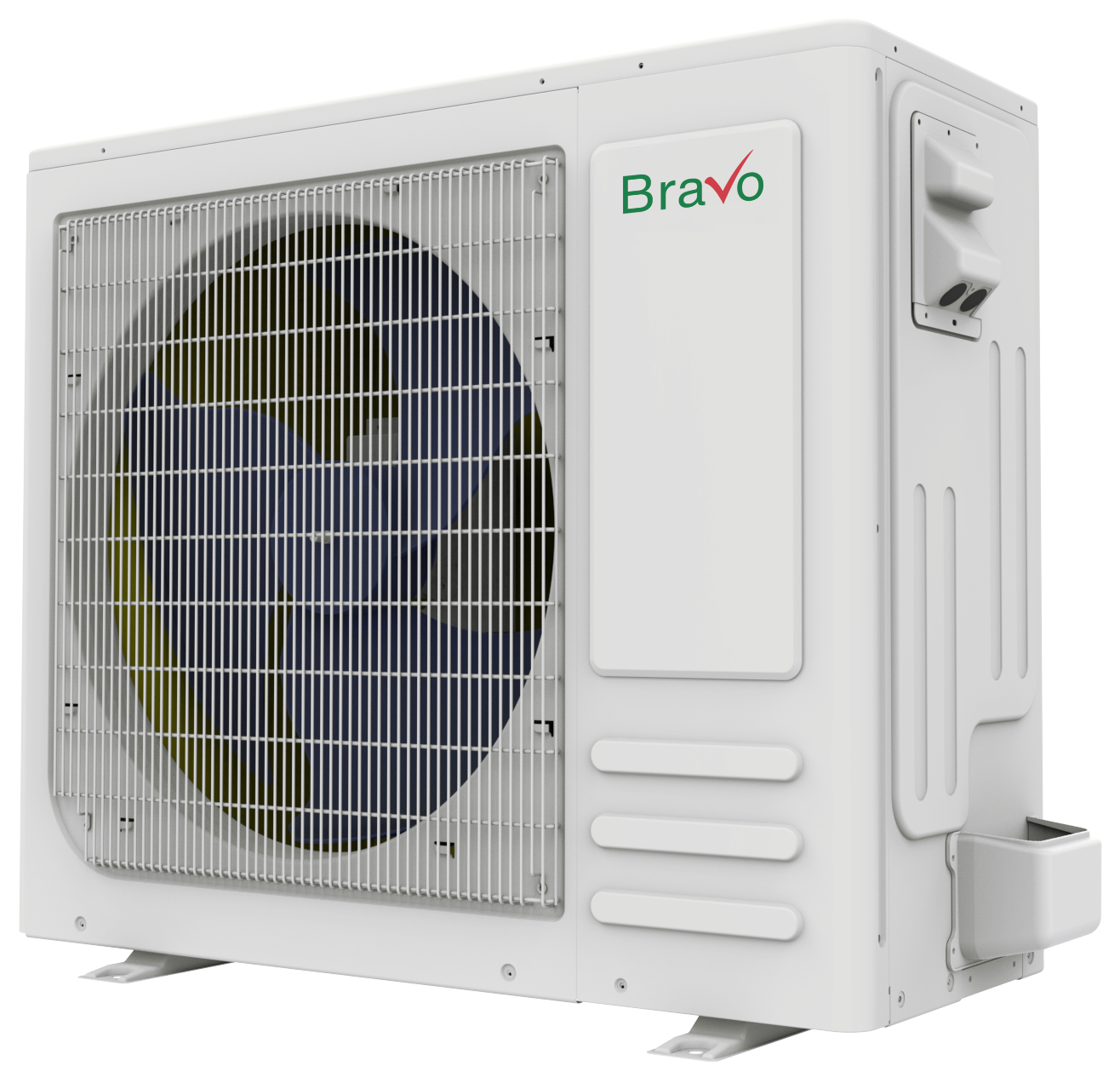

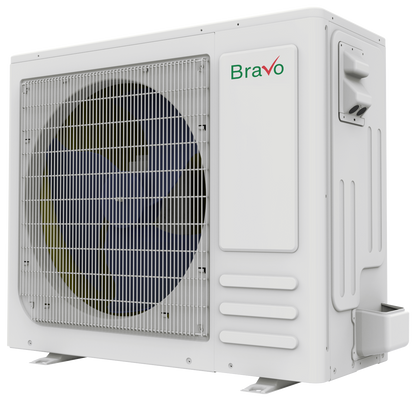

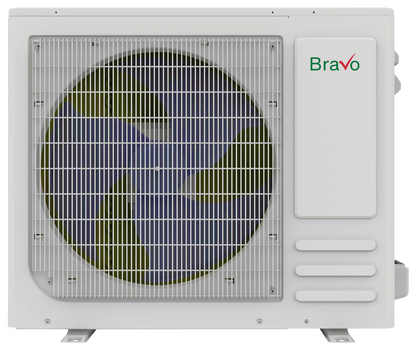

Bravo 24,000 BTU Single Zone Heat Pump System with Multi-Position Air Handler, 208-230V
The Bravo 24,000 BTU heat pump system pairs the BRV-SD24HI-230VO outdoor unit with the BRV-MP24AHUW-230VI indoor air handler for efficient year-round comfort in mid-sized residential applications. This single-zone system uses R32 refrigerant , operates on 208-230V single-phase power , and is designed for dependable heating and cooling performance across a broad range of outdoor conditions.
Overview
The Bravo 24,000 BTU heat pump system pairs the BRV-SD24HI-230VO outdoor unit with the BRV-MP24AHUW-230VI indoor air handler for efficient year-round comfort in mid-sized residential applications. This single-zone system uses R32 refrigerant, operates on 208-230V single-phase power, and is designed for dependable heating and cooling performance across a broad range of outdoor conditions.
The indoor unit features multi-position installation, an ECM fan motor with constant torque technology, and support for up to 0.80 in. w.g. external static pressure. AHRI and ETL certifications add confidence for long-term performance and safety.
Performance features
- Efficient comfort: This pairing is rated at 17.7 SEER2 and 10.4 EER2 in the provided specs.
- Flexible installation: Supports horizontal left, horizontal right, vertical up, and vertical down configurations.
- Enhanced airflow control: ECM fan motor uses constant torque technology for dependable air delivery.
- External static pressure: Supports up to 0.80 in. w.g. for more flexible ducted applications.
- Optional insulation upgrade: 1 inch R4.2 fiberglass-free insulation helps reduce condensation and improve efficiency.
- Auxiliary heat ready: Supports an optional auxiliary heat kit up to 20kW.
- Multiple control options: Feature copy provided for this system notes a wired controller with built-in WiFi and 24V thermostat.
- Adaptive operation: Adaptive Control System helps optimize performance across changing conditions.
- Cold-weather protection: Crankcase heater comes equipped as standard.
- Service-friendly design: Built for easy maintenance and dependable long-term use.
What’s Included

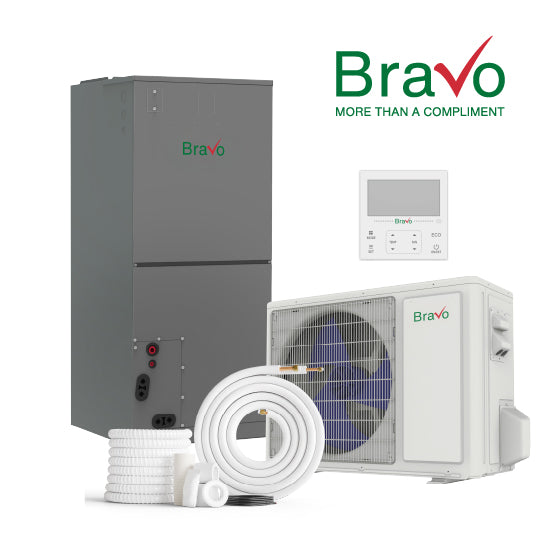

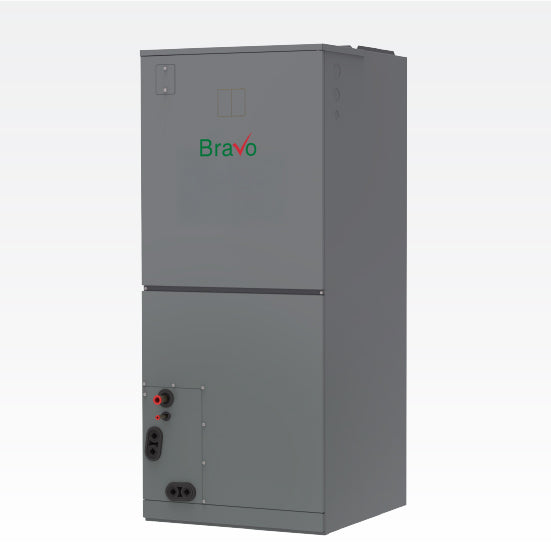

- Indoor unit: BRV-MP24AHUW-230VI

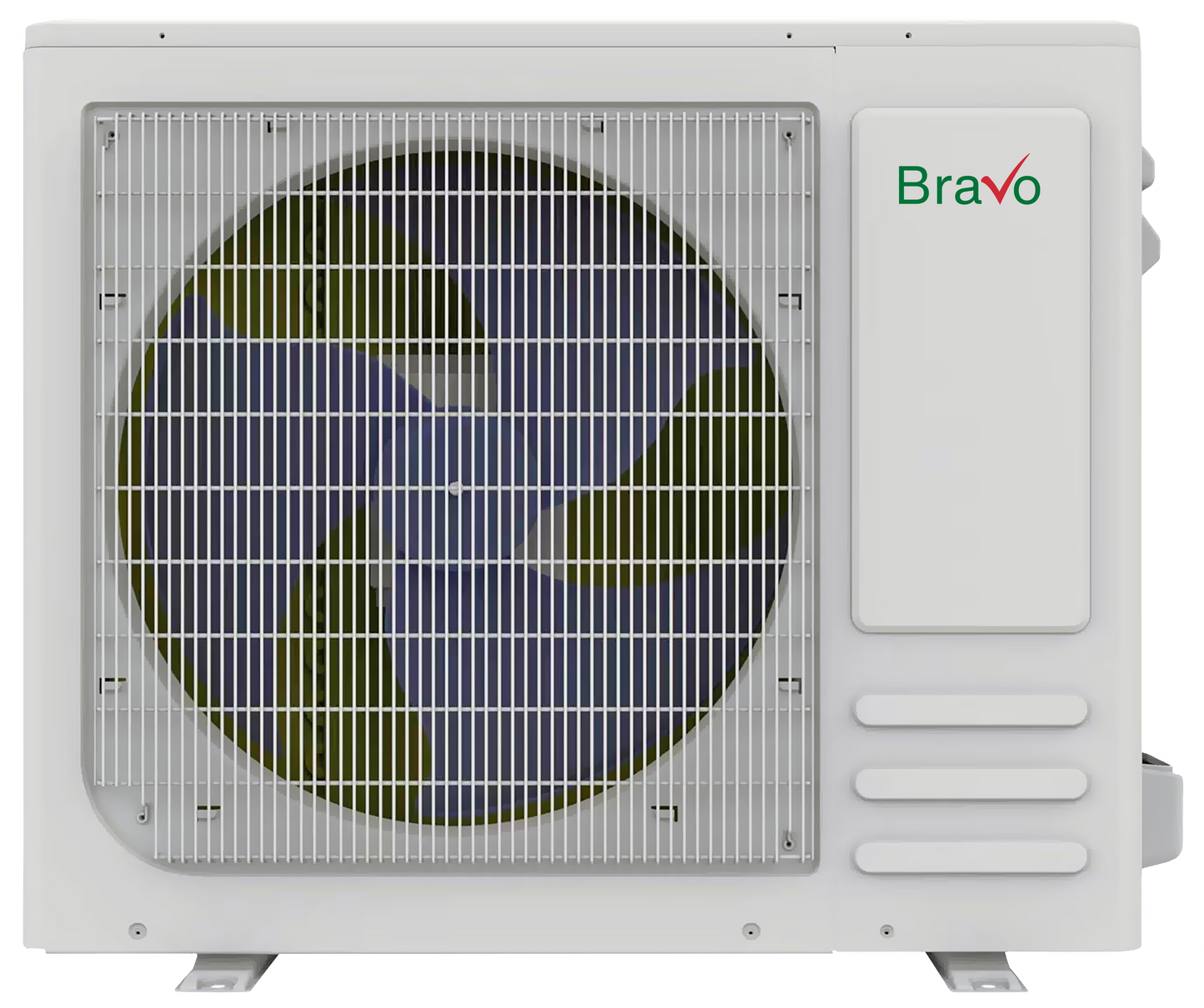

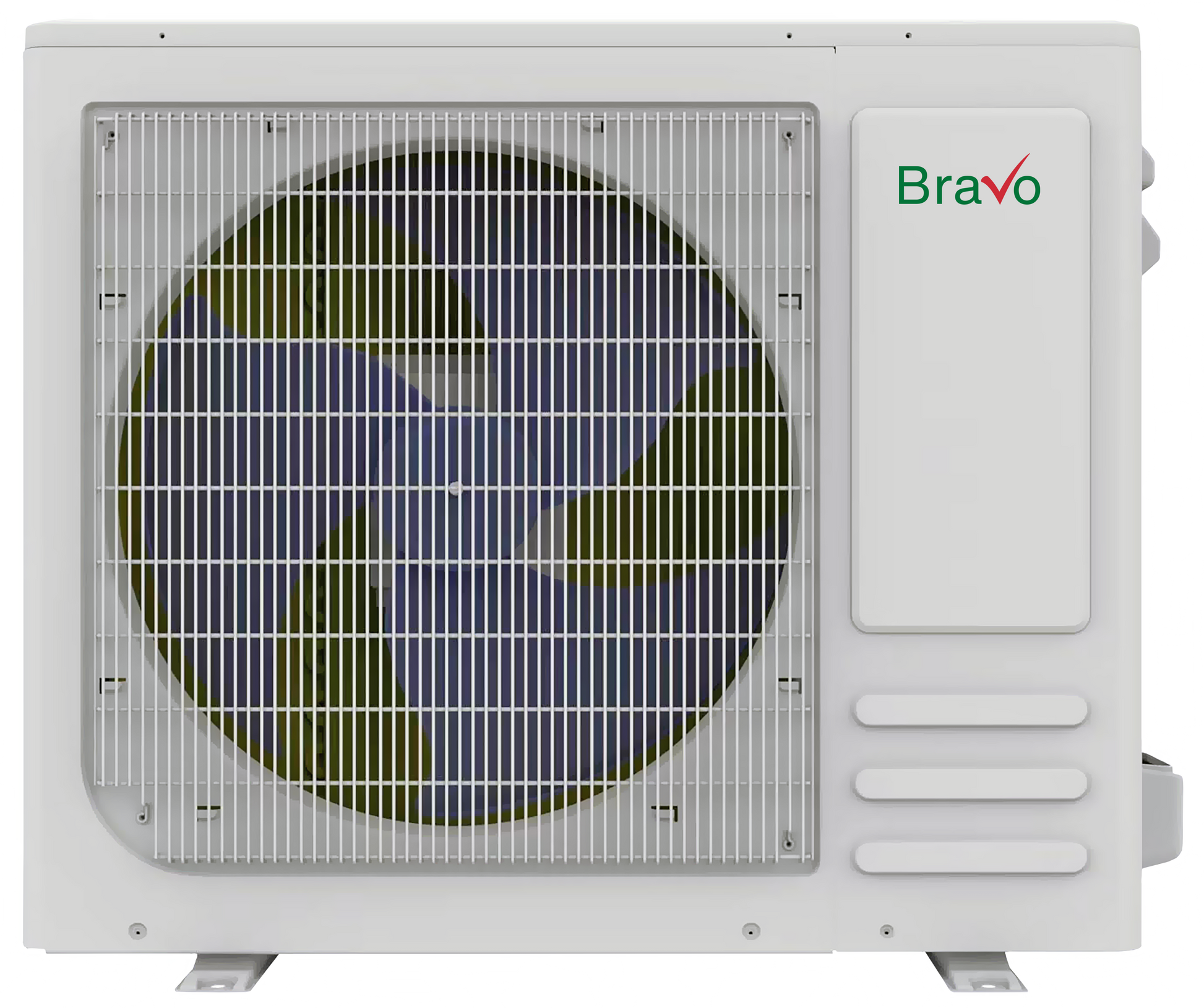

- Outdoor unit: BRV-SD24HI-230VO

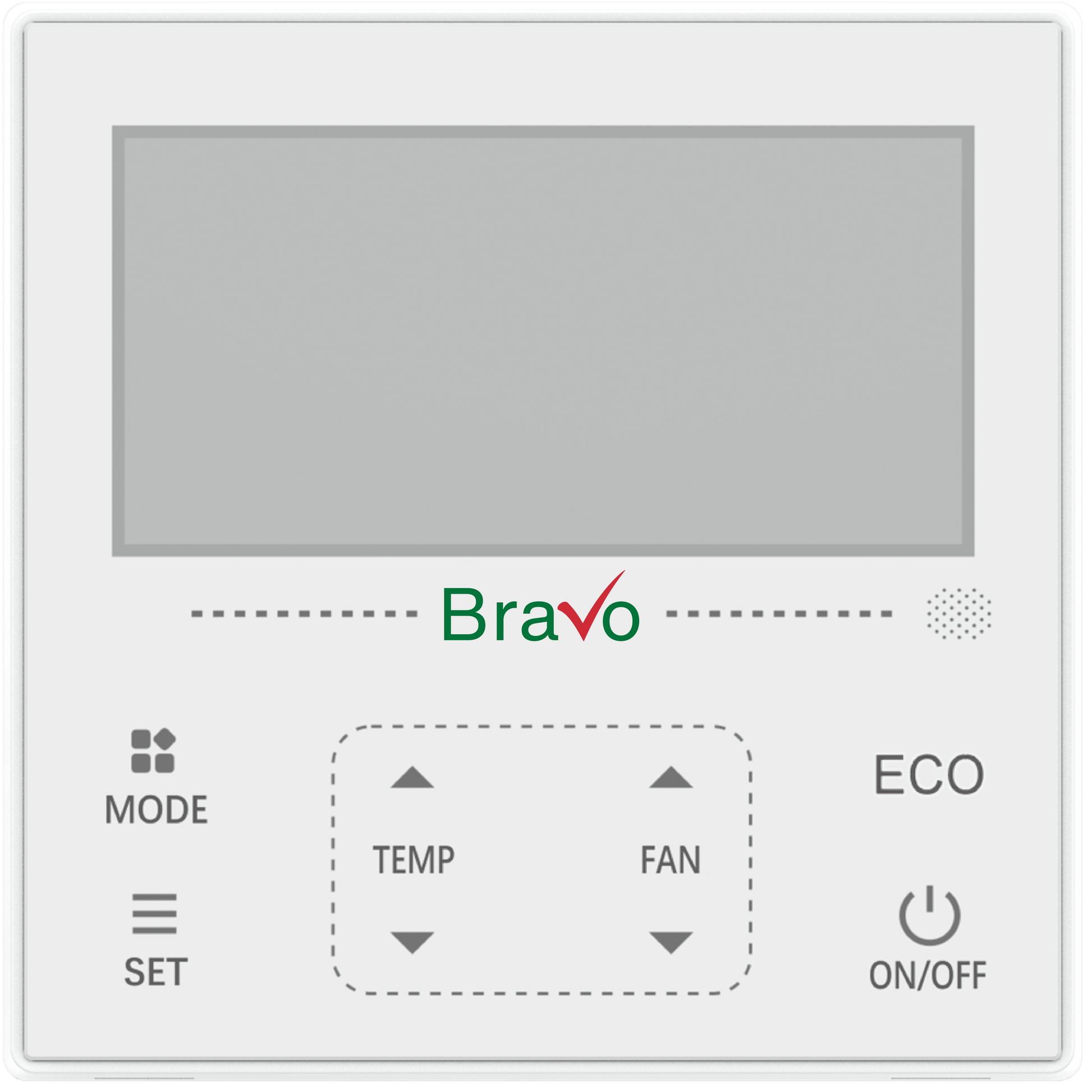

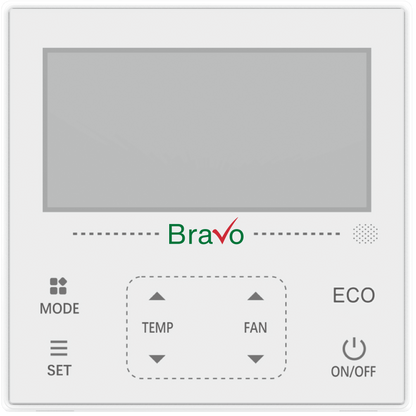

- Wired controller
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-MP24AHUW-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Communication wiring | AWG 25x3 |
| Cooling capacity | 24,000 BTU/h (7,200 to 27,000) |
| Cooling input | 2,308 W (530 to 2,870) |
| Cooling rated current | 10.5 A (3.4 to 12.6) |
| EER / EER2 | 10.4 |
| SEER / SEER2 | 17.7 |
| Heating capacity at 47°F | 26,000 BTU/h (7,100 to 30,000) |
| Heating input at 47°F | 2,265 W (440 to 2,730) |
| Heating rated current at 47°F | 10 A (2.4 to 12) |
| COP | 3.4 W/W |
| Indoor fan motor qty | 1 |
| Indoor fan motor input | 249 W |
| Indoor fan motor RLA | 2.6 A |
| Indoor air flow | 867 / 618 CFM |
| ESP range | 0 to 0.8 in. w.g. |
| Indoor noise level | 45 / 34 dB(A) |
| Dehumidification | 2.64 L/H |
| Unit dimensions (W x D x H) | 17-33/64 x 21-1/32 x 45 in. |
| Packed dimensions (W x D x H) | 20-55/64 x 26-37/64 x 46-17/64 in. |
| Net / gross weight | 114 / 127 lbs |
| Drain connection | 3/4 in. |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Design pressure | 609 / 174 PSIG |
| Controller | Wired controller |
| Room temperature range, cooling | 60 to 90°F |
| Room temperature range, heating | 60 to 90°F |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-SD24HI-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Minimum circuit ampacity | 20 A |
| Maximum fuse | 25 A |
| Compressor model | KTM240D57UMT |
| Compressor type | Rotary |
| Compressor capacity | 24,000 BTU/h |
| Compressor input | 2,308 W (530 to 2,870) |
| Compressor rated current (RLA) | 2.00 A |
| Refrigerant oil | VGA74 / 22.6 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor input | 75 W |
| Outdoor fan motor RLA | 2.00 A |
| Outdoor airflow (max) | 2,000 CFM |
| Outdoor noise level (max) | 55 dB(A) |
| Throttle type | Capillary |
| Unit dimensions (W x D x H) | 36-1/32 x 25-19/32 x 13-37/64 in. |
| Packed dimensions (W x D x H) | 40-5/32 x 28-15/16 x 17-1/8 in. |
| Net / gross weight | 84 / 92 lbs |
| Refrigerant type | R32 |
| Factory precharge | 24.6 ft |
| Additional charge for 3/8 in. liquid pipe | 0.52 oz |
| Refrigerant piping | 3/8 in. liquid, 3/4 in. gas |
| Maximum pipe length | 164 ft |
| Maximum level difference | 82 ft |
| Ambient range, cooling | 5 to 131°F |
| Ambient range, heating | -4 to 75°F |
Important
Professional installation is recommended. Verify electrical requirements, auxiliary heat compatibility, line set sizing, and control compatibility before installation.
