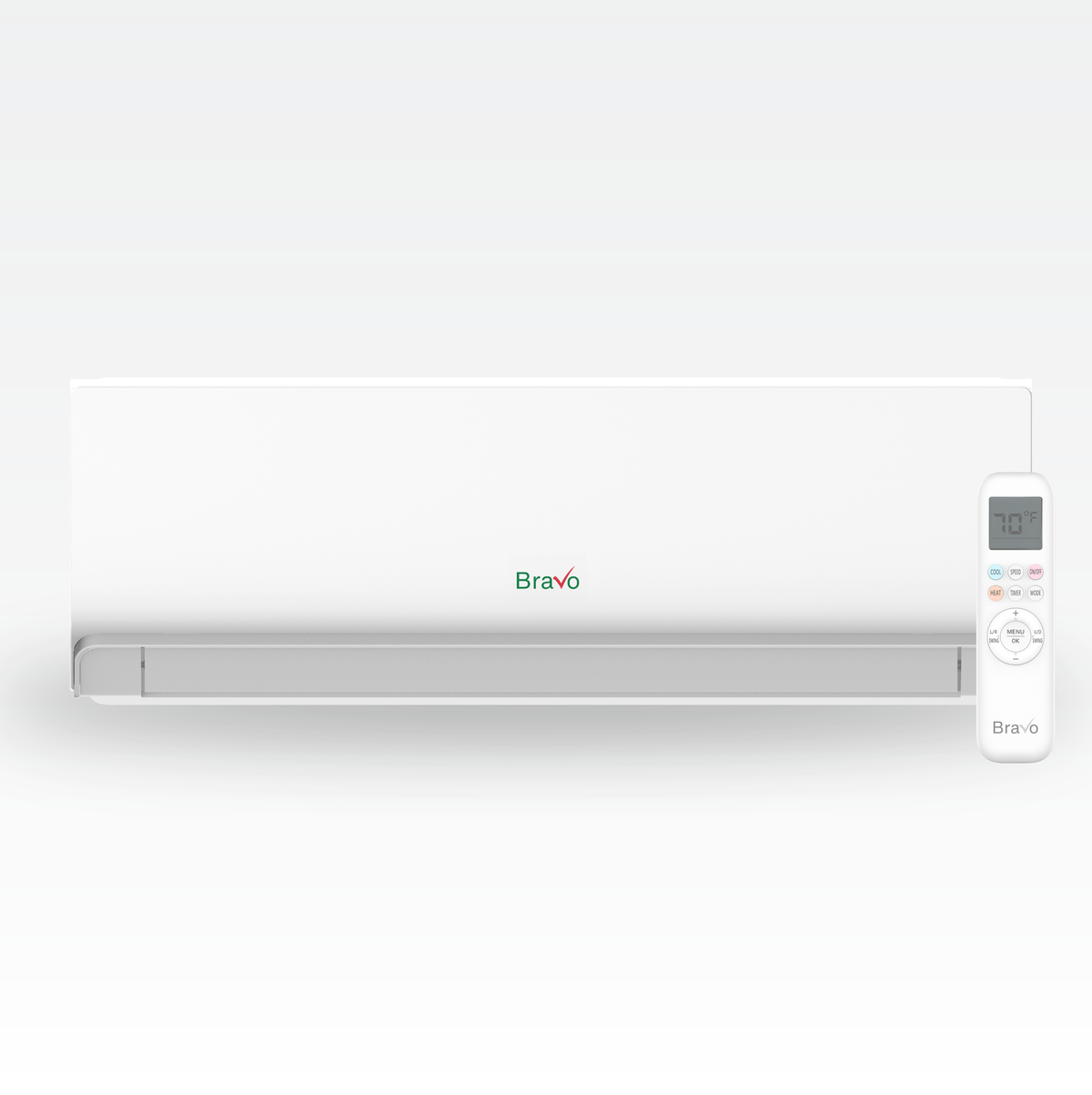

Bravo Milano Wall Mount Ductless Mini Split AC & Heat Pump – 9000 BTU
Everyday heating and cooling with a clean, wall-mounted design.
Configure your system
Model: BRV-M09WM-230VI
Certified and supported
Product resources. Clear support. Lasting peace of mind.
R32
Refrigerant by model
Inverter technology
Variable-speed comfort
Smart App
Compatible systems
Certifications, coatings, refrigerant and connected features vary by model and matched system. Verify your exact equipment in the product documentation.
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Welcome to MILANO
Many rooms. One considered system.Inspired by Milan's modern approach to living. Build a matched multi-zone system around the rooms that matter to you.
Explore MILANO Italian design. Real comfort.Product description
BRAVO MILANO — Wall-Mount Indoor Unit
Bravo Milano Ductless Mini Split AC & Heat Pump – 9,000 BTU 230V, up to SEER2 22, Wall-Mount Unit, Inverter, Heating & Cooling
9,000 BTU 230V wall-mounted indoor unit for Bravo Milano multi-zone systems. Inverter-driven comfort, quiet operation, and smart app control, with system ratings up to SEER2 22 when paired with compatible outdoor condensers.
Performance & comfort features
BRAVO – More than a compliment!
- Wall-mounted indoor unit for bedrooms, living areas, home offices, and more
- Inverter technology for consistent temperature and energy savings (system up to 22 SEER2)
- Remote control included for easy in-room adjustments
- Smart App control: connect and control from anywhere
- Sleek matte finish that blends into modern interiors
- Turbo / Super mode for rapid cooling or heating
- Silent function for ultra-quiet operation
- Comfortable Sleep Mode with gentle temperature transitions
- Eco Mode for reduced power consumption
- Multiple fan speeds for fine-tuned airflow
- Timer function for scheduled on/off
- Louver auto swing / horizontal auto swing for even air distribution
- Self-cleaning / anti-mildew mode to help keep the coil cleaner
- Follow Me function (senses temperature near the remote)
- Activated carbon filter to help improve indoor air quality
- LED display with clear status indication
At-a-glance
Wall-mount mini split head
9,000 BTU
208–230V, 1Ph, 60Hz
40 dB(A)
353 CFM
1/4" (liquid) / 3/8" (gas)
Watch: About BRAVO
What’s included
- Indoor wall-mount unit — BRV-M09WM-230VI (9,000 BTU 230V Bravo Milano indoor unit)
- Wireless remote control
- Installation manual
- User’s manual
- Manufacturer limited warranty
Optional pre-flared 99% copper installation kit (16 ft, 25 ft, or 50 ft) must be selected above. Kit includes copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories.
Other Bravo Milano indoor wall-mount units
| Capacity | SKU / Product link |
|---|---|
| 9,000 BTU | BRV-M09WM-230VI |
| 12,000 BTU | BRV-M12WM-230VI |
| 18,000 BTU | BRV-M18WM-230VI |
| 24,000 BTU | BRV-M24WM-230VI |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (must be installed by a licensed HVAC technician)
Registration is required within 60 days of installation and can be completed online or by phone. See manufacturer documentation for full terms and conditions.
Technical specifications — Indoor unit (BRV-M09WM-230VI)
| Power supply | 208–230V, 1Ph, 60Hz |
|---|---|
| Cooling capacity | 9,000 BTU/h |
| Heating rated capacity | 9,000 BTU/h |
| Max fuse | 5 A |
| Indoor airflow | 353 CFM |
| Indoor noise level | 40 dB(A) |
| Unit dimensions (W×D×H) | 31.02 × 11.50 × 7.80 in |
| Packing dimensions (W×D×H) | 34.65 × 14.57 × 11.42 in |
| Net / gross weight | 17.6 / 22.0 lbs |
| Refrigerant piping (liquid / gas) | 1/4" / 3/8" |
| Operating temperature range (indoor) | 60.8–89.6°F |
Important installation notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
The installation kit is necessary for the system to function. This kit includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Certifications
Manuals & downloads
Full description
Expand
The Bravo Milano Multi-Zone Wall-Mounted Mini Split System offers a stylish and efficient way to heat and cool individual rooms. Ideal for bedrooms, living areas, home offices, and more, the wall-mounted unit is designed for fast installation and quiet operation while blending seamlessly into your room’s decor.
With a range of capacities from 9K to 24K Btu/h, Bravo Milano wall-mounted heads provide precise climate control tailored to the size of your space. Inverter technology helps maintain steady indoor temperatures while reducing energy consumption, and the integrated SMART APP allows full control from compatible smart devices.
Rated in systems up to 24 SEER2, the Bravo Milano wall-mounted lineup delivers dependable, energy-efficient performance and personalized comfort season after season when paired with matching outdoor condensers and properly sized installation kits.
Specifications & dimensions
CERTIFICATION & TECHNOLOGY
Technology for your comfort.
Features and marks identified in this product’s catalog information.
Certifications and listings apply to qualifying models and matched systems. Refrigerants, coatings and connected features vary by model. Check product documentation for your exact configuration.
Support beyond the purchase.
Eligible BRAVO systems: 7-year compressor and 5-year parts limited warranty. Professional installation and registration within 60 days are required. Review full terms and exclusions.
