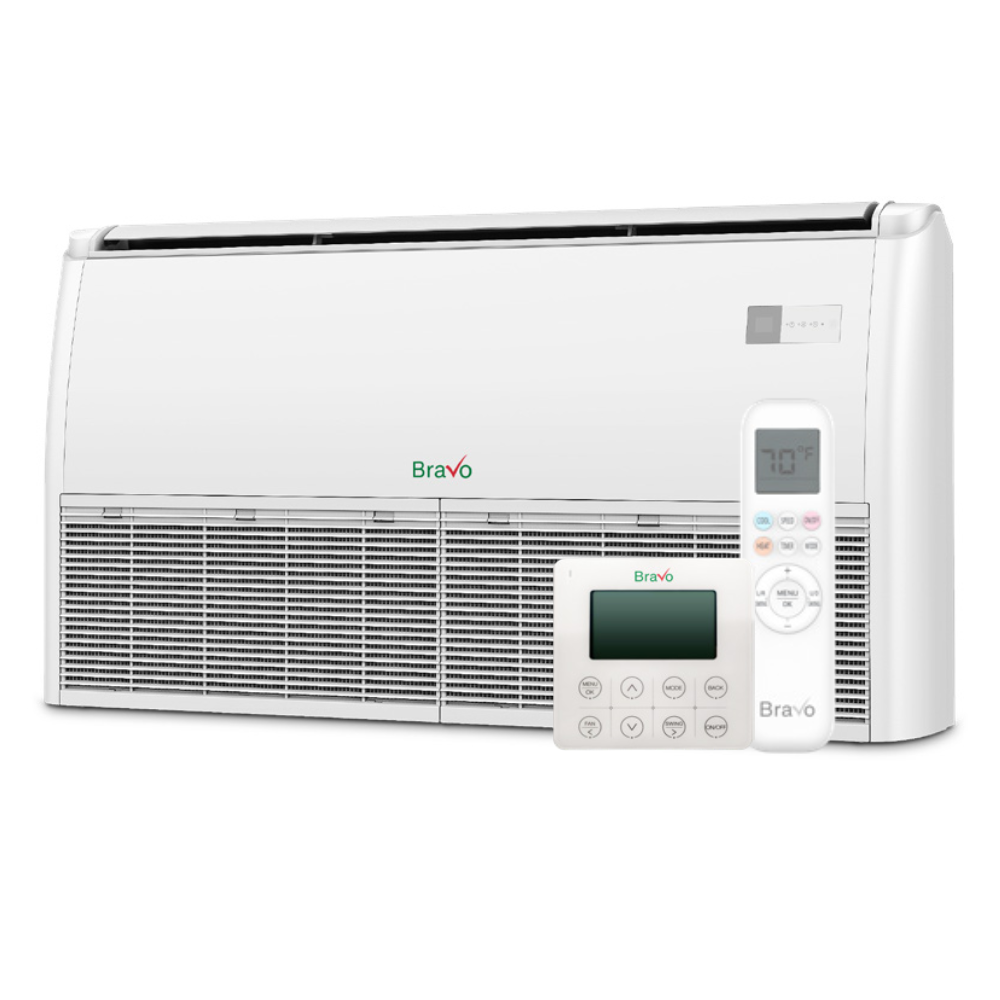

Bravo Milano Universal Floor Ceiling Ductless Mini Split AC & Heat Pump – 12000 BTU

SKU:BRV-M12FC-230VI

$612.00 USD

Sale Sold out

Shipping calculated at checkout.

Installation Kit No Installation Kit 16FT Installation Kit 25FT Installation Kit 50FT Installation Kit

View full details

Product Description

BRAVO MILANO — Universal Floor/Ceiling (UFC)

Bravo Milano UFC 12,000 BTU — Floor/Ceiling Inverter (230V) · BRV-M12FC-230VI

Ductless mini split indoor unit for flexible low-wall (floor) or ceiling installation. Quiet operation, thermostat-ready, and designed for focused room comfort.

Universal floor/ceiling mount 12,000 BTU capacity 208–230V • 1Ph • 60Hz Wireless remote & thermostat Low noise 39 dB(A)

Performance features

Universal cabinet — mounts on floor (low wall) or ceiling
Wireless remote control included
Wall thermostat included/compatible for precise setpoint
Multiple fan speeds with wide 500 CFM airflow
Auto restart after power interruption
Quiet operation — as low as 39 dB(A)

At-a-glance

Capacity
12,000 Btu/h (cool)

Heating
12,000 Btu/h

Airflow
500 CFM

Noise
39 dB(A)

Watch: Product Overview

What’s included

UFC Indoor Unit: BRV-M12FC-230VI
Wireless Remote Control
Wall Thermostat (included for UFC models)
Mounting hardware & manuals

For warranty coverage, installation by a licensed HVAC professional may be required; see documentation.

Technical specifications

Indoor Model	BRV-M12FC-230VI
Power Supply (V-Ph-Hz)	208–230 / 1 / 60
Cooling Rated Capacity (Btu/h)	12,000
Heating Rated Capacity (Btu/h)	12,000
Max Fuse (A)	5
Indoor Air Flow (CFM)	500
Indoor Noise Level (dB[A])	39
Dimensions (W×D×H, in)	39.37 × 27.17 × 9.25
Packing (W×D×H, in)	42.52 × 30.32 × 12.80
Net / Gross Weight (lb)	57.3 / 67.2
Refrigerant Piping (Liquid / Gas)	1/4″ / 3/8″
Operating Temperature Range (°F)	60.8 – 89.6

Documents

Warranty

3-Year Compressor • 3-Year Parts

See current Bravo terms for coverage details and any registration or licensed-install requirements at Bravo .

Full description

Tap to expand

The Bravo Milano UFC 12,000 BTU indoor unit is a universal floor/ceiling solution built for spaces that need flexible placement and quiet performance. Delivering up to 500 CFM of airflow with a low 39 dB(A) sound level, it’s ideal for living areas, offices, or studios. The unit ships with a wireless remote and wall thermostat, and pairs with compatible Bravo Milano outdoor condensers for reliable year-round comfort.
