BRAVO MILANO — Slim Duct Indoor Unit
Bravo Milano Ducted Mini Split AC & Heat Pump – 12,000 BTU 230V, SEER2 24, Slim Duct Unit, Inverter, Heating & Cooling
12,000 BTU 230V Multi-zone slim duct indoor unit for concealed Bravo Milano installations. Designed for above-ceiling or in-wall projects where only grilles are visible, delivering quiet, efficient heating and cooling up to SEER2 24 when paired with compatible outdoor condensers.
Performance & comfort features
BRAVO – More than a compliment!
- Concealed slim duct indoor unit for a clean, minimalist room aesthetic
- Ideal for bedrooms, living rooms, home offices, and other Multi-zone applications
- Inverter technology for stable temperatures and improved efficiency (system up to SEER2 24)
- Remote control included for convenient local adjustments
- Smart App: connect and control from compatible smartphones or tablets
- Multiple fan speeds for fine-tuned airflow and comfort
- Comfortable Sleep Mode for gentle overnight temperature control
- Super / Turbo mode for rapid heating or cooling when needed
- Eco Mode for reduced power consumption
- Timer function for scheduled start/stop
- Silent / low-noise operation suitable for quiet spaces
- Anti-mildew / self-cleaning functions to help protect the indoor coil
- Louver auto swing (via duct/grille configuration) for more even air distribution
- Follow Me function (temperature sensing at the remote location)
- Activated carbon filter to help improve indoor air quality
- LED display and clear operating status indicators
At-a-glance
Slim duct / concealed unit
12,000 BTU/h
12,000 BTU/h
208–230V, 1Ph, 60Hz
34 dB(A)
353 CFM
1/4" (liquid) / 3/8" (gas)
Above ceiling / in-wall (grilles visible)
Watch: Bravo Milano slim duct overview
What’s included

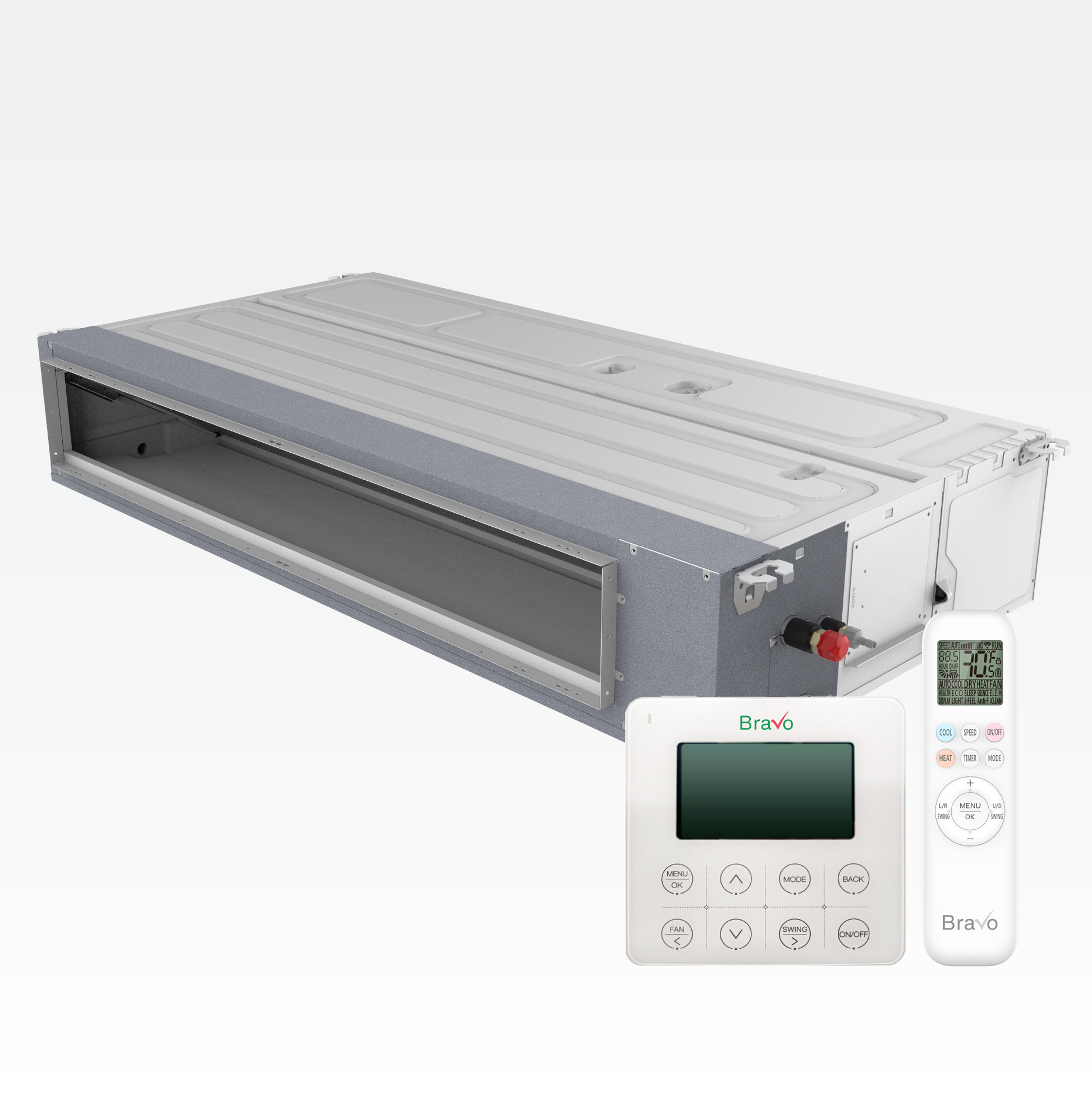

- Indoor slim duct unit — BRV-M12DT-230VI (12,000 BTU 230V Bravo Milano concealed ducted unit)
- Wireless remote control
- Installation manual
- User’s manual
- Manufacturer limited warranty
Optional pre-flared 99% copper installation kit (16 ft, 25 ft, or 50 ft) must be selected above. Kit includes copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories.
Other Bravo Milano slim duct units
| Capacity | SKU / Search this model |
|---|---|
| 9,000 BTU | BRV-M09DT-230VI |
| 12,000 BTU | BRV-M12DT-230VI |
| 18,000 BTU | BRV-M18DT-230VI |
| 24,000 BTU | BRV-M24DT-230VI |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (must be installed by a licensed HVAC technician)
Registration is required within 60 days of installation and can be completed online or by phone. See manufacturer documentation for full terms and conditions.
Technical specifications — Indoor slim duct unit (BRV-M12DT-230VI)
| Indoor model | BRV-M12DT-230VI |
|---|---|
| Power supply | 208–230V, 1Ph, 60Hz |
| Cooling capacity | 12,000 BTU/h |
| Heating rated capacity | 12,000 BTU/h |
| Max fuse | 5 A |
| Indoor airflow | 353 CFM |
| Indoor noise level | 34 dB(A) |
| Unit dimensions (W×D×H) | 27.56 × 17.72 × 7.80 in |
| Packing dimensions (W×D×H) | 34.25 × 21.30 × 10.24 in |
| Net / gross weight | 27.6 / 33.1 lbs |
| Refrigerant piping (liquid / gas) | 1/4" / 3/8" |
| Operating temperature range (indoor) | 60.8–89.6°F |
Important installation notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
The installation kit is necessary for the system to function. This kit includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Certifications
Performance data / additional features
- Sleek matte finish for discreet installations
- Turbo function for rapid conditioning
- Silent function for low-noise operation
- LED display for clear system status
- Horizontal auto swing (via duct/grille configuration)
- Programmable timer
- Comfortable Sleep Mode
- Multiple fan speeds
- Self-cleaning function
- Follow Me function (remote-based temperature sensing)
- Activated carbon filter for enhanced air quality
Manuals & downloads
Full description
Expand
The Bravo Milano Slim Duct Mini Split System provides a hidden yet highly effective climate control option for individual rooms. Engineered for concealed installations above ceilings or within walls, only the air grilles remain visible—ideal for customers who prefer a clean, minimalist interior aesthetic.
Available in 9K, 12K, 18K, and 24K Btu/h capacities, the slim duct system delivers reliable heating and cooling with flexible airflow routing options. The integrated SMART APP allows convenient control from smartphones or tablets, and automatic operation helps adjust performance based on room conditions.
Combining quiet performance, a SEER2 rating of up to 24, and efficient year-round operation, the Bravo Milano Slim Duct lineup is a smart choice for customized comfort in virtually any space when matched with the proper outdoor unit and installation accessories.
