MILANOSlim Duct
Bravo Milano Series 5-Zone Ducted Mini Split AC & Heat Pump -- 42000 BTU (3.5 Ton), Slim Duct Units (12K+12K+12K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling
Discreet heating and cooling for a cleaner, more comfortable space.
Shipping and returns
Standard delivery: $29 below $300; free on eligible orders of $300 or more. New, unused equipment: request a return within 30 days of delivery. RMA required; return freight, applicable outbound freight, and restocking fees apply. Open-box terms differ.
Ordinary returns: 10% restocking for unopened new items; 20%–50% for eligible opened or deformed packaging; 20% for eligible open-box returns. Applicable outbound and return freight are additional deductions. Claim exceptions are explained in the return policy.
Approved refunds: allow up to 10 business days after the authorized return is received, subject to inspection and eligibility.
Shipping details · Return termsConfigure your system

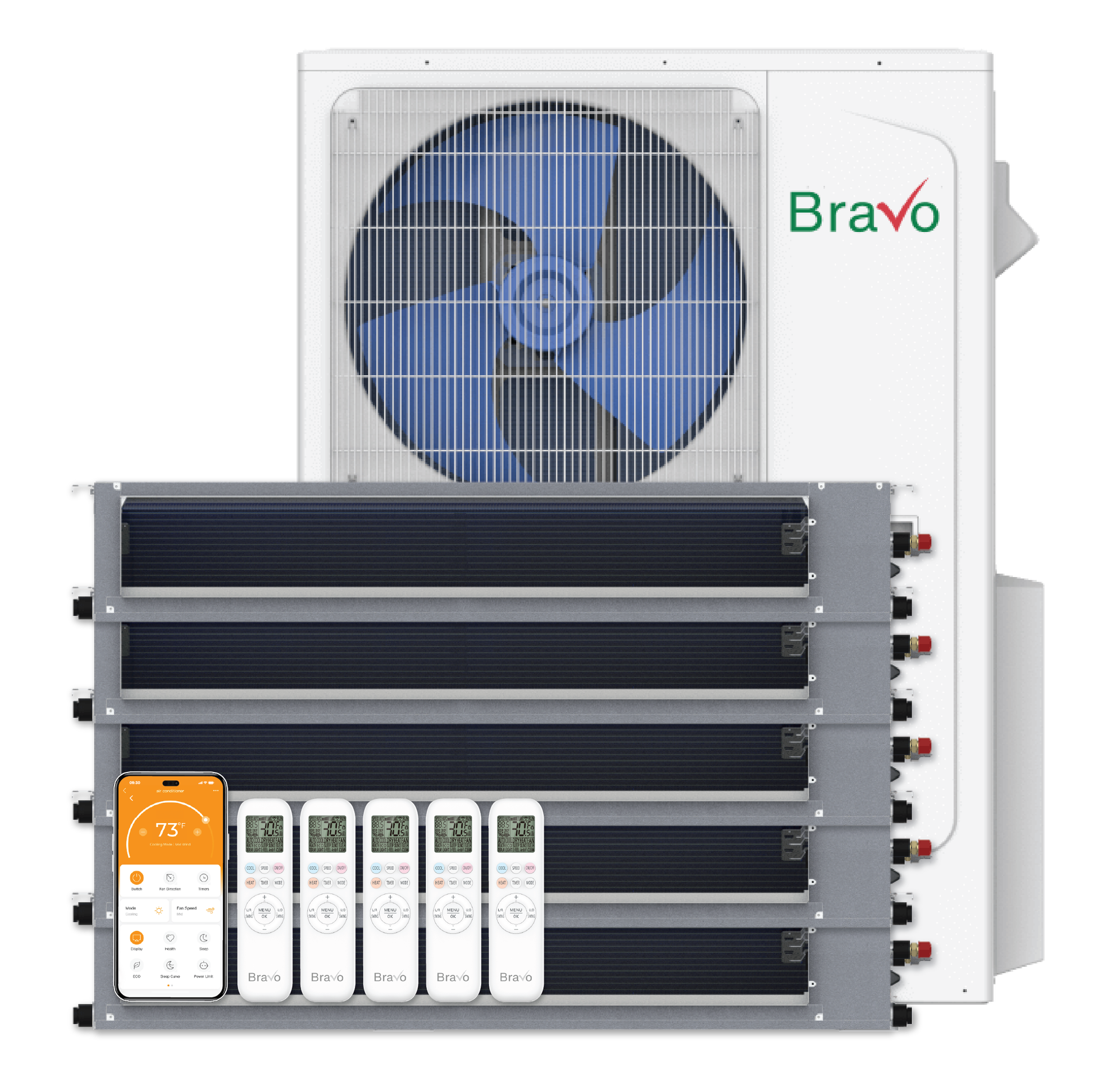

Model: BRV-M42-230VO + 5X BRV-M12DT-230VI
Certifications & technology
Product resources. Clear support. Lasting peace of mind.
AHRI
Matched-system ratings
Inverter
Variable-speed comfort
R32
Refrigerant by model
Blue Fin
Condenser coating
Smart App ready
Compatible systems
Certifications, coatings, refrigerant and connected features vary by model and matched system. Verify your exact equipment in the product documentation.
Built around your room
A few quick steps to find the right system for your space.
Match your space and heating or cooling needs.
Choose the indoor style that fits your room.
Check system compatibility and installation essentials.
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Welcome to MILANO
Many rooms. One considered system.Inspired by Milan's modern approach to living. Build a matched multi-zone system around the rooms that matter to you.
Explore MILANO Italian design. Real comfort.Product description
BRAVO MILANO — Slim Duct (Concealed)
Bravo Milano Series 5-Zone Ducted Mini Split AC & Heat Pump -- 42000 BTU (3.5 Ton), Slim Duct Units (12K+12K+12K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling
Concealed slim-duct indoor unit for out-of-sight comfort. Configuration: 5X BRV-M12DT-230VI. Outdoor capacity 42000 BTU. SEER2 up to 24.
Performance features
- Concealed, low-profile unit for ceilings, soffits, or above-closet installs
- Quiet operation with discreet supply and return
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Smart App connectivity for remote control
- Wall-mounted thermostat included for precise setpoint control
- Super Mode for rapid conditioning; Eco and Sleep modes for savings and comfort
- Multiple fan speeds, auto-swing*, and 24-hour timer
- Self-cleaning anti-mildew dry function
- Auto restart after power interruption
*Auto-swing availability depends on grille/duct configuration.
At-a-glance
5 rooms
42000
24
BRV-M42-230VO

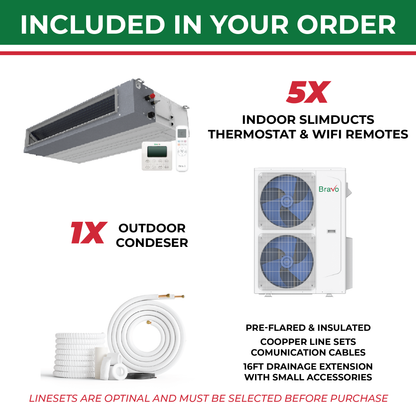

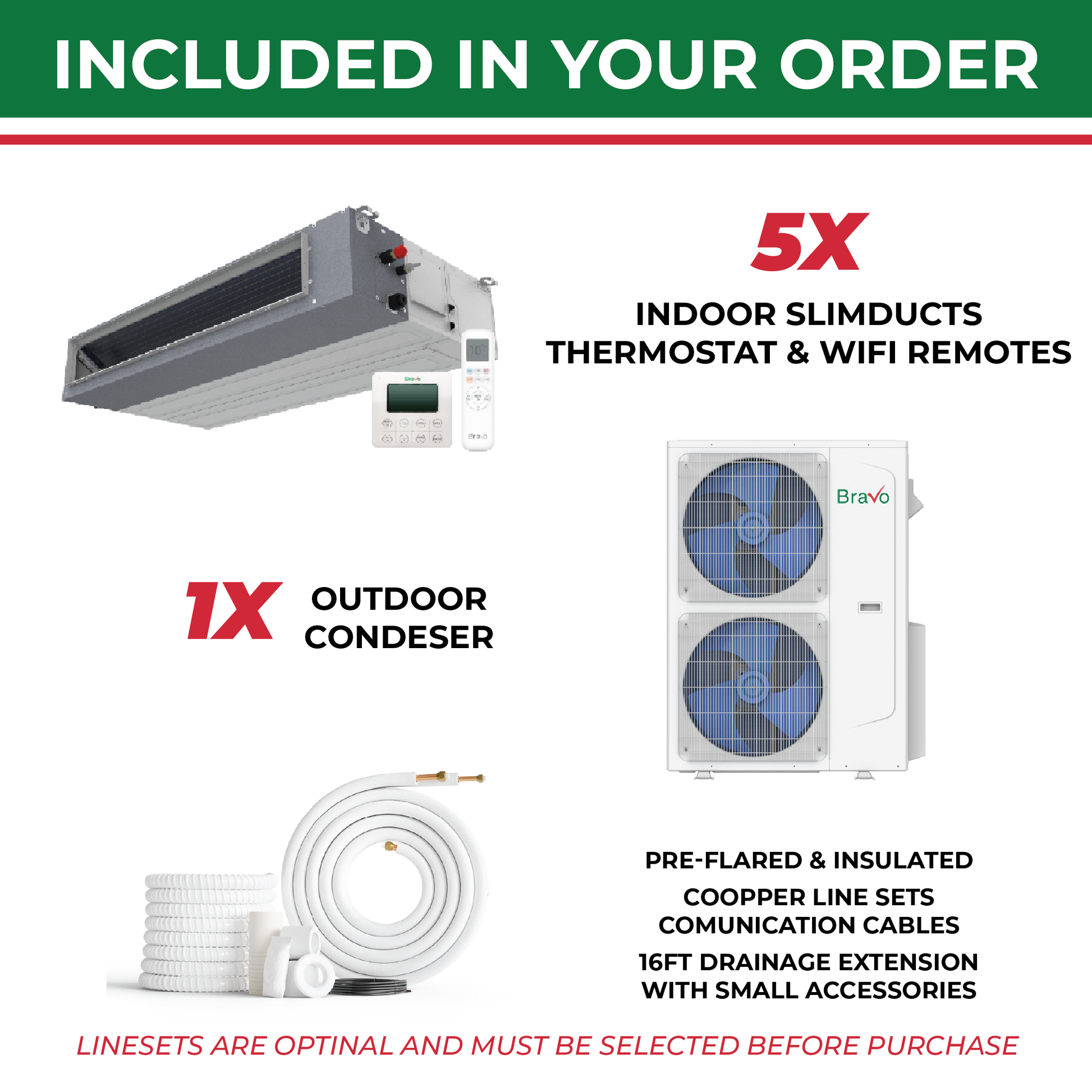

What’s included
- 12,000 BTU (5 pcs) - Model: BRV-M12DT-230VI
- Outdoor Condenser — BRV-M42-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wall-mounted thermostat, installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor

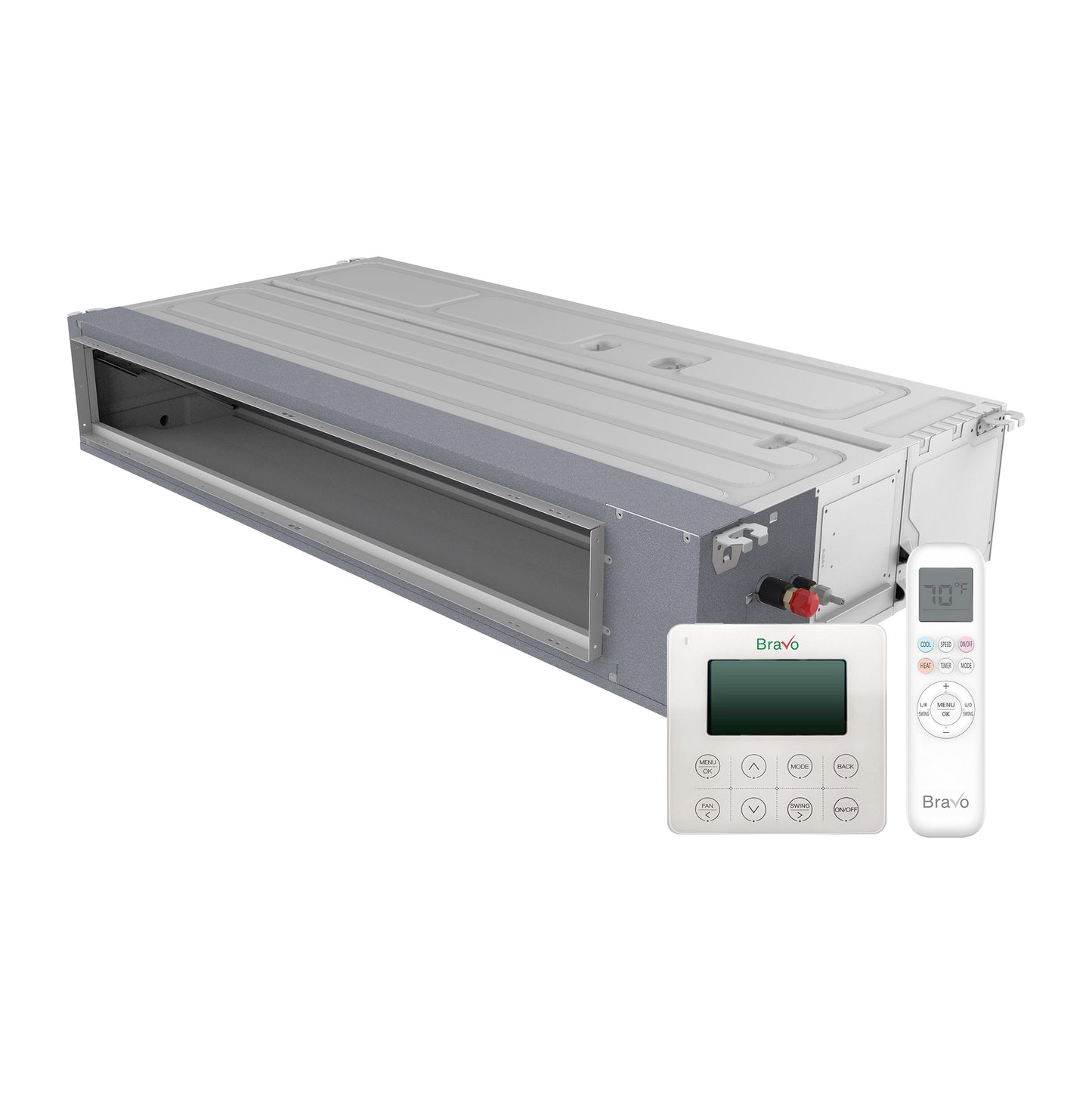

Indoor Unit: BRV-M12DT-230VI (12,000 BTU) x5
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 27.56×17.72×7.8 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 34.25×21.3×10.24 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 27.6/33.1 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 32/31/29 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | no filter |
| ESP | 0~0.1 |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 2.11 |
| Controller | wired controller |
| BTU Rated | 12,000 |
Technical specifications — Outdoor

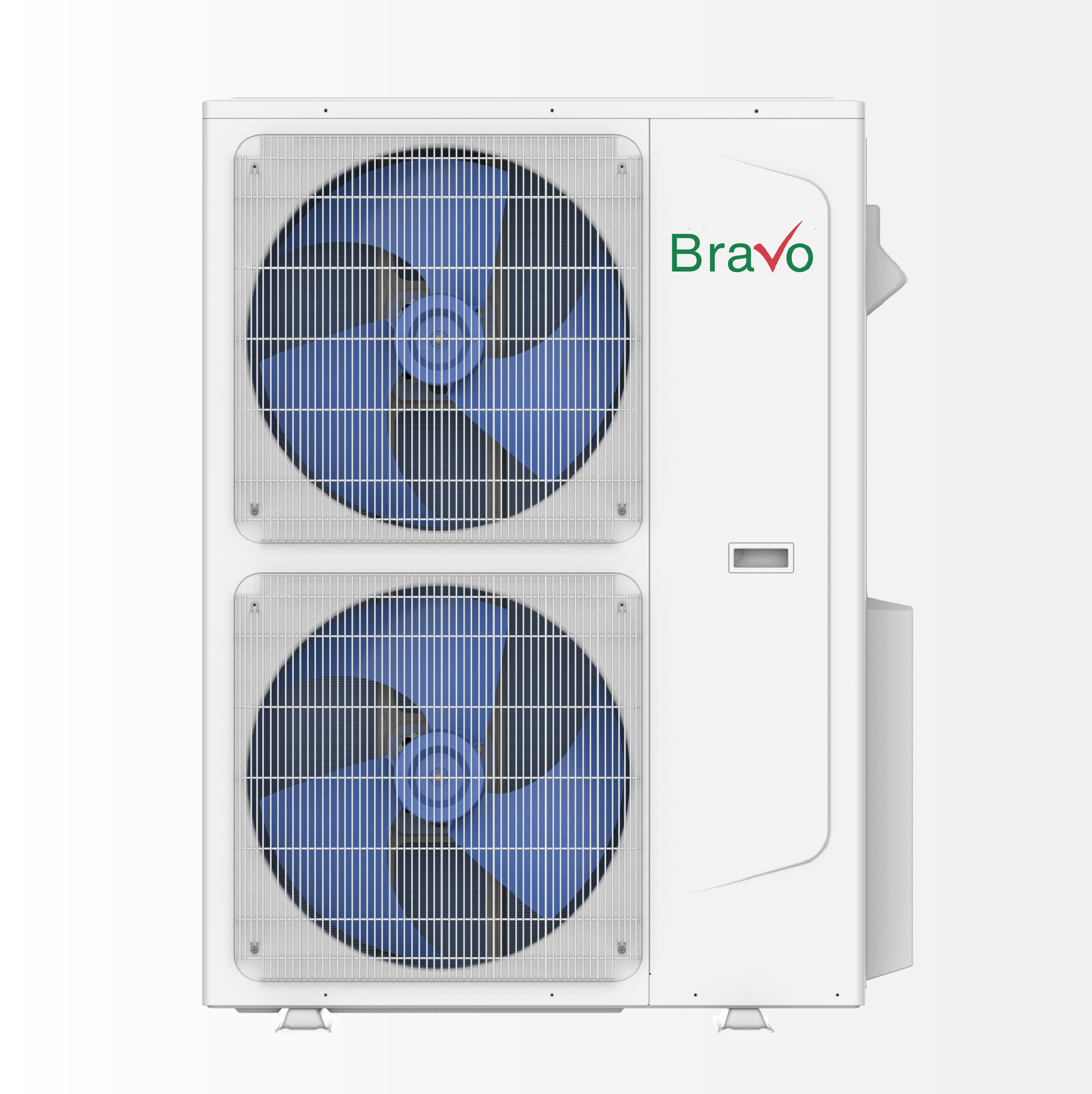

Outdoor Unit: BRV-M42-230VO (42,000 BTU)
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 39.80x15.75x51.97 |
| System type | Multi-zone unit |
| SEER2 up to | 24/22/23 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4"- 5x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 42.52x16.93x56.69 |
| Outdoor noise level (dB) | 60 |
| Outdoor air flow (CFM) | 4,235 |
| Net/Gross weight (lb) | 205.0/224.9 |
| Minimum circuit ampacity (A) | 32 |
| Max. fuse (A) | 45 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7.2/7.6 |
| HSPF2-4 | 10.5/10/10.25 |
| Heating capacity (Min/Max) (Btu/h) | 42,000 (8,450-46,000) |
| EER2 up to | 12.5/12.3/12.4 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/3.9/3.9 |
| Cooling capacity (Min/Max) (BTU/h) | 42,000 (8,350-46,000) |
| BTU Rated | 42,000 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Important

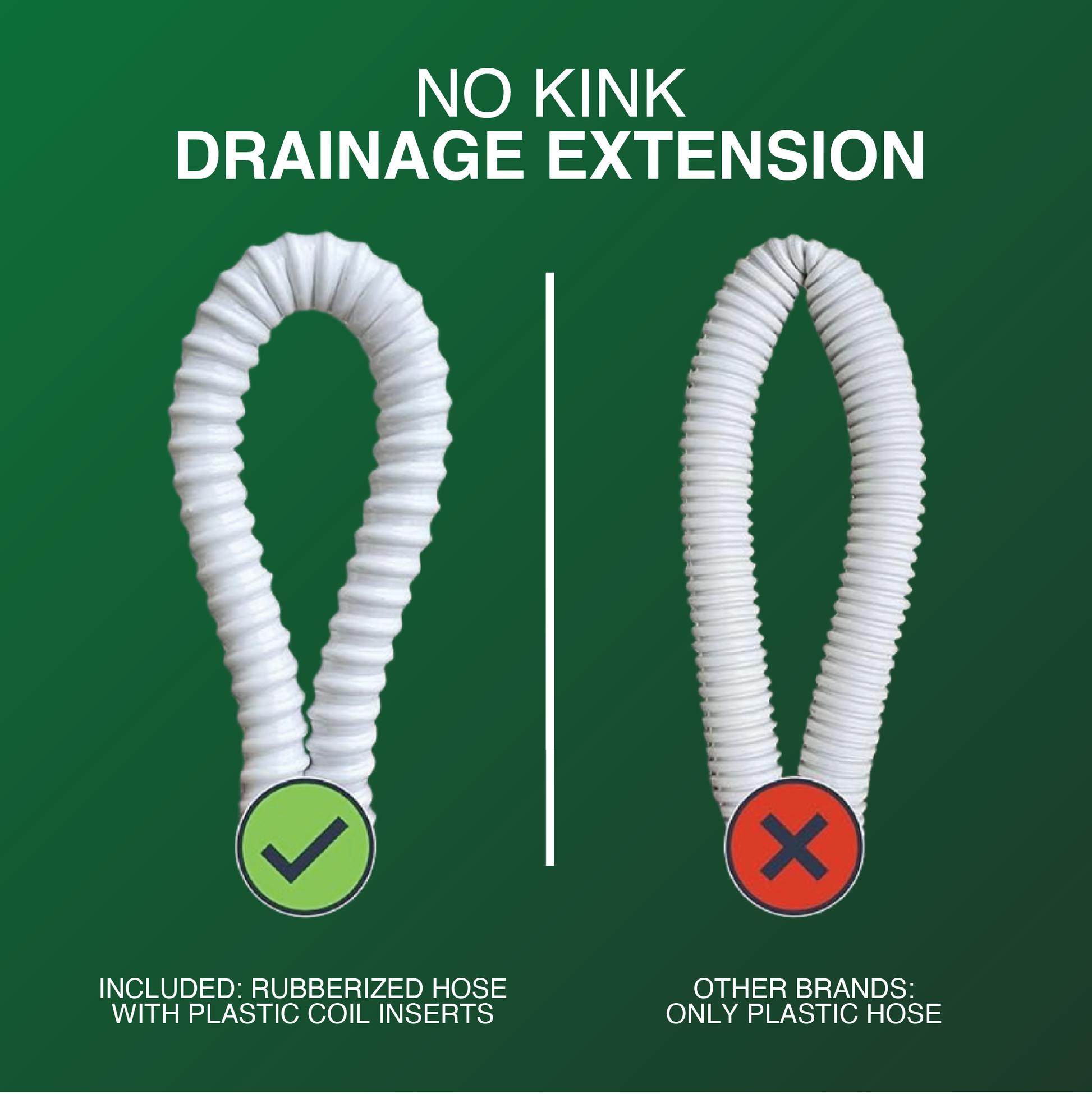

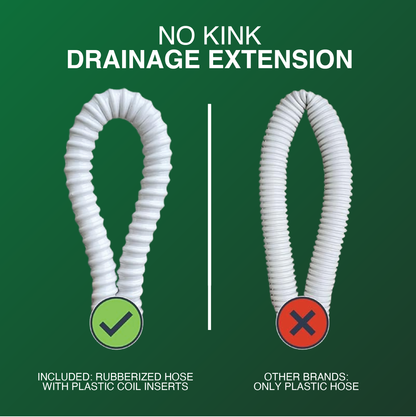

The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
Designed to disappear into your ceiling or wall, the Bravo Milano Slim Duct Unit delivers powerful performance in a compact, low-profile design. It is ideal for small bedrooms, home offices, hotel suites, and tucked-away retail spaces where visible equipment isn’t desired.
Built for multi-zone integration, the unit provides targeted heating and cooling using eco-conscious R32 refrigerant for efficient operation with a lower environmental impact. The slim, concealed form allows flexible installation in tight spaces such as drop ceilings, soffits, or above closets while maintaining quiet operation.
Equipped with a wall-mounted thermostat for precise in-room control and Smart App connectivity for remote adjustments, it’s easy to schedule, fine-tune, and monitor comfort. Choose multiple fan speeds, activate Super Mode for rapid temperature shifts, or switch to Eco Mode for savings. Sleep Mode, a 24-hour timer, and an anti-mildew dry function enhance comfort and air quality while operating quietly in the background.
With a minimalist footprint and tailored climate control, the Bravo Milano Slim Duct Unit fits spaces where room for equipment is limited but comfort is essential. Bravo: More Than a Compliment — It’s Comfort You’ll Never See Coming.
Specifications & dimensions
BRAVO / CERTIFICATION & TECHNOLOGY
Confidence in every detail.
Explore the certifications and technologies behind your BRAVO system, from matched-system performance to everyday control.
AHRI Certified
Performance ratings for the matched system.
R32 refrigerant
R32 refrigerant system.
Inverter technology
Variable-speed compressor technology.
Blue Fin condenser
Protective condenser coating.
Smart App ready
Compatible with smart-app control.
Certifications and listings apply to qualifying models and matched systems. Refrigerants, coatings and connected features vary by model. Check product documentation for your exact configuration.
BRAVO limited warranty
Support beyond the purchase.
Eligible BRAVO systems: 7-year compressor and 5-year parts limited warranty. Professional installation and registration within 60 days are required. Review full terms and exclusions.
