MILANOUniversal Floor/Ceiling
Bravo Milano Series 2-Zone Ductless Mini Split AC & Heat Pump -- 36000 BTU (3.0 Ton), Universal Floor Ceiling Units (12K+18K) BTU, Inverter Technology, 230V, Heating & Cooling
Flexible indoor comfort for spaces that need another approach.
Shipping and returns
Standard delivery: $29 below $300; free on eligible orders of $300 or more. New, unused equipment: request a return within 30 days of delivery. RMA required; return freight, applicable outbound freight, and restocking fees apply. Open-box terms differ.
Ordinary returns: 10% restocking for unopened new items; 20%–50% for eligible opened or deformed packaging; 20% for eligible open-box returns. Applicable outbound and return freight are additional deductions. Claim exceptions are explained in the return policy.
Approved refunds: allow up to 10 business days after the authorized return is received, subject to inspection and eligibility.
Shipping details · Return termsConfigure your system
Model: BRV-M36-230VO + BRV-M12FC-230VI + BRV-M18FC-230VI
Certifications & technology
Product resources. Clear support. Lasting peace of mind.
AHRI
Matched-system ratings
Inverter
Variable-speed comfort
R32
Refrigerant by model
Blue Fin
Condenser coating
Smart App ready
Compatible systems
Certifications, coatings, refrigerant and connected features vary by model and matched system. Verify your exact equipment in the product documentation.
Built around your room
A few quick steps to find the right system for your space.
Match your space and heating or cooling needs.
Choose the indoor style that fits your room.
Check system compatibility and installation essentials.
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Welcome to MILANO
Many rooms. One considered system.Inspired by Milan's modern approach to living. Build a matched multi-zone system around the rooms that matter to you.
Explore MILANO Italian design. Real comfort.Product description

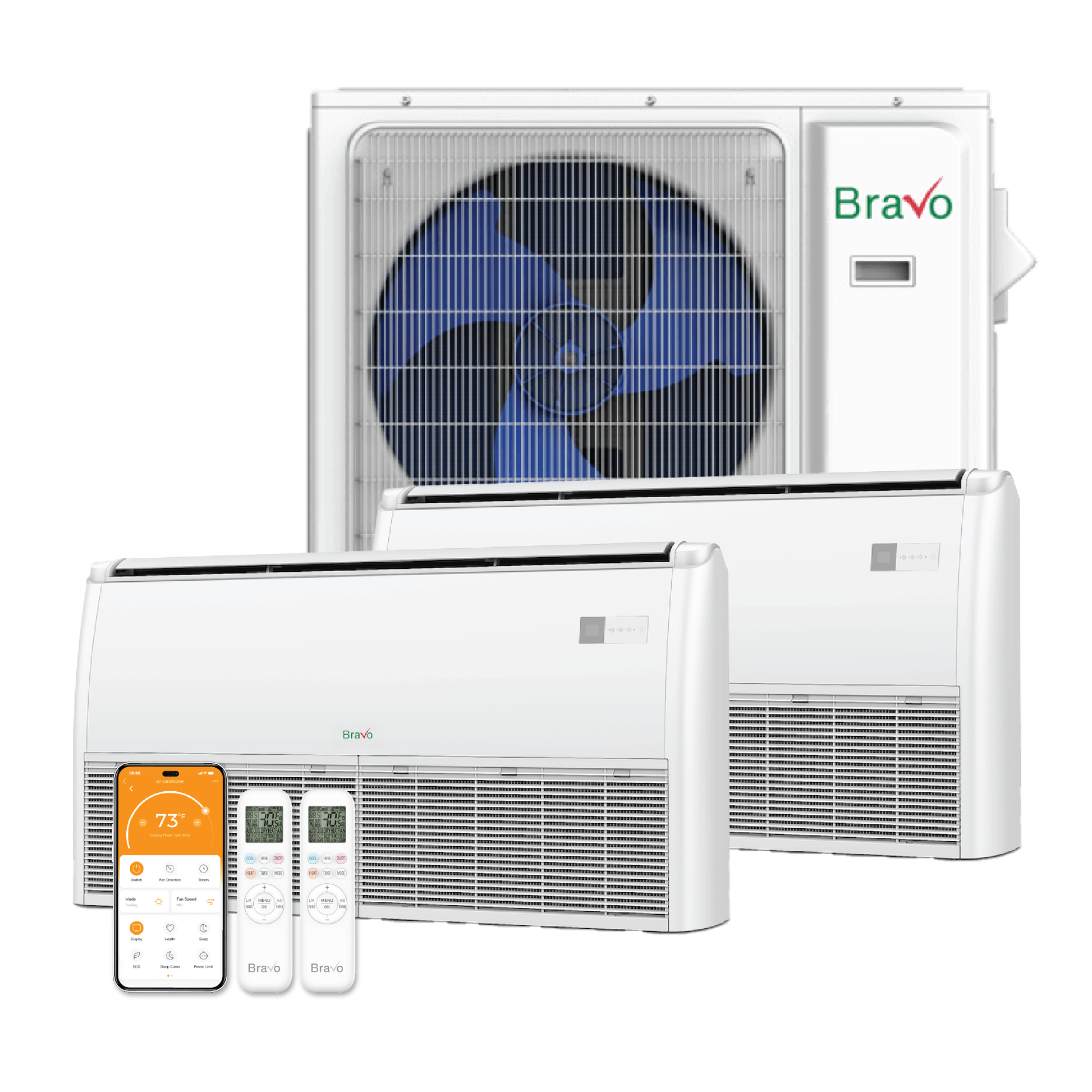

BRAVO MILANO — Universal Floor/Ceiling (UFC)
Bravo Milano Series 2-Zone Ductless Mini Split AC & Heat Pump -- 36000 BTU (3.0 Ton), Universal Floor Ceiling Units (12K+18K) BTU, Inverter Technology, 230V, Heating & Cooling
UFC indoor cabinet for low-wall or ceiling mount. Configuration: BRV-M12FC-230VI + BRV-M18FC-230VI. Outdoor capacity 36000 BTU. SEER2 up to 23.
Performance features
- Universal cabinet — floor (low wall) or ceiling
- Wireless remote control included
- Thermostat compatible for precise setpoint
- Multiple fan speeds, strong airflow
- Auto restart after power interruption
- Quiet operation
At-a-glance
2 rooms
36000
23
BRV-M36-230VO
What’s included
- 12,000 BTU (1 pcs) - Model: BRV-M12FC-230VI
- 18,000 BTU (1 pcs) - Model: BRV-M18FC-230VI
- Outdoor Condenser — BRV-M36-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor

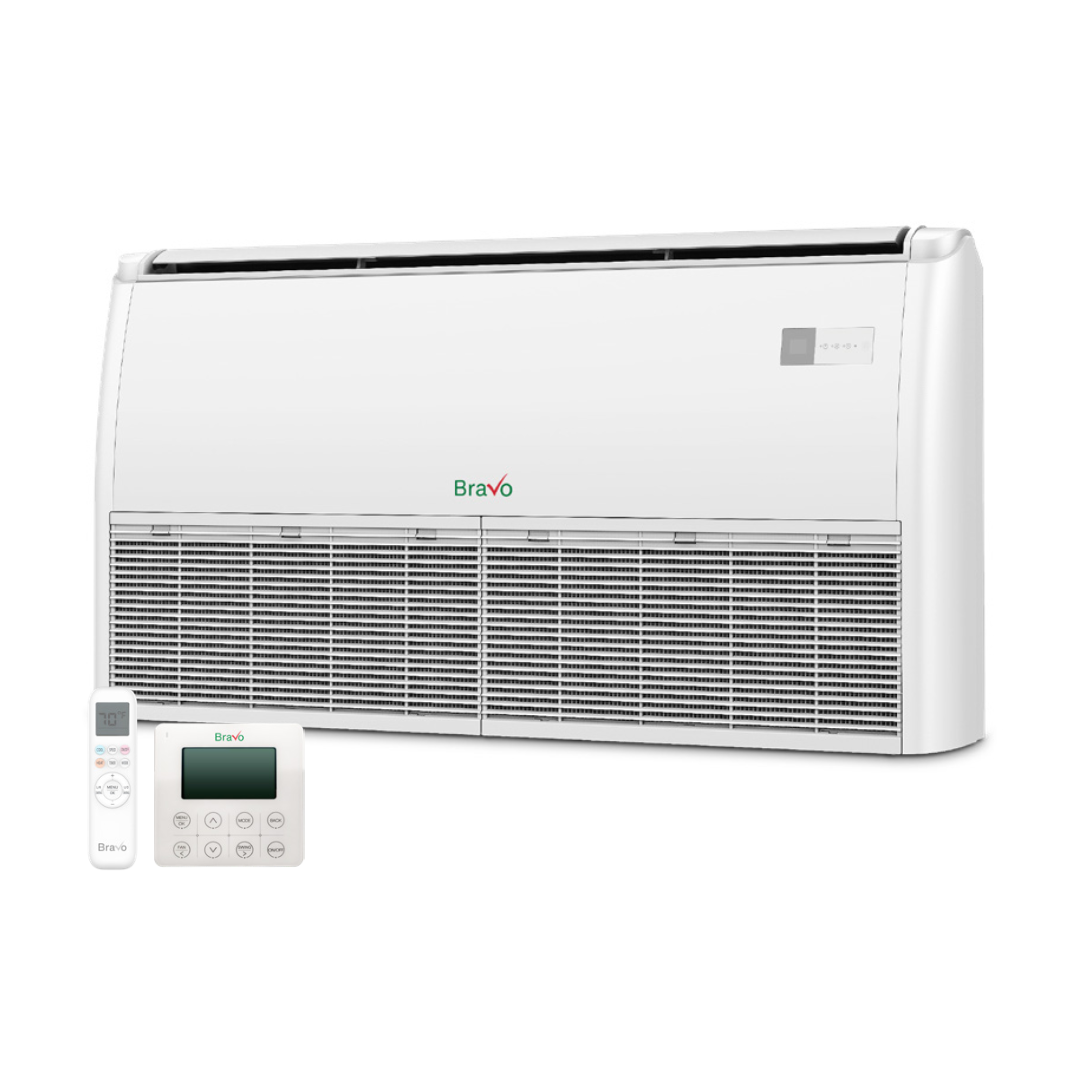

Indoor Unit: BRV-M12FC-230VI (12,000 BTU) x1
| brand name | BRAVO |
|---|---|
| series | Milano Universal Floor/Ceiling |
| model | BRV-M12FC-230VI |
| short description | Bravo Milano 12,000 BTU Universal Floor/Ceiling Indoor Unit |
| unit type | Ductless Mini-Split Indoor Unit |
| equipment type | Floor/Ceiling |
| tonnage | 1 |
| cooling capacity (BTU) | 12000 |
| heating capacity (BTU) | 12000 |
| voltage (V) | 208/230 |
| phase | 1 |
| cycle (Hz) | 60 |
| max fuse breaker (a) | 5 |
| indoor air flow (cfm) | 500 |
| indoor noise level (dba) | 39 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| operating temperature range (°f) | 60.8–89.6 |
| net width (in) | 39.37 |
| net depth (in) | 27.17 |
| net height (in) | 9.25 |
| packing width (in) | 42.52 |
| packing depth (in) | 30.32 |
| packing height (in) | 12.80 |
| net weight (lbs) | 57.3 |
| gross weight (lbs) | 67.2 |
Indoor Unit: BRV-M18FC-230VI (18,000 BTU) x1
| brand name | BRAVO |
|---|---|
| series | Milano Universal Floor/Ceiling |
| model | BRV-M18FC-230VI |
| short description | Bravo Milano 18,000 BTU Universal Floor/Ceiling Indoor Unit |
| unit type | Ductless Mini-Split Indoor Unit |
| equipment type | Floor/Ceiling |
| tonnage | 1.5 |
| cooling capacity (BTU) | 18000 |
| heating capacity (BTU) | 18000 |
| voltage (V) | 208/230 |
| phase | 1 |
| cycle (Hz) | 60 |
| max fuse breaker (a) | 5 |
| indoor air flow (cfm) | 530 |
| indoor noise level (dba) | 41 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
| operating temperature range (°f) | 60.8–89.6 |
| net width (in) | 39.37 |
| net depth (in) | 27.17 |
| net height (in) | 9.25 |
| packing width (in) | 42.52 |
| packing depth (in) | 30.32 |
| packing height (in) | 12.80 |
| net weight (lbs) | 59.5 |
| gross weight (lbs) | 69.5 |
Technical specifications — Outdoor

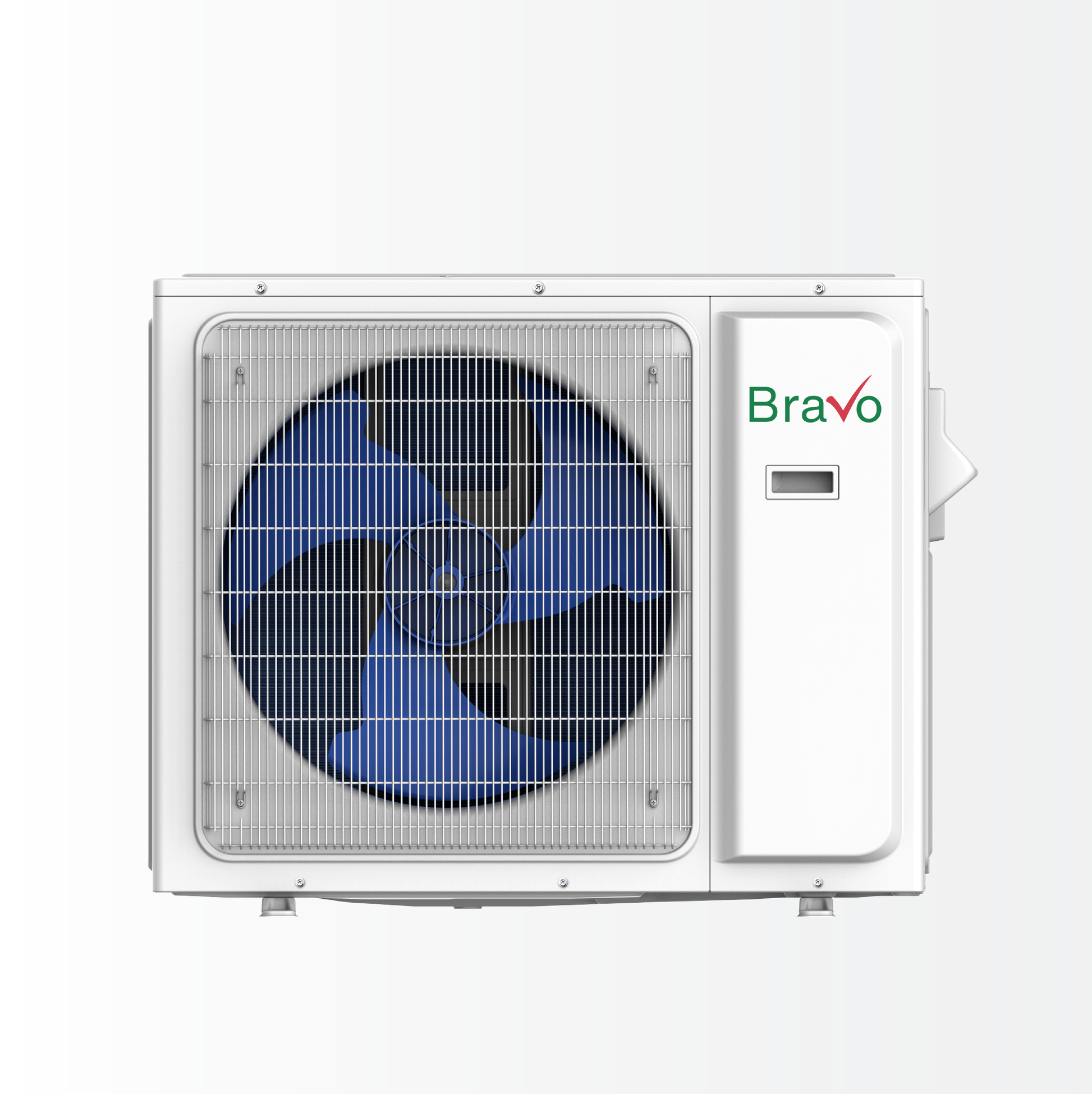

Outdoor Unit: BRV-M36-230VO (36,000 BTU)
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 41.18×17.91×31.81 |
| System type | Multi-zone unit |
| SEER2 up to | 23/20/21.5 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 4x1/4"- 4x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 43.50×19.49×34.84 |
| Outdoor noise level (dB) | 59 |
| Outdoor air flow (CFM) | 2,353 |
| Net/Gross weight (lb) | 154.3/163.1 |
| Minimum circuit ampacity (A) | 29 |
| Max. fuse (A) | 45 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 7.5/7/7.25 |
| Heating capacity (Min/Max) (Btu/h) | 36,000 (7,000-43,000) |
| EER2 up to | 12.3/11.6/11.95 |
| Dehumidification (Pnt/H) | / |
| COP | 4/3.9/3.95 |
| Cooling capacity (Min/Max) (BTU/h) | 36,000 (6,350-38,500) |
| BTU Rated | 36,000 |
| Ambient temperature - Heating (F) | -13~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Important
The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
UFC indoor units deliver even air distribution and flexible placement. Pair with compatible Bravo Milano outdoor condensers. Smart control and inverter performance support steady comfort for residential or light commercial spaces.
Specifications & dimensions
BRAVO / CERTIFICATION & TECHNOLOGY
Confidence in every detail.
Explore the certifications and technologies behind your BRAVO system, from matched-system performance to everyday control.
AHRI Certified
Performance ratings for the matched system.
R32 refrigerant
R32 refrigerant system.
Inverter technology
Variable-speed compressor technology.
Blue Fin condenser
Protective condenser coating.
Smart App ready
Compatible with smart-app control.
Certifications and listings apply to qualifying models and matched systems. Refrigerants, coatings and connected features vary by model. Check product documentation for your exact configuration.
BRAVO limited warranty
Support beyond the purchase.
Eligible BRAVO systems: 7-year compressor and 5-year parts limited warranty. Professional installation and registration within 60 days are required. Review full terms and exclusions.
