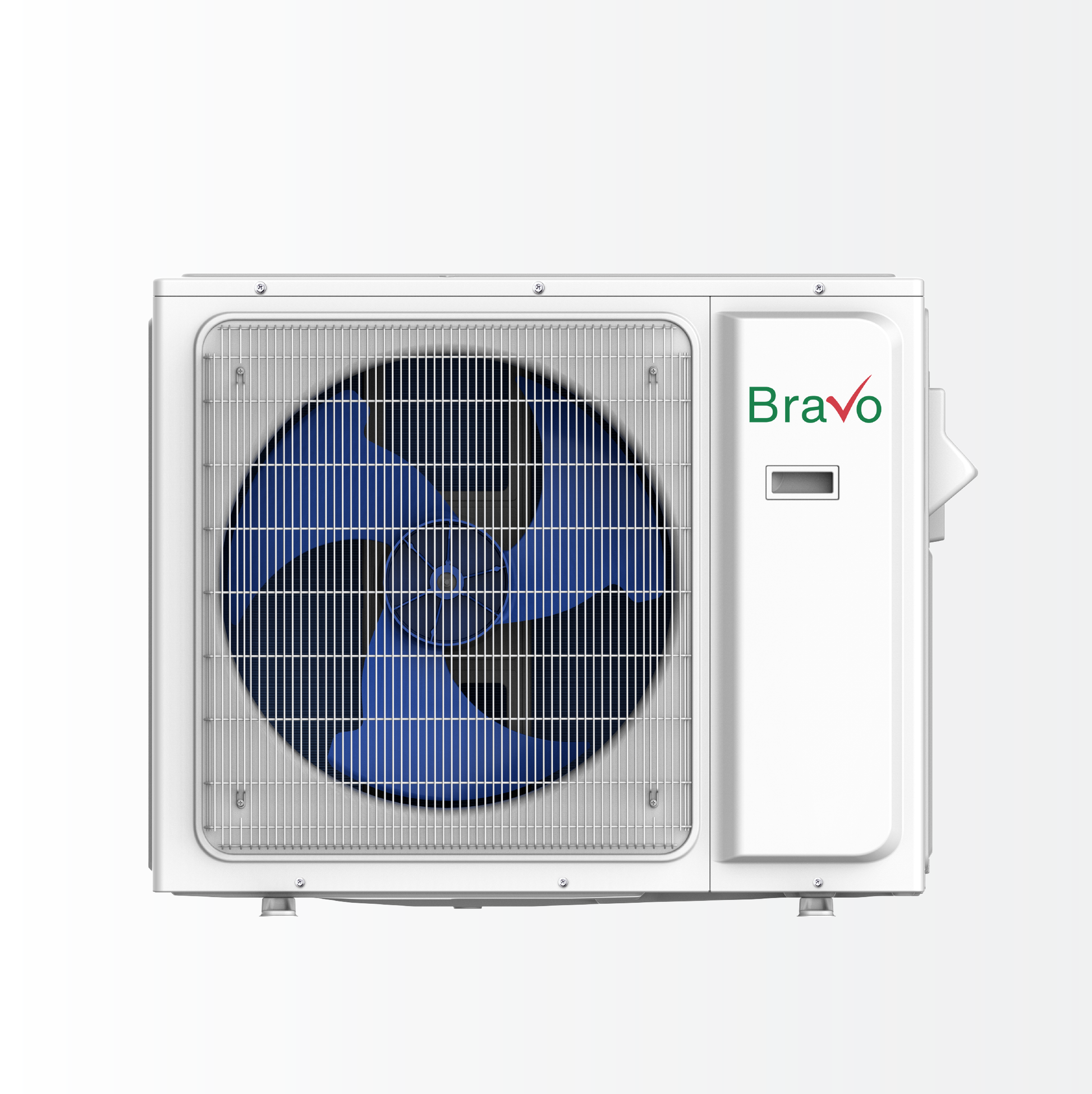

BRAVO MILANO — Multi-Zone Outdoor Condenser
Bravo Milano Multi-Zone Outdoor Condenser Unit — 18,000 BTU 230V, SEER2 22, Ductless Mini Split Heat Pump, Inverter, Heating & Cooling
2-zone outdoor heat pump condenser for compatible Bravo Milano indoor units (wall-mount, cassette, slim duct). 18,000 BTU 230V inverter system, rated up to 22 SEER2 for efficient heating and cooling.
Performance features
- Inverter technology for smooth, efficient modulation
- High SEER2 efficiency (up to 22) for reduced energy usage
- All-season heat pump operation (heating & cooling)
- Compatible with multiple indoor unit types (wall, cassette, slim duct)
- Quiet outdoor operation for residential or light commercial use
- Durable, weather-resistant outdoor casing
- Smart control capable when paired with compatible indoor units
- Fast and easy installation with matched Bravo Milano components
- Long line set capability for flexible layout (up to 82 ft)
At-a-glance
2-zone multi-zone condenser
18,000 BTU
22
208–230V, 1Ph, 60Hz
R32, 38.8 oz charge
Cooling: -13~125.6°F
Heating: -13~75.2°F
What’s included
- Outdoor unit — BRV-M18-230VO (18,000 BTU 230V Bravo Milano multi-zone outdoor condenser)
- Installation manual
- User’s manual
- Manufacturer limited warranty
Optional installation kit (required for operation) includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories when purchased.
Available capacities
| Capacity | SKU |
|---|---|
| 18,000 BTU | BRV-M18-230VO |
| 24,000 BTU | BRV-M24-230VO |
| 30,000 BTU | BRV-M30-230VO |
| 36,000 BTU | BRV-M36-230VO |
| 42,000 BTU | BRV-M42-230VO |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (must be installed by a licensed HVAC technician)
Registration is required within 60 days of installation and can be completed online or by phone. See manufacturer documentation for full terms and conditions.
Technical specifications — Outdoor condenser (BRV-M18-230VO)
| System type | Multi-zone outdoor unit (2 zones) |
|---|---|
| BTU capacity range | 3,800 – 19,800 BTU |
| Power source | 208–230V, 1Ph, 60Hz |
| SEER2 rating | 22 |
| Refrigerant type | R32 |
| Refrigerant volume | 38.8 oz |
| Operating temperature range (cooling) | -13~125.6°F |
| Operating temperature range (heating) | -13~75.2°F |
| Outdoor sound level | 54 dB(A) |
| Max refrigerant pipe length | 82 ft |
| Dimensions (W×D×H) | 34.65 × 13.90 × 21.93 in |
| Net / gross weight | 75.0 / 80.5 lbs |
Compatible indoor units for BRV-M18-230VO
Indoor unit specifications
| Model | Capacity (BTU) | Dimensions (W×D×H) | Noise level | Air flow (CFM) |
|---|---|---|---|---|
| BRV-M09WM-230VI | 9,000 | 31.02 × 11.50 × 7.80 in | 40 dB(A) | 353 |
| BRV-M12WM-230VI | 12,000 | 34.49 × 11.73 × 7.64 in | 42 dB(A) | 353 |
| BRV-M18WM-230VI | 18,000 | 38.82 × 12.40 × 8.86 in | 49 dB(A) | 618 |
Zone combinations (2 zones)
| 2-zone combinations |
|---|
| 9K + 9K |
| 9K + 12K |
| 12K + 12K |
Important installation notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
The installation kit is necessary for the system to function. This kit includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Full description
Expand
The Bravo Milano Multi-Zone Outdoor Condenser Unit is a high-efficiency, all-season solution designed for use with compatible Bravo Milano indoor units, including wall-mounted, ceiling cassette, and slim duct types. With capacities starting at 18,000 BTU and rated up to 22 SEER2, this 230V outdoor heat pump delivers powerful heating and cooling for two zones while keeping energy consumption low.
Inverter technology automatically adjusts performance to maintain steady indoor temperatures and maximize efficiency. Its durable, weather-resistant construction ensures reliable performance across a wide outdoor temperature range, and the quiet operation makes it suitable for residential homes or light commercial applications.
Whether you are upgrading an existing mini split system or designing a custom multi-zone layout, the Bravo Milano outdoor condenser offers flexible compatibility, dependable comfort, and straightforward installation when paired with matching Bravo Milano indoor units and accessories.
