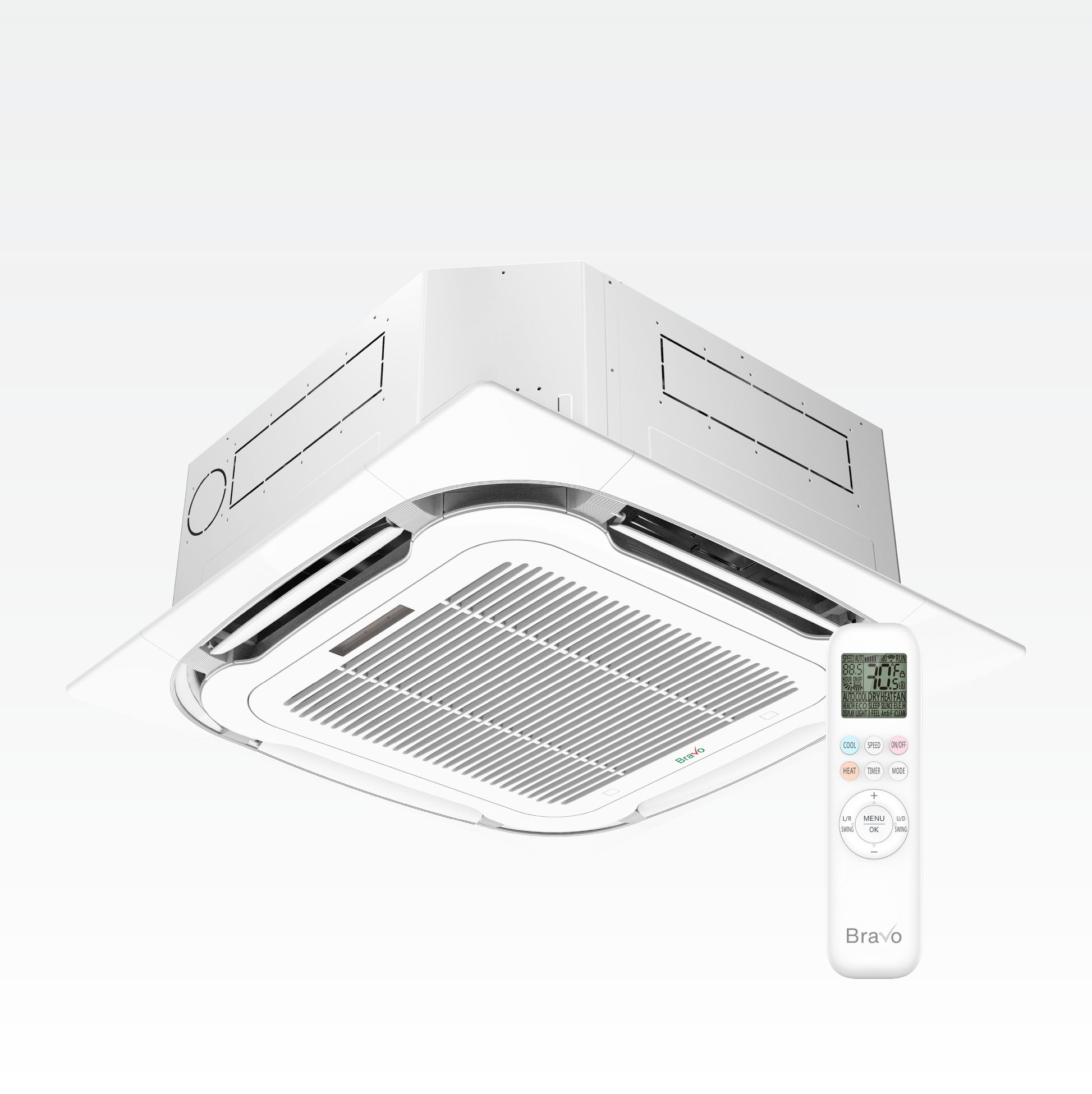

BRAVO MILANO — Ceiling Cassette Indoor Unit
Bravo Milano Ductless Mini Split AC & Heat Pump – 12,000 BTU 230V, Ceiling Cassette Unit, Inverter, Heating & Cooling
12,000 BTU 230V ceiling cassette indoor unit for Multi-zone Bravo Milano systems. Flush-mount design with 360° airflow helps deliver even, quiet comfort throughout mid-size rooms, with system ratings up to SEER2 24 when paired with compatible outdoor condensers.
Performance & comfort features
BRAVO – More than a compliment!

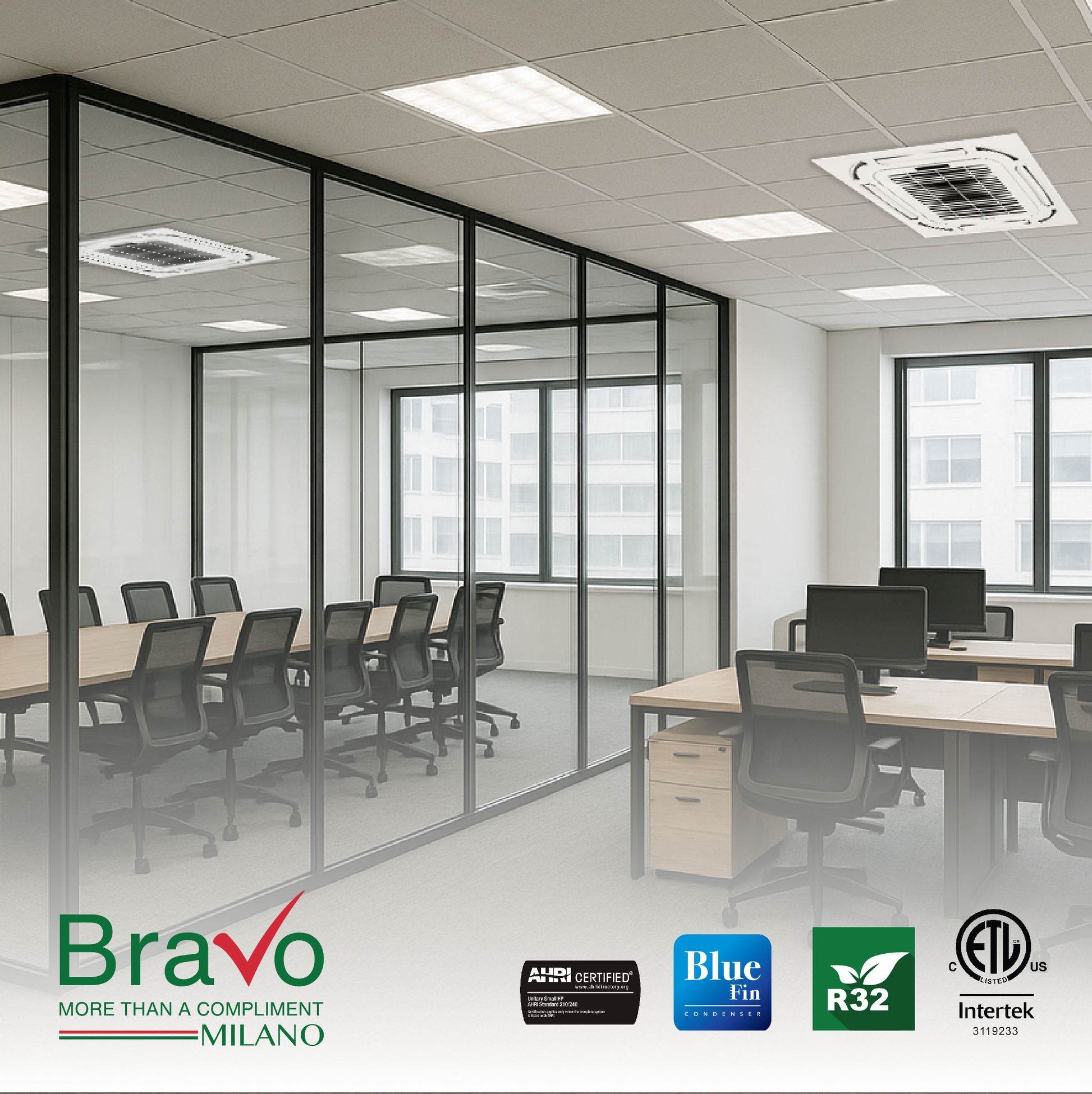

The Bravo Milano Multi-Zone Ceiling Cassette Mini Split System is a discreet, flush-mounted solution for cooling and heating individual rooms. Its 360° air delivery pattern helps reduce hot and cold spots while keeping the equipment largely out of sight.
With capacities from 9K to 24K Btu/h, this cassette lineup can be sized for bedrooms, offices, and open living areas. The low-profile grille blends into the ceiling, while the integrated SMART APP offers convenient control from compatible smart devices.
- Ceiling cassette indoor unit for bedrooms, offices, and living areas
- 360° airflow distribution for more even temperature and comfort
- Low-profile cassette plus matching decorative panel (BRV-PN9-18CT)
- Inverter-driven operation for stable temperatures and improved efficiency
- Remote control included for in-room adjustments
- Smart App control: monitor and adjust from compatible smart devices
- Super / Turbo mode for rapid heating or cooling
- Comfortable Sleep Mode with gentle overnight operation
- Eco Mode to help manage energy consumption
- Multiple fan speeds for fine-tuned airflow
- Timer function for scheduled on/off operation
- Louver auto swing for better air distribution
- Anti-mildew / self-cleaning functions to help keep the coil cleaner
- Follow Me function (temperature sensing near the remote)
- Activated carbon filter to support improved indoor air quality
- LED display and clear status indication
At-a-glance
Ceiling cassette (flush-mount)
12,000 BTU/h
12,000 BTU/h
208–230V, 1Ph, 60Hz
383 CFM
40 dB(A)
22.44 × 22.44 × 10.24 in
25.59 × 25.59 × 2.17 in
1/4" (liquid) / 3/8" (gas)
60.8–89.6°F
What’s included
- Indoor ceiling cassette unit — BRV-M12CT-230VI (12,000 BTU 230V Bravo Milano indoor cassette)
- Indoor cassette panel — BRV-PN9-18CT (Bravo Milano decorative ceiling cassette panel)
- Wireless remote control
- Installation manual
- User’s manual
- Manufacturer limited warranty
Optional pre-flared 99% copper installation kit (16 ft, 25 ft, or 50 ft) must be selected above. Kit includes copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories.
Other Bravo Milano ceiling cassette units
| Capacity | SKU |
|---|---|
| 9,000 BTU | BRV-M09CT-230VI |
| 12,000 BTU | BRV-M12CT-230VI |
| 18,000 BTU | BRV-M18CT-230VI |
| 24,000 BTU | BRV-M24CT-230VI |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty (must be installed by a licensed HVAC technician)
Registration is required within 60 days of installation and can be completed online or by phone. See manufacturer documentation for full terms and conditions.
Technical specifications — Indoor cassette unit (BRV-M12CT-230VI)
| Indoor model | BRV-M12CT-230VI |
|---|---|
| Panel model | BRV-PN9-18CT |
| Power supply | 208–230V, 1Ph, 60Hz |
| Cooling capacity | 12,000 BTU/h |
| Heating rated capacity | 12,000 BTU/h |
| Max fuse | 5 A |
| Indoor airflow | 383 CFM |
| Indoor noise level | 40 dB(A) |
| Indoor unit dimensions (W×D×H) | 22.44 × 22.44 × 10.24 in |
| Indoor packing dimensions (W×D×H) | 28.35 × 25.59 × 11.42 in |
| Indoor net / gross weight | 30.9 / 37.5 lbs |
| Panel dimensions (W×D×H) | 25.59 × 25.59 × 2.17 in |
| Panel packing dimensions (W×D×H) | 27.95 × 27.95 × 3.15 in |
| Panel net / gross weight | 4.9 / 8.2 lbs |
| Refrigerant piping (liquid / gas) | 1/4" / 3/8" |
| Operating temperature range (indoor) | 60.8–89.6°F |
Important installation notes
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone.
The installation kit is necessary for the system to function. This kit includes pre-flared 99% copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Certifications
Performance data / additional features
- Sleek matte finish for a modern, unobtrusive appearance
- Turbo function for rapid temperature pull-down or warm-up
- Silent function for quieter operation
- LED display
- Horizontal auto swing and 360° airflow through the cassette panel
- Programmable timer
- Comfortable Sleep Mode
- Multiple fan speeds
- Self-cleaning function
- Follow Me function (remote-based temperature sensing)
- Activated carbon filter for enhanced air quality
Manuals & downloads
Full description
Expand
The Bravo Milano Ceiling Cassette Mini Split System is a discreet and powerful solution for cooling and heating individual rooms. Designed to mount flush with your ceiling, this system delivers 360° airflow distribution for even temperature control throughout the space—making it ideal for bedrooms, offices, and open living areas.
With capacities ranging from 9K to 24K Btu/h, the ceiling cassette lineup offers flexible sizing for a variety of room types. Its low-profile design keeps the equipment above the ceiling with only a clean, modern grille visible, while the built-in SMART APP enables convenient remote control from compatible smart devices.
With system ratings up to 24 SEER2, the Bravo Milano Ceiling Cassette delivers efficient performance, quiet operation, and year-round comfort when paired with a matching outdoor unit and properly installed accessories.
