Bravo Milano 5-Zone Ductless Mini Split AC & Heat Pump -- 42000 BTU (3.5 Ton), Wall Mount Units (7K+9K+9K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling
Everyday heating and cooling with a clean, wall-mounted design.
Shipping and returns
Standard delivery: $29 below $300; free on eligible orders of $300 or more. New, unused equipment: request a return within 30 days of delivery. RMA required; return freight, applicable outbound freight, and restocking fees apply. Open-box terms differ.
Ordinary returns: 10% restocking for unopened new items; 20%–50% for eligible opened or deformed packaging; 20% for eligible open-box returns. Applicable outbound and return freight are additional deductions. Claim exceptions are explained in the return policy.
Approved refunds: allow up to 10 business days after the authorized return is received, subject to inspection and eligibility.
Shipping details · Return termsConfigure your system
Model: BRV-M42-230VO + BRV-M07WM-230VI + 2X BRV-M09WM-230VI + 2X BRV-M12WM-230VI
Certifications & technology
Product resources. Clear support. Lasting peace of mind.
AHRI
Matched-system ratings
Inverter
Variable-speed comfort
R32
Refrigerant by model
Blue Fin
Condenser coating
Smart App ready
Compatible systems
Certifications, coatings, refrigerant and connected features vary by model and matched system. Verify your exact equipment in the product documentation.
Built around your room
A few quick steps to find the right system for your space.
Match your space and heating or cooling needs.
Choose the indoor style that fits your room.
Check system compatibility and installation essentials.
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Welcome to MILANO
Many rooms. One considered system.Inspired by Milan's modern approach to living. Build a matched multi-zone system around the rooms that matter to you.
Explore MILANO Italian design. Real comfort.Product description

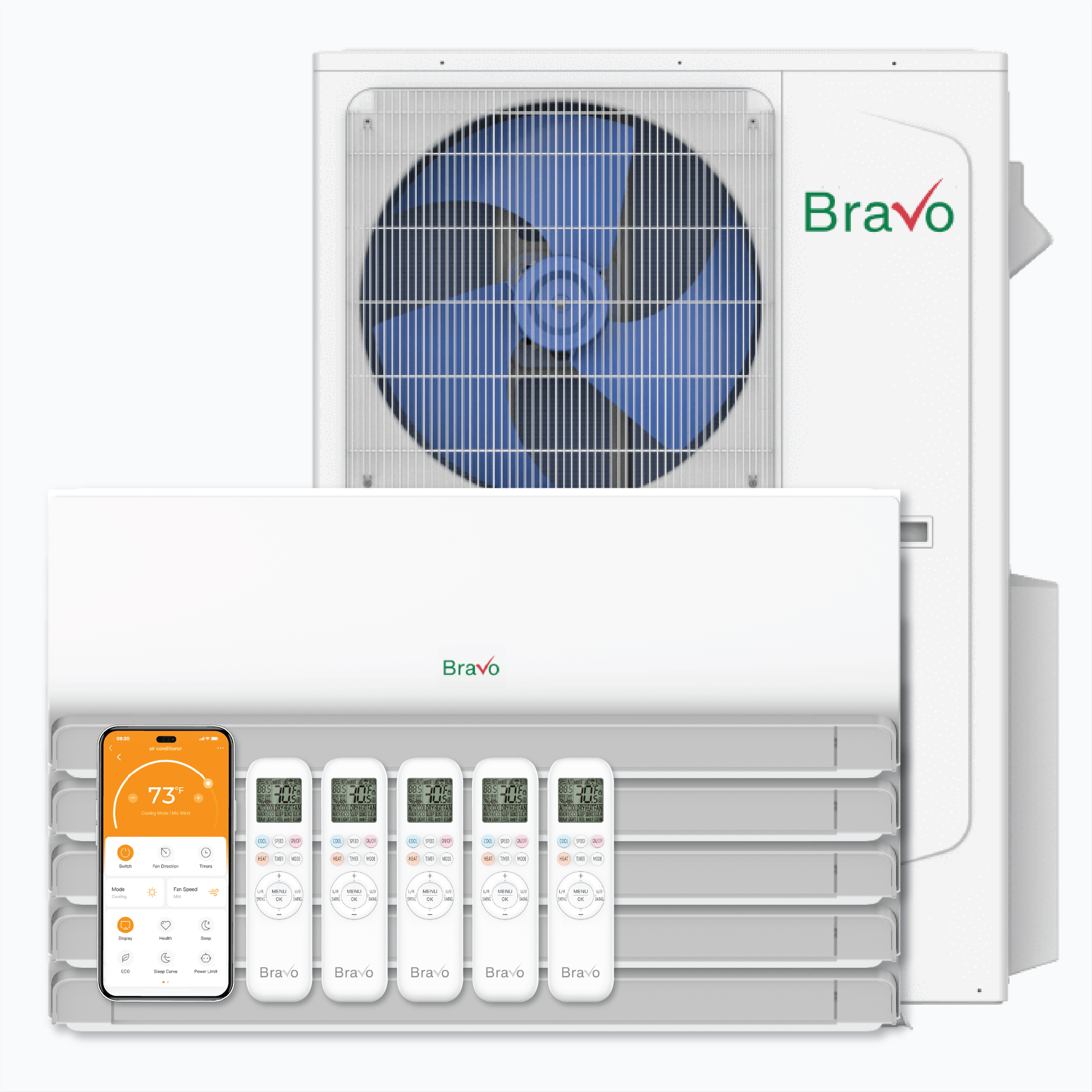

Bravo Milano 5-Zone Ductless Mini Split AC & Heat Pump -- 42000 BTU (3.5 Ton), Wall Mount Units (7K+9K+9K+12K+12K) BTU, Inverter Technology, 230V, Heating & Cooling

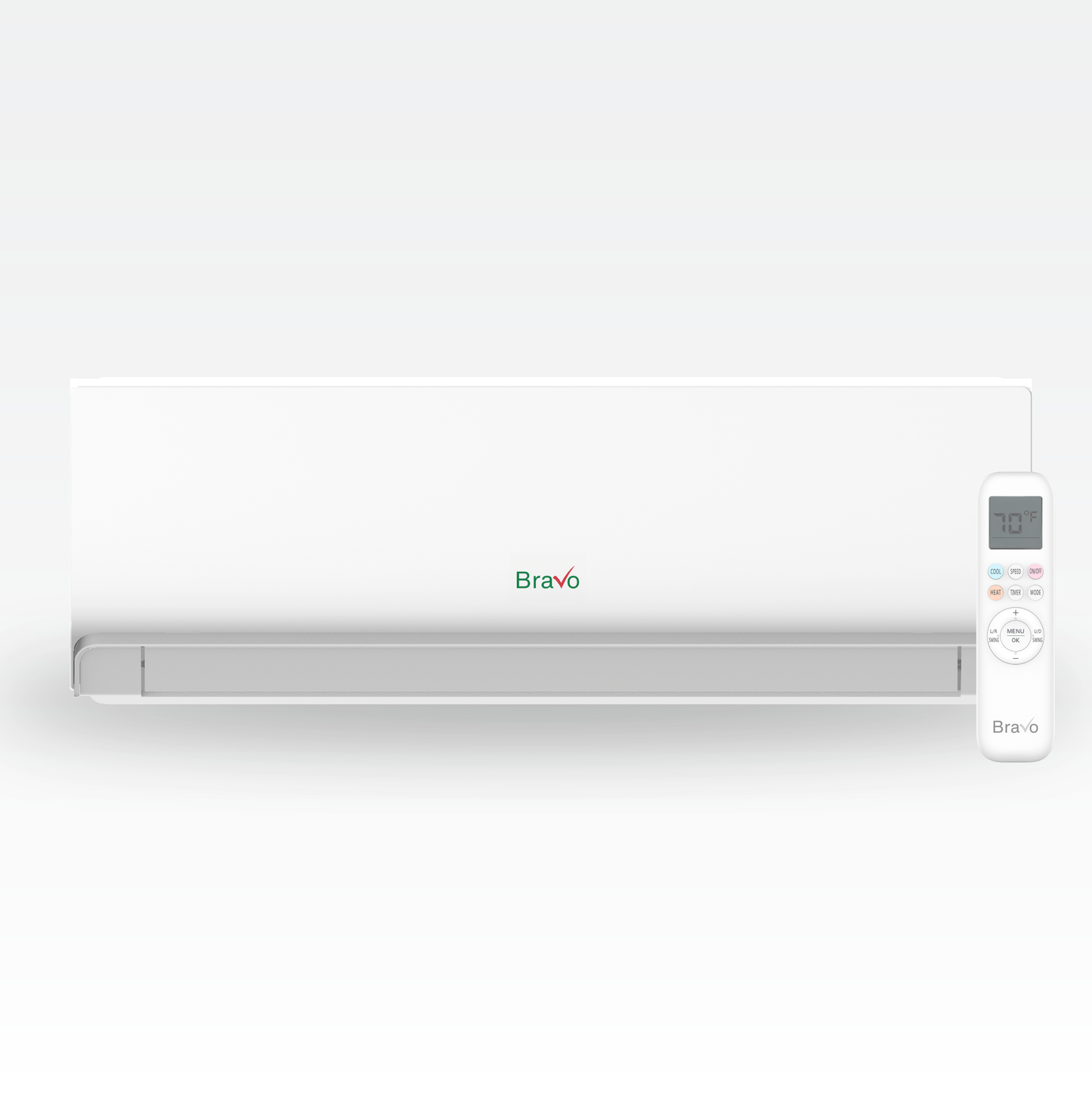

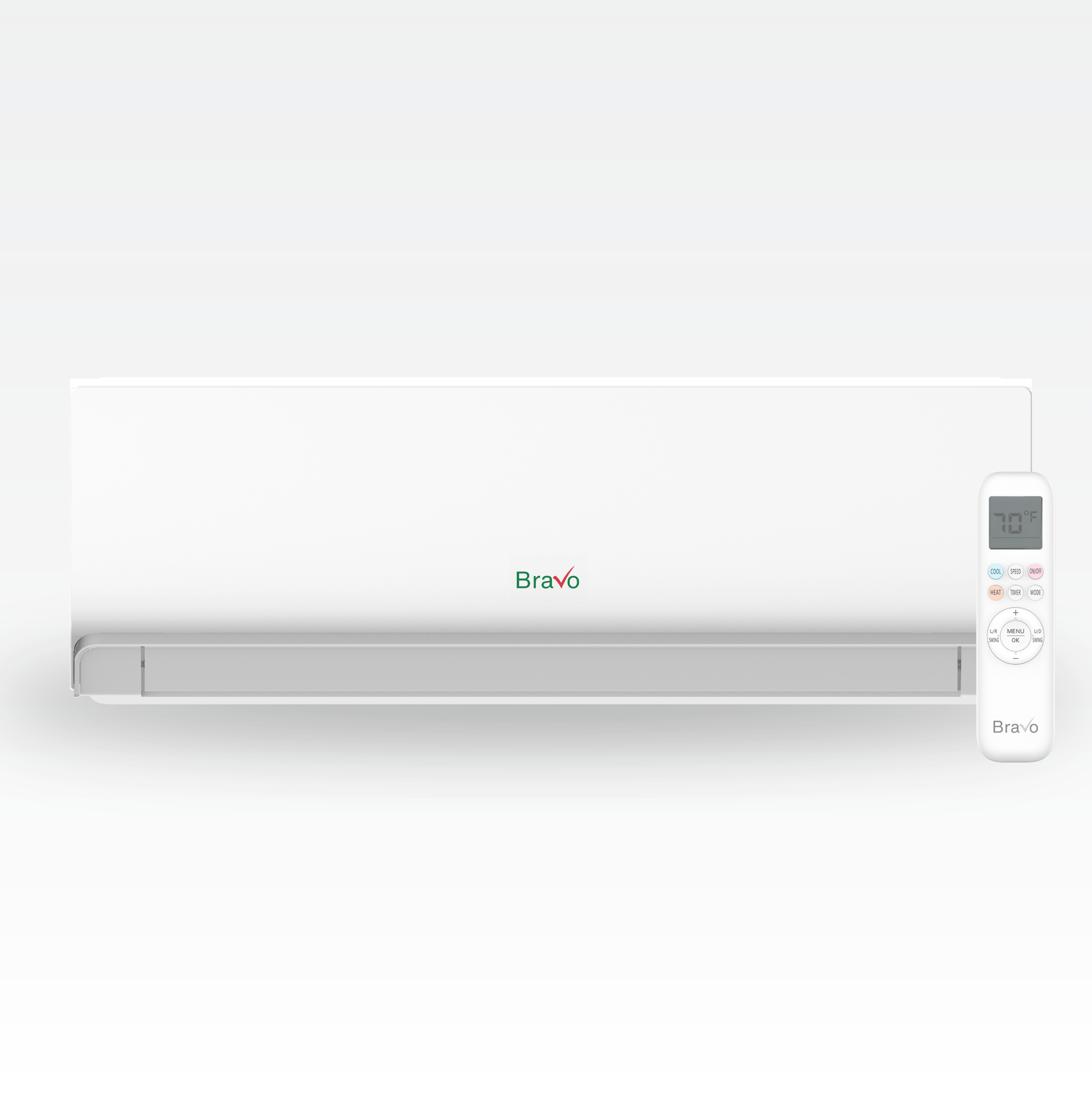

High-wall indoor unit for single-room or multi-zone systems. Configuration: BRV-M42-230VO + BRV-M07WM-230VI + 2X BRV-M09WM-230VI + 2X BRV-M12WM-230VI. Outdoor capacity 42000 BTU. SEER2 up to 24.
Performance features
- High-wall indoor unit for targeted comfort
- Optimized for multi-zone compatibility
- R32 refrigerant for lower environmental impact
- Built-in Smart App connectivity for remote control
- Wireless remote control included
- Eco, Super, and Sleep modes
- Auto-swing louvers and multiple fan speeds
- 24-hour timer and anti-mildew dry function
- Quiet operation with intuitive LED display
- Auto restart after power interruption
At-a-glance
5 rooms
42000
24
BRV-M42-230VO

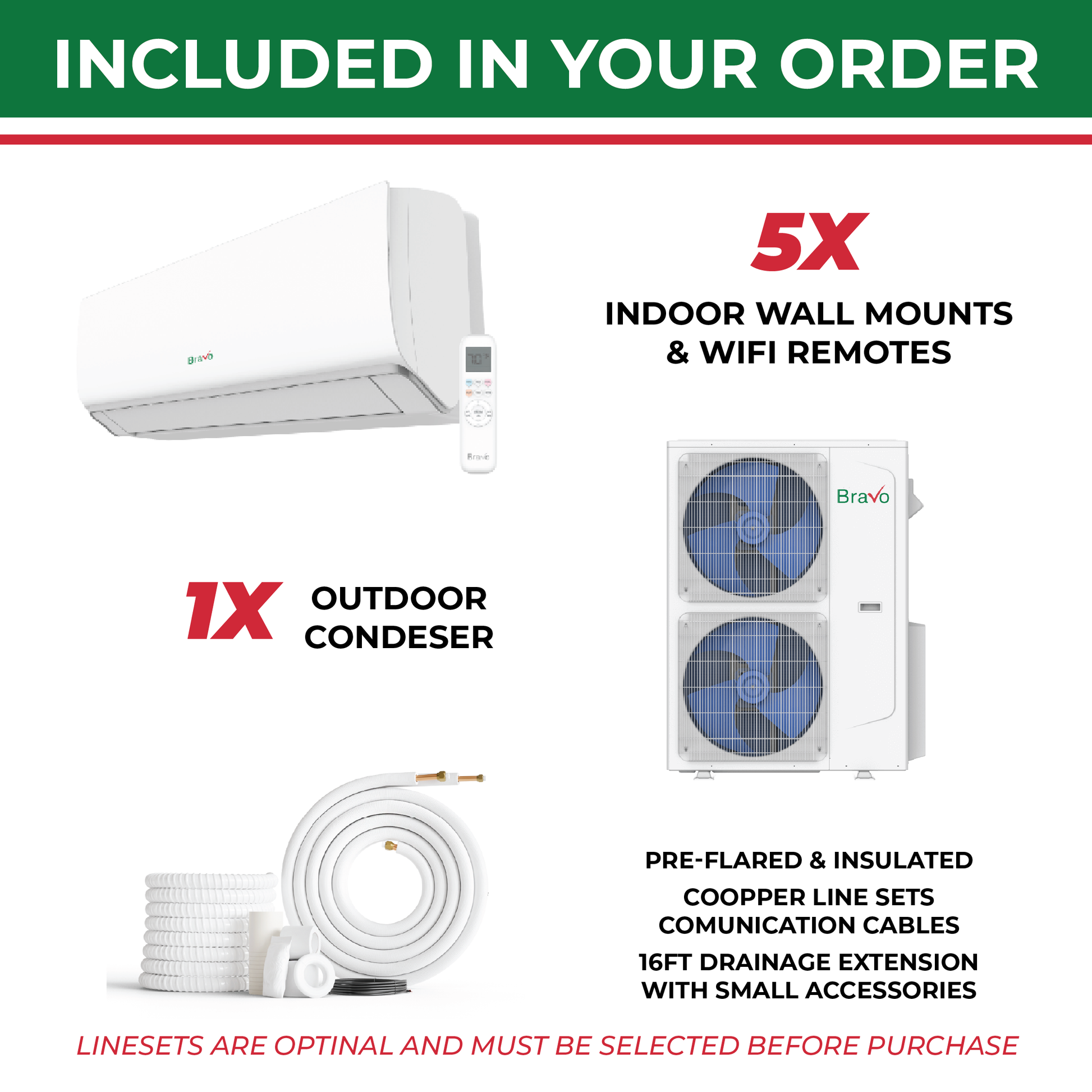

What’s included
- 7,000 BTU (x1) — Model: BRV-M07WM-230VI
- 9,000 BTU (x2) — Model: BRV-M09WM-230VI
- 12,000 BTU (x2) — Model: BRV-M12WM-230VI
- Outdoor Condenser — BRV-M42-230VO
- Optional pre-flared 99% copper install kit (If you do not select a length above, and you select (NO INSTALLATION KIT) option, the order will not include any copper linesets, or communication wires which are required for installation.)
- Wireless remote(s), installation manual, user manual
Licensed HVAC installation required for warranty. Register within 60 days if required.
Technical specifications — Indoor
Indoor Unit Specifications — BRV-M07WM-230VI
| Voltage range (V) | 187-253 |
|---|---|
| Unit dimensions (WxDxH) | 31.02×11.50×7.80 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 34.65×14.57×11.42 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 17.60/22.00 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | / |
| Indoor noise level (Hi/Med/Lo) (dB) | 38/35/30 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | 2 pcs (11.34*11.02*0.169inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 2/3" |
| Dehumidification (Pnt/H) | 1.48 |
| Controller | Remote controller |
| BTU Rated | 7,000 |
Indoor Unit Specifications — BRV-M09WM-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 31.02×11.50×7.80 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 34.65×14.57×11.42 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 17.60/22.00 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 38/35/30 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | 2 pcs (11.34*11.02*0.169inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 1.48 |
| Controller | Remote controller |
| BTU Rated | 9,000 |
Indoor Unit Specifications — BRV-M12WM-230VI
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 34.49×11.73×7.64 |
| System type | Multi-zone unit |
| SEER2 up to | / |
| Refrigerant type | R32 |
| Refrigerant piping Liquid/Gas side (inch) | 1/4"/3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 37.99×14.57×11.1 |
| Operation room temperature Heating (F) | 50~89.6 |
| Operation room temperature Cooling (F) | 60.8~89.6 |
| Net/Gross weight (lb) | 19.80/24.27 |
| Minimum circuit ampacity (A) | / |
| Max. fuse (A) | 5 |
| Indoor noise level (Hi/Med/Lo) (dB) | 40/36/32 |
| Indoor Airflow (Turbo/Hi/Mi/Lo) (CFM) | 353 |
| Filter dimensions (WxDxH) (inch) | 2pcs (12.8*10.71*0.295inch) |
| ESP | / |
| EER2 up to | / |
| Drainage water pipe diameter (inch) | 5/8" |
| Dehumidification (Pnt/H) | 2.11 |
| Controller | Remote controller |
| BTU Rated | 12,000 |
Manuals
- https://api.acbravo.com/storage/3717/Owners-Manual---Bravo-Milano-Wall-mount.pdf
- https://api.acbravo.com/storage/3720/Remote-Manual---Bravo-Milano.pdf
- https://api.acbravo.com/storage/3721/SMART-App-Manual---Bravo-Milano.pdf
Documents
Technical specifications — Outdoor

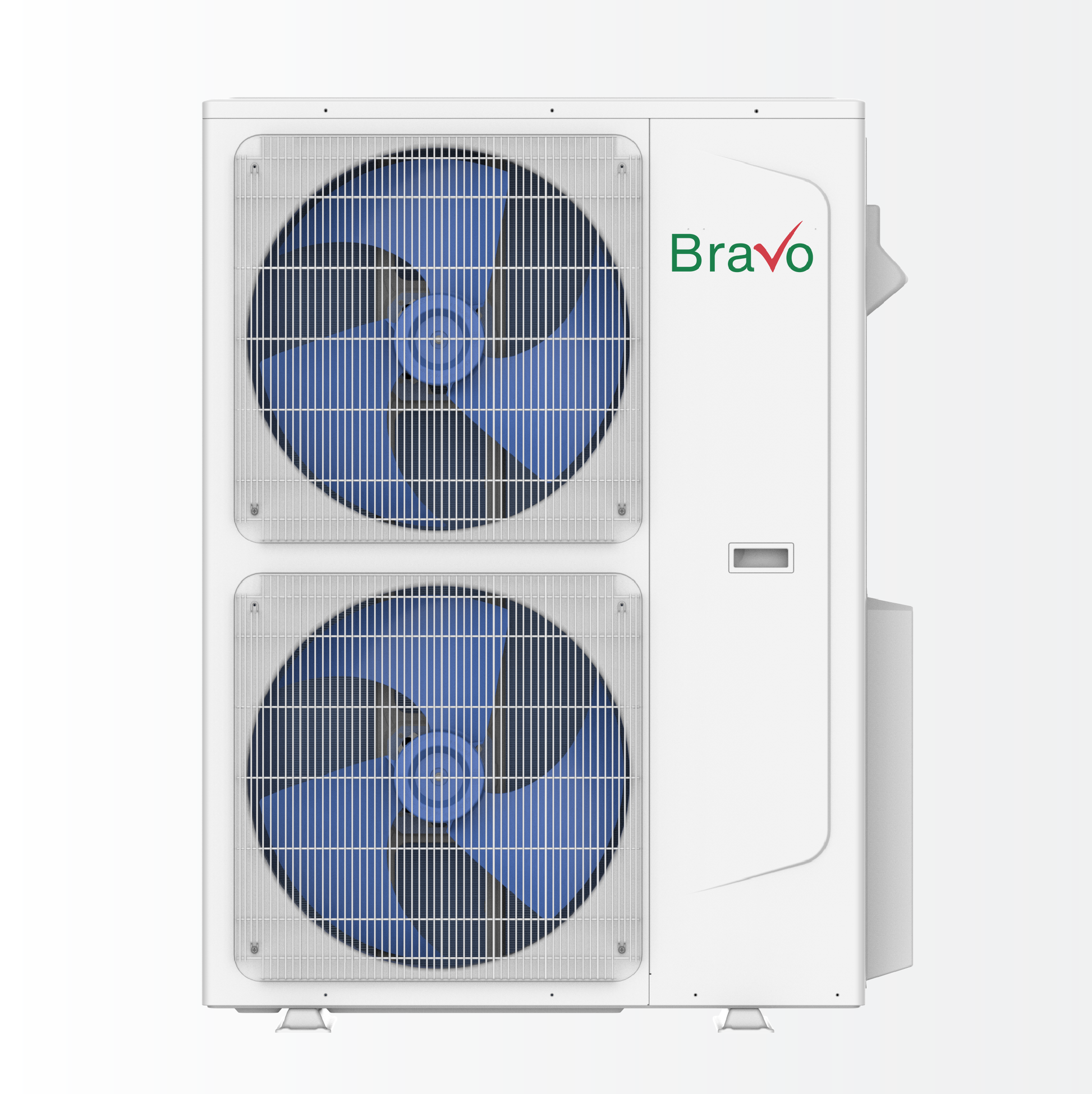

Outdoor Unit Specifications — BRV-M42-230VO
| Voltage range (V) | 165-264 |
|---|---|
| Unit dimensions (WxDxH) | 39.80x15.75x51.97 |
| System type | Multi-zone unit |
| SEER2 up to | 24/22/23 |
| Refrigerant type | R32 |
| Refrigerant precharge (ft) | Average 24.6 |
| Refrigerant piping Liquid/Gas side (inch) | 5x1/4"- 5x3/8" |
| Power source | 208-230V, 1Ph, 60Hz |
| Packing dimensions (WxDxH) | 42.52x16.93x56.69 |
| Outdoor noise level (dB) | 60 |
| Outdoor air flow (CFM) | 4,235 |
| Net/Gross weight (lb) | 205.0/224.9 |
| Minimum circuit ampacity (A) | 32 |
| Max. fuse (A) | 45 |
| Max height difference between Indoor and Outdoor unit | 49 |
| HSPF2-5 | 8/7.2/7.6 |
| HSPF2-4 | 10.5/10/10.25 |
| Heating capacity (Min/Max) (Btu/h) | 42,000 (8,450-46,000) |
| EER2 up to | 12.5/12.3/12.4 |
| Dehumidification (Pnt/H) | / |
| COP | 3.9/3.9/3.9 |
| Cooling capacity (Min/Max) (BTU/h) | 42,000 (8,350-46,000) |
| BTU Rated | 42,000 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | -13~125 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Documents
Important

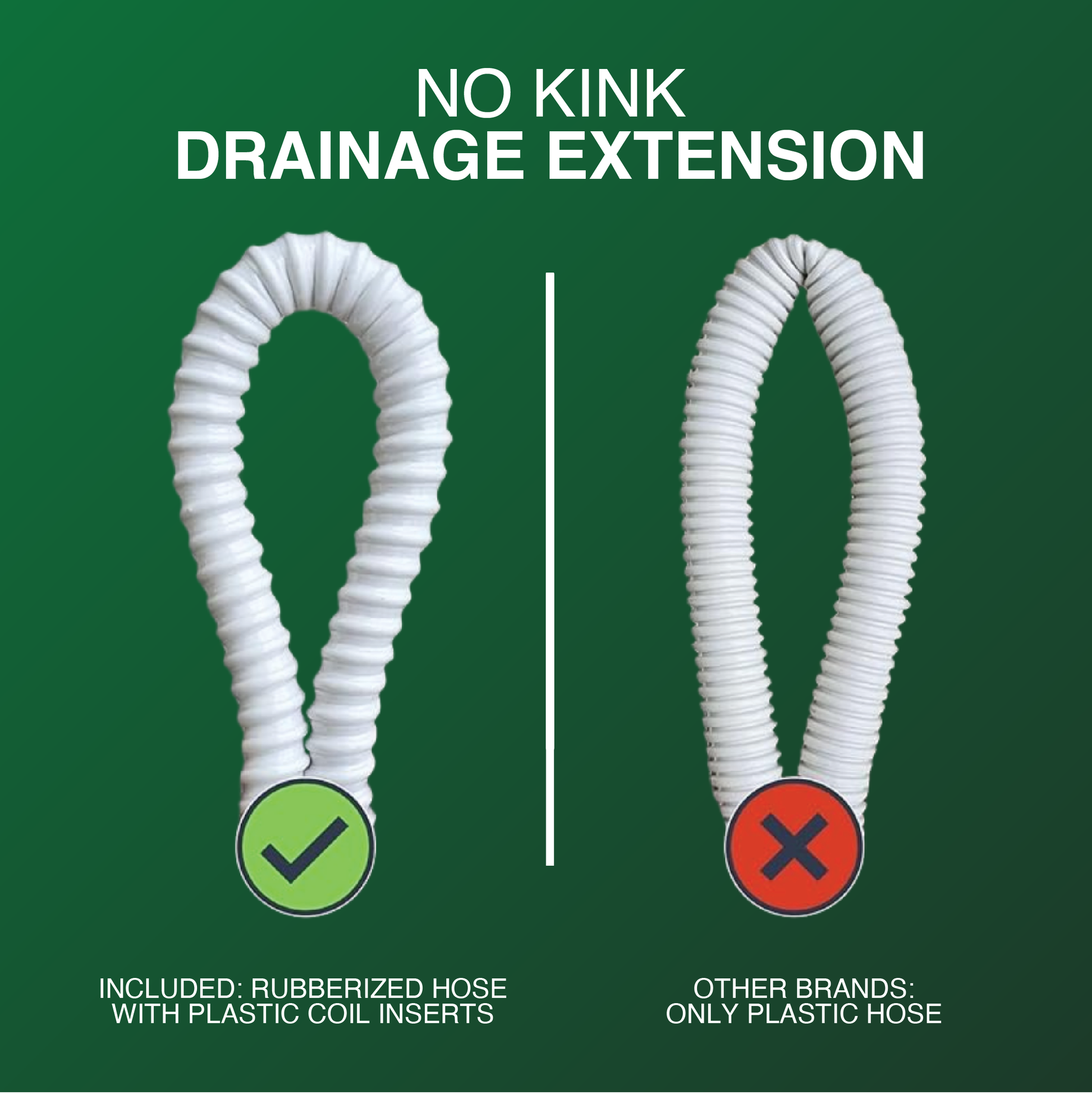

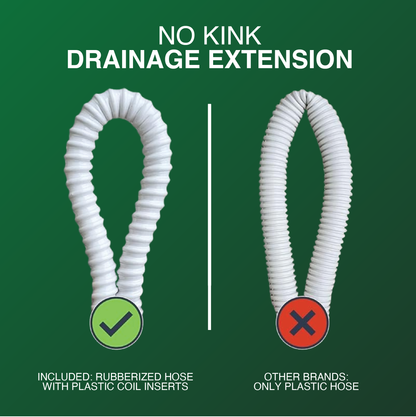

The installation kit is required for operation. It includes pre-flared copper lines, data communication wires, PVC drainage attachment, and wrapping bands.
Full description
Expand
Compact in size but big on performance, the 5 Bravo Milano Wall Mount Unit is a precise fit for targeted comfort in smaller spaces. Use it to upgrade a home office, guest bedroom, studio apartment, or a single room in a larger multi-zone setup.
Optimized for multi-zone systems, this high-wall unit uses R32 refrigerant for a more environmentally conscious solution without sacrificing efficiency. Control is flexible: use the included remote or manage settings from your phone or tablet with built-in Smart App connectivity.
Designed for everyday comfort, it includes Eco, Super, and Sleep modes, multiple fan speeds, auto-swing louvers, a 24-hour timer, and an anti-mildew function that helps keep the air feeling fresh. An intuitive LED display makes operation simple.
Whether you’re enhancing a cozy nook or supplementing a whole-home system, Bravo delivers performance and convenience in a modern, low-profile package. Bravo: More Than a Compliment — It’s Comfort with Purpose.
Specifications & dimensions
BRAVO / CERTIFICATION & TECHNOLOGY
Confidence in every detail.
Explore the certifications and technologies behind your BRAVO system, from matched-system performance to everyday control.
AHRI Certified
Performance ratings for the matched system.
R32 refrigerant
R32 refrigerant system.
Inverter technology
Variable-speed compressor technology.
Blue Fin condenser
Protective condenser coating.
Smart App ready
Compatible with smart-app control.
Certifications and listings apply to qualifying models and matched systems. Refrigerants, coatings and connected features vary by model. Check product documentation for your exact configuration.
BRAVO limited warranty
Support beyond the purchase.
Eligible BRAVO systems: 7-year compressor and 5-year parts limited warranty. Professional installation and registration within 60 days are required. Review full terms and exclusions.
