BRAVO - Pisa Series Heat Pump System
Bravo Pisa Series 9,000 BTU Single Zone Heat Pump System with Ceiling Cassette, 208-230V
SKU: BRV-P09LS-230VO + BRV-P09CT-230VI
Overview
The Bravo Pisa Series 9,000 BTU heat pump system pairs the BRV-P09LS-230VO outdoor unit with the BRV-P09CT-230VI indoor unit to deliver dependable year-round comfort in a single-zone application. This pairing uses R32 refrigerant, operates on 208-230V, 1Ph, 60Hz, and is designed around a clean ceiling cassette layout for rooms where wall space is limited.
With up to 22.0 SEER2, up to 11.0 EER2, and listed heating operation down to -4~75°F, this system gives contractors and homeowners a compact option for efficient cooling and heating. Pairing, electrical requirements, drainage, and line set sizing should be verified before installation.
Highlights
- Single-zone comfort: One outdoor unit is paired with one indoor ceiling cassette for a dedicated zone.
- Efficient R32 performance: Rated up to 22.0 SEER2 and 11.0 EER2 in the provided specifications.
- Flexible indoor style: The Ceiling Cassette indoor unit is built for applications where a standard wall-mounted head is not the preferred fit.
- Control included: Includes a Remote Controller for system operation.
- Line set capability: Supports up to 49 ft maximum pipe length and 33 ft maximum level difference.
- Operating range: Outdoor cooling range is 5~127°F, and outdoor heating range is -4~75°F.
- Installation note: A 16 ft installation kit is included with this system. No separate kit selection is required.

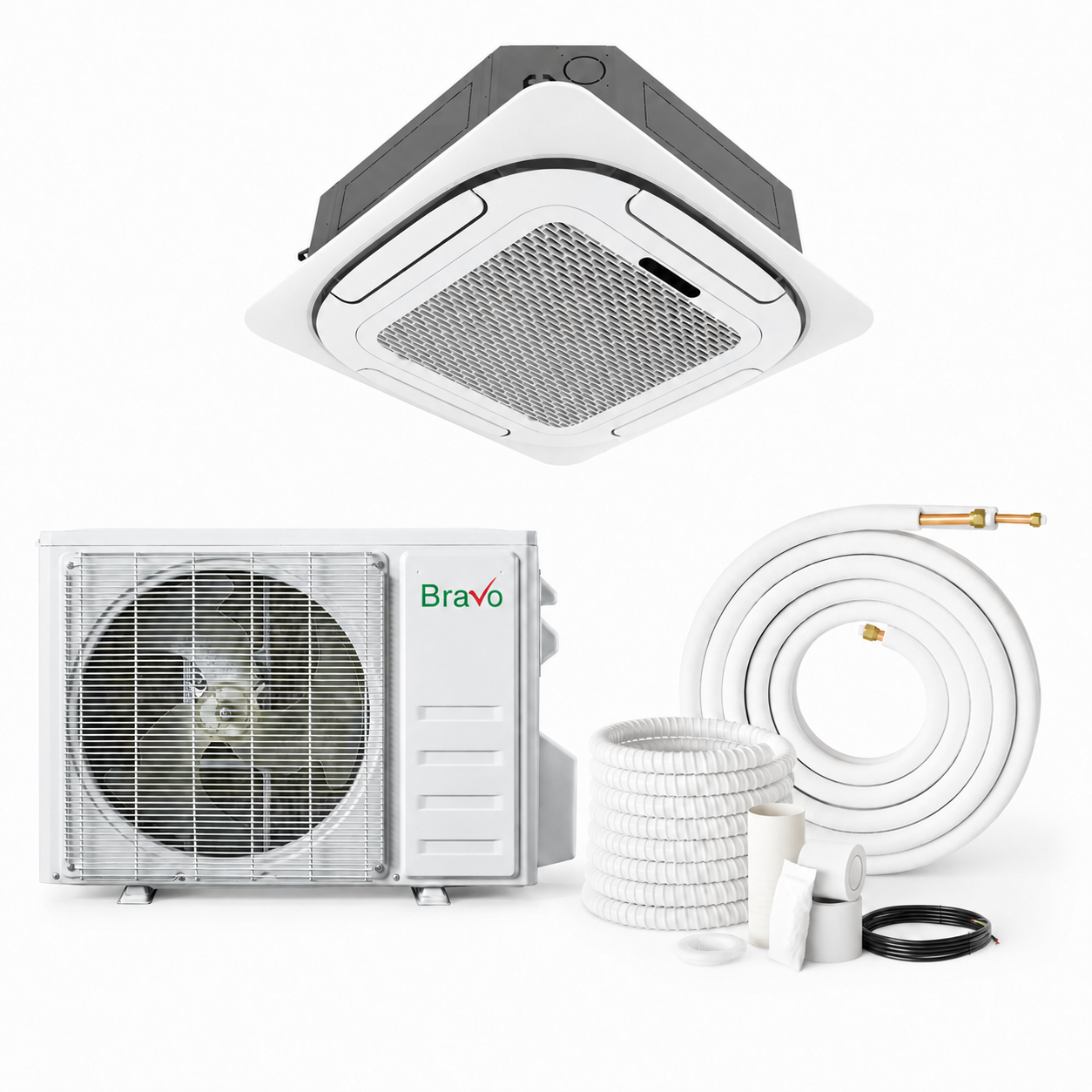

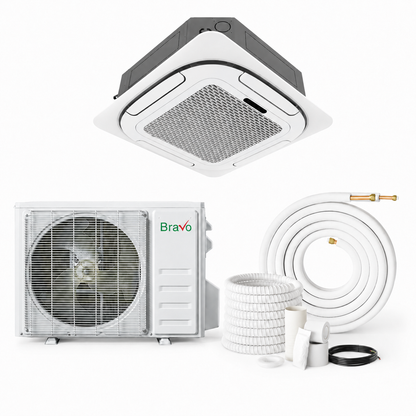

What's Included
- Indoor unit: BRV-P09CT-230VI
- Outdoor unit: BRV-P09LS-230VO
- Remote Controller
- A 16 ft installation kit is included with this system. No separate kit selection is required.

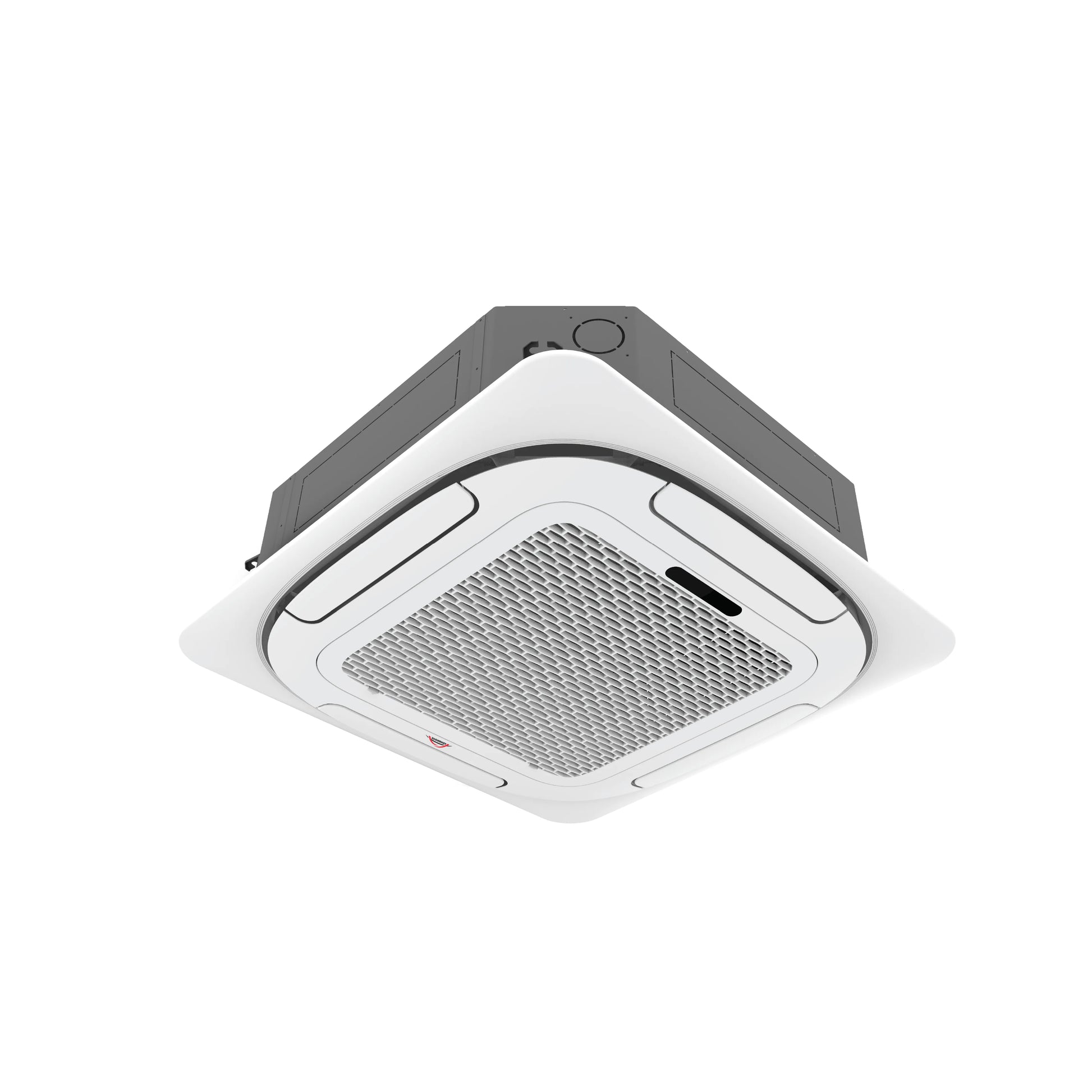

Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P09CT-230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Communication wiring | AWG 16x4 |
| Cooling capacity | 9,000 (2000~10400) BTU/h |
| Cooling input | 750 W |
| Cooling rated current | 3.3 A |
| Heating capacity at 47°F | 2500~12500 BTU/h |
| Heating input at 47°F | 720 W |
| Heating rated current at 47°F | 3.1 A |
| EER2 | 11.0 |
| SEER2 | 22.0 |
| COP | 3.8 W/W |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 9.0 |
| Indoor fan motor qty | 1 |
| Indoor fan motor output | 30 W |
| Indoor fan motor RLA | 0.13 A |
| Indoor airflow | 329/300/270/217/194 CFM |
| Indoor noise level | 43/41/37/33/32 dB |
| Dehumidification | 2.2 Pints/h |
| Drain connection | 0.63 |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Controller | Remote Controller |
| Room temperature range, cooling | 62~89°F |
| Room temperature range, heating | 32~86°F |
| Filter dimensions | 23-3/8"x7-1/4"x1/8" |
| Panel dimensions | 25 -5/8"×25 -5/8"×1 -1/8" |
| Unit dimensions (W x D x H) | 22 -1/2"×22 -1/2"×10 -1/4" |
| Packed dimensions (W x D x H) | 28 -1/4"×25 -7/8"×11 -7/8" |
| Net / gross weight | 31.9 lbs |
| Design pressure | 609/174 PSIG |

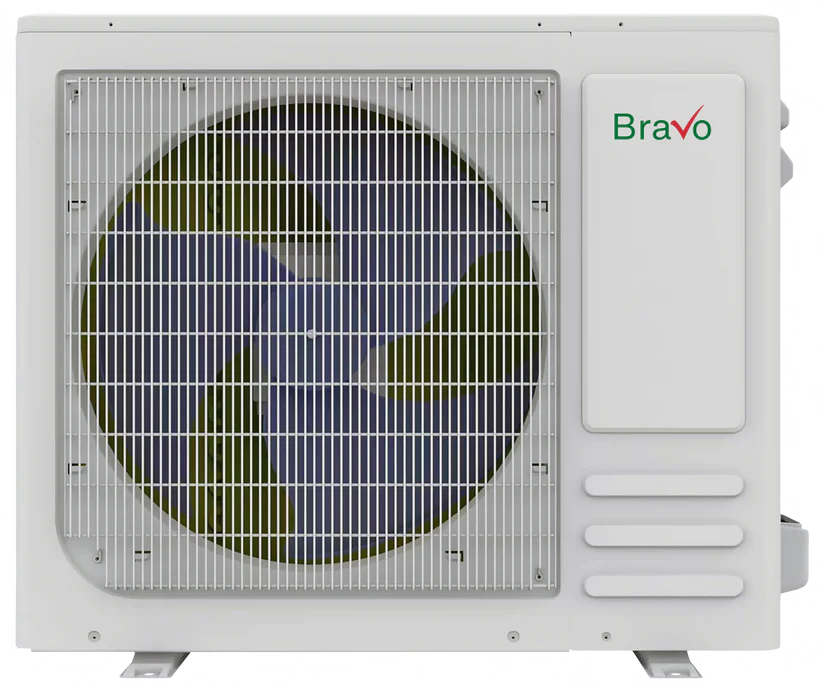

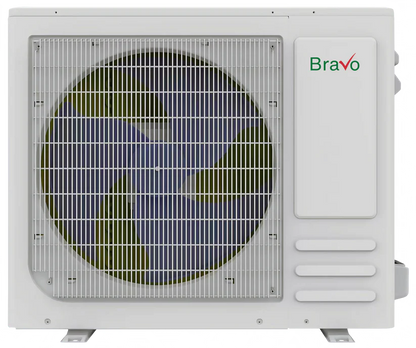

Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P09LS-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Minimum circuit ampacity | 10 A |
| Maximum fuse | 15 A |
| Compressor model | KSN98D31UEZA31 |
| Compressor type | Rotary |
| Compressor brand | GMCC |
| Compressor capacity | 10304 BTU/h |
| Compressor input | 778 W |
| Compressor rated current (RLA) | 4.72 A |
| Refrigerant oil / charge | 9.47 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor output | 33 W |
| Outdoor fan motor RLA | 0.15 A |
| Outdoor fan speed | 1000 r/min |
| Outdoor airflow | 659 CFM |
| Outdoor noise level | 53 dB |
| Throttle type | Capillary |
| Refrigerant type | R32 |
| Refrigerant amount | 21.6/1.35 |
| Factory precharge | 25 ft |
| Additional charge for 1/4 in. liquid pipe | 0.11 oz |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Maximum level difference | 33 ft |
| Maximum pipe length | 49 ft |
| Ambient range, cooling | 5~127°F |
| Ambient range, heating | -4~75°F |
| Unit dimensions (W x D x H) | 31"×11 -3/8"×19 -5/8" |
| Packed dimensions (W x D x H) | 32 -1/4"×12 -3/4"×20 -1/4" |
| Net / gross weight | 50.7 lbs |
Documents & Downloads
- Contact us for current submittals, installation documents, and compatibility questions before ordering or installation.
Important
Professional installation is recommended. Verify electrical requirements, line set sizing, refrigerant charge, drainage, clearances, and local code requirements before installation. A 16 ft installation kit is included with this system. No separate kit selection is required.
