Product description

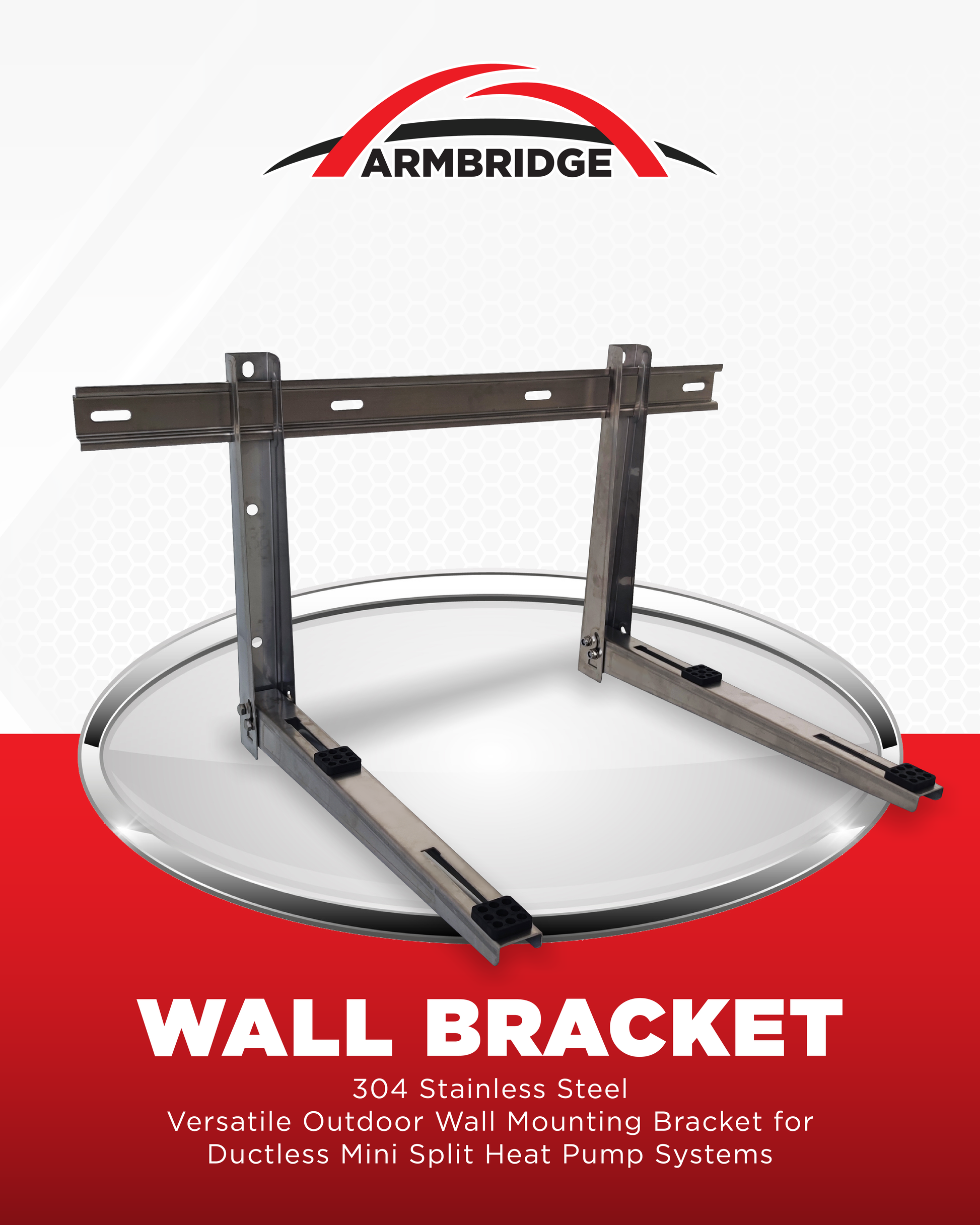

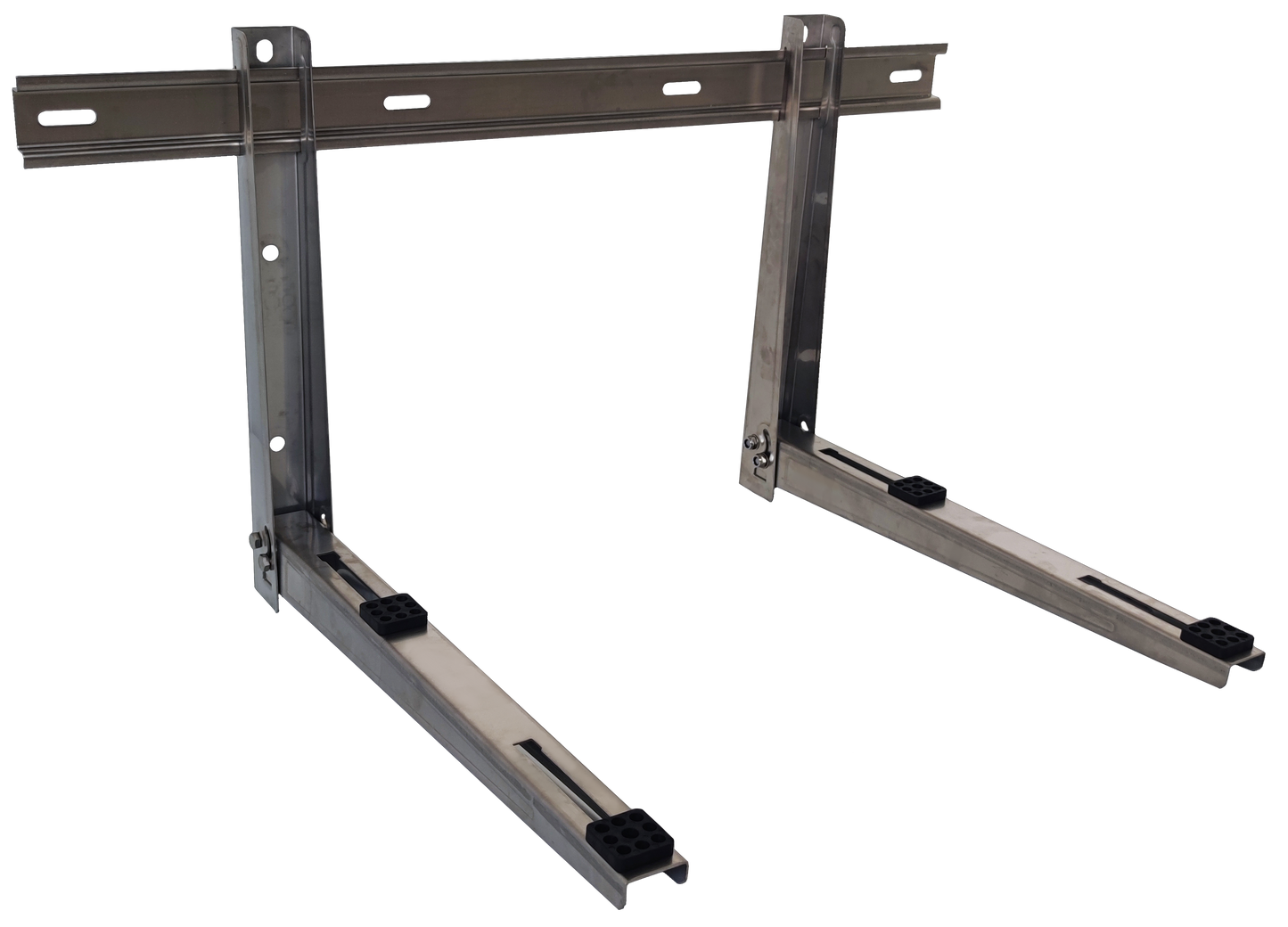

Armbridge — Mini Split Wall Mounting Bracket, 304 Stainless Steel, Foldable
High load capacity bracket for 9,000–36,000 BTU mini split and heat pump units. Built-in vibration control. Compact foldable design.
Watch: Overview
Why pros choose this bracket
- High load capacity: supports up to 550 lbs per set when anchored to suitable structure.
- Corrosion resistance: 304 stainless steel for coastal and harsh environments.
- Quieter installs: built‑in vibration pads and shock absorbers reduce noise.
- Faster setup: foldable arms and adjustable backstops fit most condensers 9k–36k BTU.
- Complete kit: includes expansion anchors, bolts, washers, and pre‑assembled rubber mounts.
Foldable wall mount

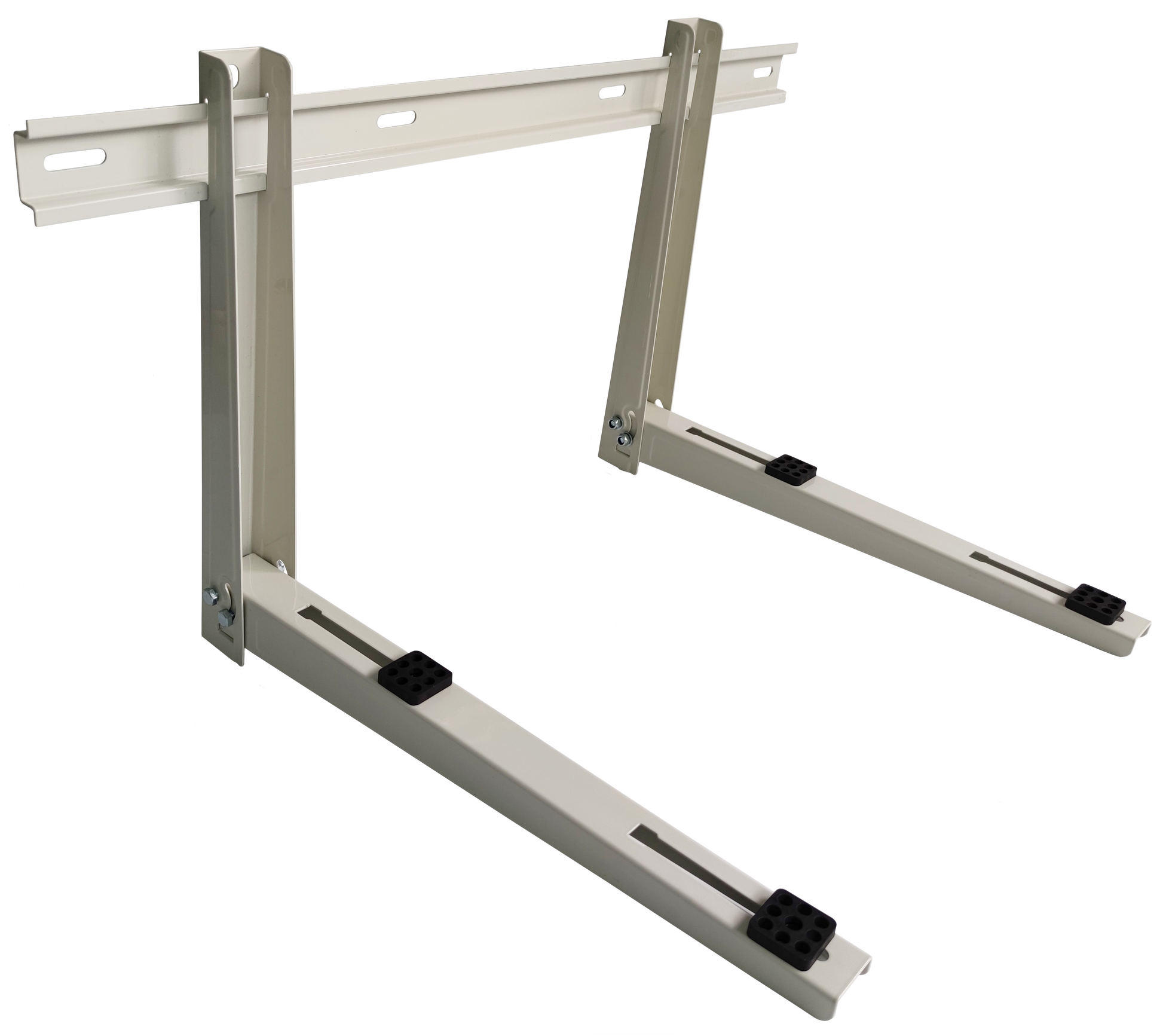

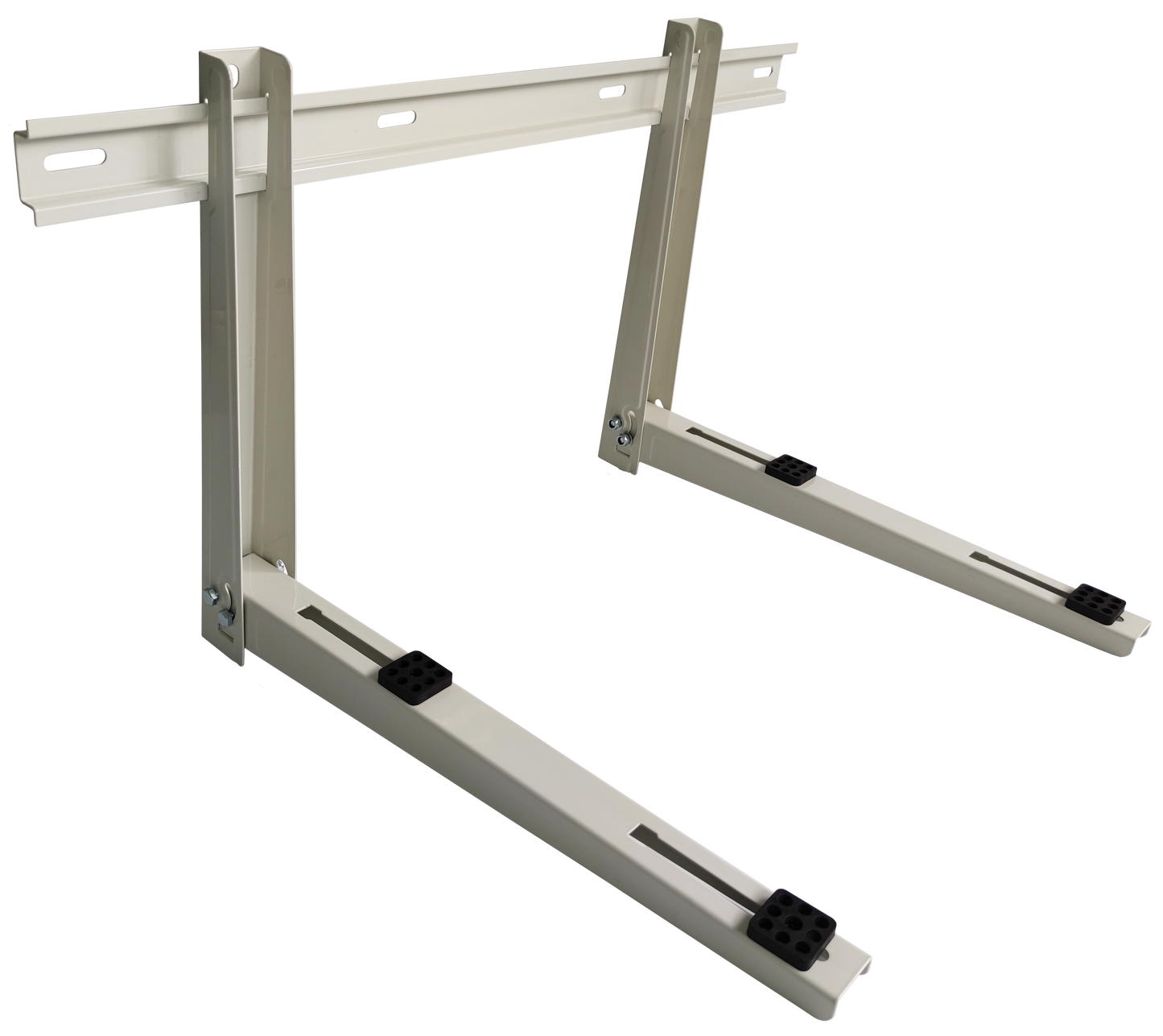

Zinc Coated Steel / 304 Stainless Steel
Up to 550 lbs per set
9,000–36,000 BTU mini splits & heat pumps
What’s included
- Foldable stainless bracket set with adjustable arms and backstops
- pre‑assembled rubber vibration mounts
- M10 3‑9/16 in. expansion bolts for wall anchoring
- M8 1‑3/16 in. hex bolts
- washers
- Installation instructions
Use appropriate fasteners for the wall construction and local code.
Key features
- 304 stainless steel frame resists rust and corrosion
- Foldable arms for compact storage and efficient shipping
- Built‑in vibration control pads and shock absorbers
- Adjustable arms and backstops for universal fit
- High load capacity when properly installed
Always mount to a solid structural base per manufacturer instructions.
About ARMBRIDGE
ARMBRIDGE delivers high‑quality HVAC accessories backed by 35+ years of industry experience. With nationwide warehouses and dedicated technical support, we serve distributors, contractors, and technicians across the United States.
Tech specs
| Model / Code | Material | Load Capacity | Compatibility | Dimensions | Included Hardware |
|---|---|---|---|---|---|
| AB‑WB‑GT (304 SS wall bracket) AB‑WB (Zinc Coated Steel) |
304 StainlessStee Zinc Coated Steel |
Up to 550 lbs per set | 9k–36k BTU mini split and heat pump units | Vertical bar: 17.71 in Bottom bar: 21.65 in Cross bar: 33.46 in |
× M10 3‑9/16 in expansion bolts M8 1‑3/16 in hex bolts washers pre‑assembled rubber mounts |
Dimensions and hardware per included instructions. Verify fasteners with site conditions.
Full description
Tap to expand
The ARMBRIDGE 304 stainless foldable wall bracket provides a secure, corrosion‑resistant platform for outdoor mini split condensers. Built‑in vibration pads and shock absorbers reduce transmission into the structure. Adjustable arms and backstops fit common 9k–36k BTU units. Foldable design reduces storage and freight volume. Includes a complete hardware kit for typical installations.
