Armbridge — Installation Kits for Mini Splits (9k,12k and 18k BTU Single-zone Roma series)
Everyday heating and cooling with a clean, wall-mounted design.
Shipping and returns
Standard delivery: $29 below $300; free on eligible orders of $300 or more. New, unused equipment: request a return within 30 days of delivery. RMA required; return freight, applicable outbound freight, and restocking fees apply. Open-box terms differ.
Ordinary returns: 10% restocking for unopened new items; 20%–50% for eligible opened or deformed packaging; 20% for eligible open-box returns. Applicable outbound and return freight are additional deductions. Claim exceptions are explained in the return policy.
Approved refunds: allow up to 10 business days after the authorized return is received, subject to inspection and eligibility.
Shipping details · Return termsConfigure your system
Model: AB1-16FT
What's included
Your equipment, clearly laid out.
Confirm installation-kit contents, line lengths and mounting requirements before ordering.
Every $1,500.00 in your cart after discounts earns up to $100.00 off one eligible Armbridge accessory.
Offer stacks: $1,500 earns one eligible accessory; $3,000 earns two; and so on. Eligible Armbridge items include brackets, ground stands, condenser pads, rubber feet, disconnect boxes, A/C whips, and decorative line-set covers. Refrigerant line sets and installation kits are excluded from accessory savings.
Explore the accessory offer →Complete your installation
Accessories paired with this equipment. Choose the options your installation needs.
Product description
Armbridge — Installation Kits for Mini Splits (9k,12k and 18k BTU Single-zone Roma series)
Installation kit offers ease and convenience for HVAC technicians while providing a long-lasting, quality product that customers will not have to replace.
Watch: Overview
Why pros choose Armbridge kits
- Faster installs: pre-flared copper, pre-insulated lines.
- Fewer callbacks: triple-layer insulation with UV/UV-C protection and thickened brass flare nuts hold up over time.
- Code-grade materials: 99.9% copper (ASTM B280) and insulation meeting ASTM D154.
- Broad compatibility: supports 9k,12k and 18k BTU Single-zone Roma series systems with common liquid/suction sizes.
- Right length on the truck: 16/25/50 ft options simplify inventory and reduce waste.
9k,12k,18k BTU (≈0.75–1.5 Ton)
for milano series
16 ft • 25 ft • 50 ft
1/4" / 3/8"
99.9% copper (ASTM B-280)
All ends pre-flared

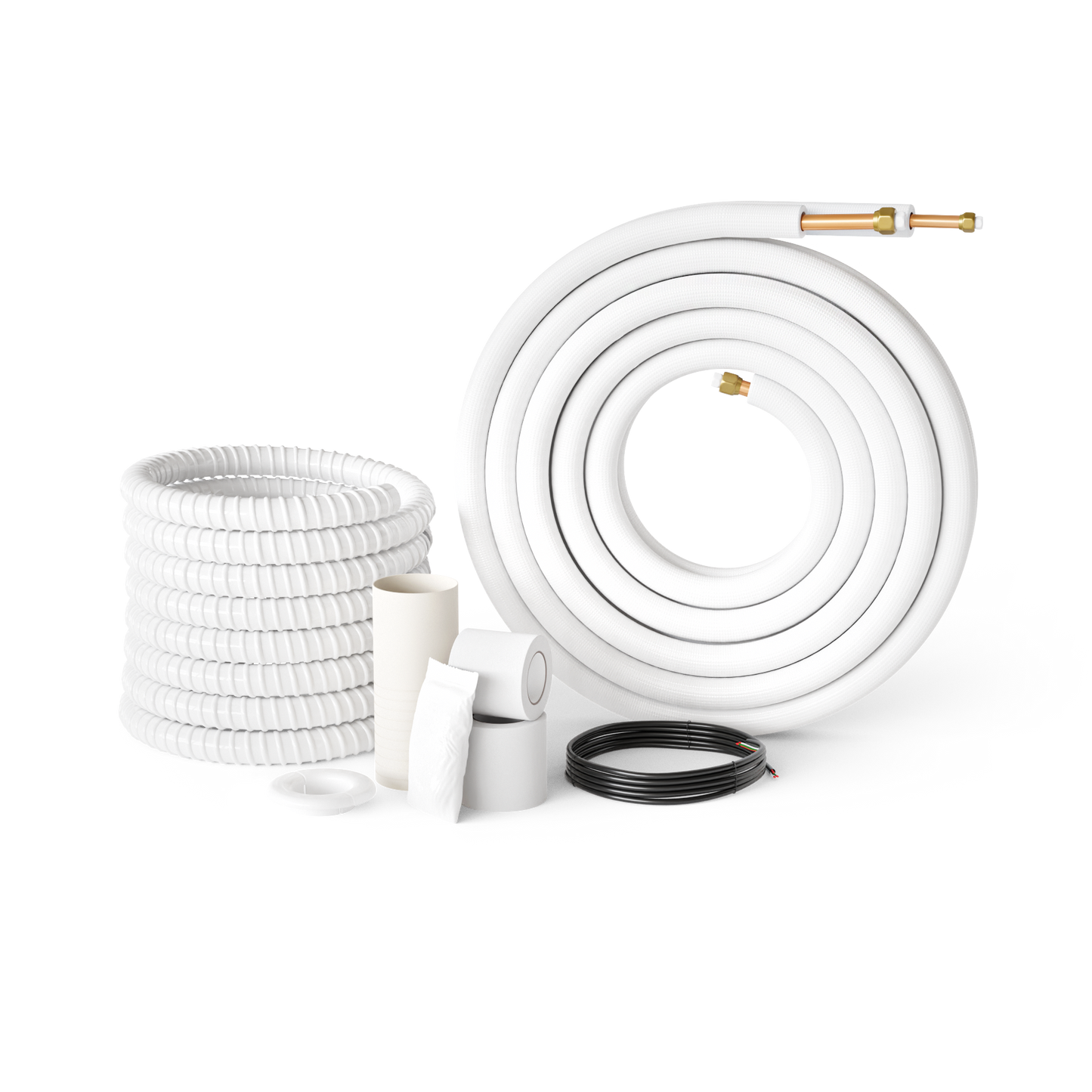

What’s included
- Insulated copper tubes (pre-flared line set, liquid and suction lines)
- Data communication wires
- Wrapping bands / bandage tape
- Rubber drain hose
- Sleeve cover / wall sleeve
- PVC wall corner
- Sealing mud
- Neoprene components

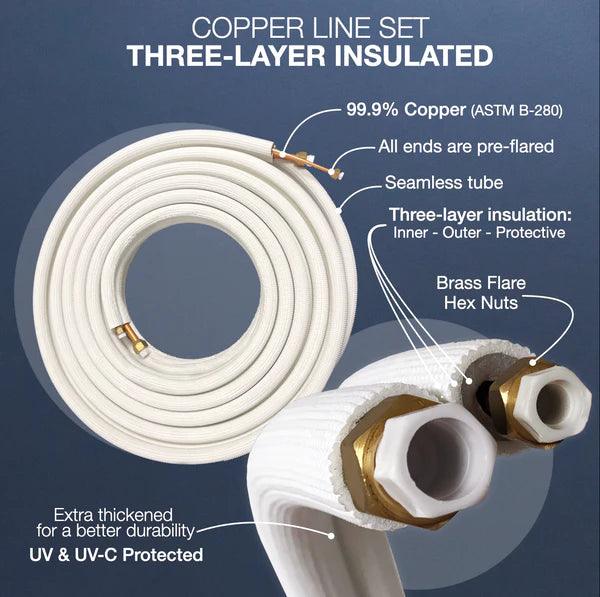

Key features
- Seamless copper tube
- Three-layer insulation: inner, outer, and protective layer
- Brass flare hex nuts
- Extra-thick construction for better durability
- UV & UV-C protected insulation

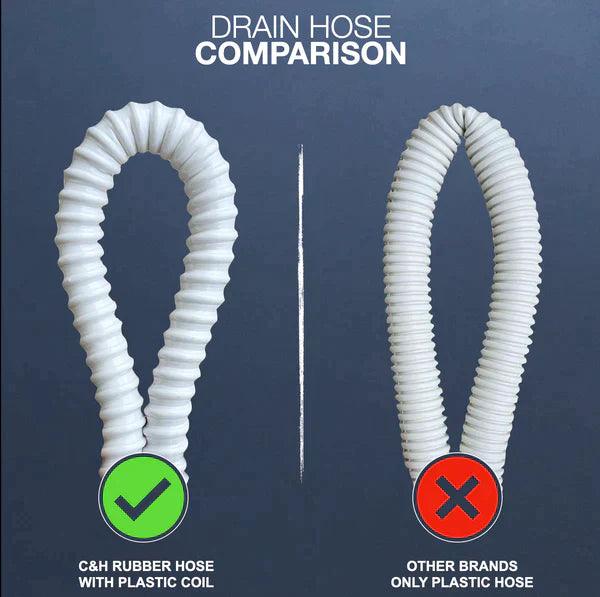

- Rubber hose with plastic coil
- 4/16 AWG connecting cable
- Rubberized drainage hose
- Bandage tape for line protection
- Wall sleeve for clean wall penetration
- Neoprene for additional sealing and vibration control
Manufacturer may change specifications without notice.

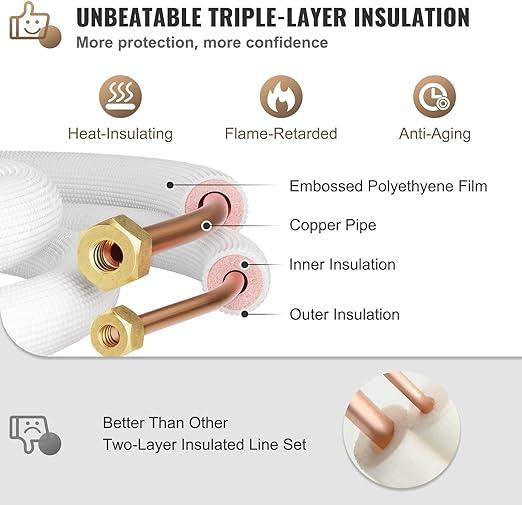

Unbeatable triple-layer insulation
- Heat-insulating foam layer to reduce energy loss.
- Flame-retarded materials designed for safety.
- Anti-aging outer layer for long service life.
- Embossed polyethylene film for extra toughness.
- Copper pipe core for reliable refrigerant flow.
Tech specs — models & lengths
All data below is from the manufacturer.
| Model | Rubber drain hose length | Line set size (liquid – suction) | Copper line length | Cable length |
|---|---|---|---|---|
| AB1-16FT AB1-25FT AB1-50FT |
16 ft | 1/4" – 3/8" | 18 ft 25 ft 50 ft |
16 ft 29.5 ft 55.8 ft |
Full description
Tap to expand
Armbridge bundled installation kits are built to make ductless mini split installs faster and more consistent. Each kit combines a pre-flared, pre-insulated copper line set with communication cable, drain hose, and accessories, so technicians can arrive on site with everything needed for a clean, professional install.
The copper line set uses 99.9% copper (ASTM B-280) and factory-applied insulation (ASTM D154) with UV and UV-C protection, helping it stand up to attic, crawlspace, and exterior runs. Pre-flared ends reduce on-site prep time and help support reliable connections when installed to manufacturer torque specs.
Included 4/16 AWG connecting cable, rubber drain hose, bandage tape, wall sleeve, and neoprene components help simplify penetrations and routing, giving the finished job a more polished appearance while protecting lines from abrasion and weather.
FAQs
Do these kits include communication wires?
How long are the communication wires?
Are the lines pre-charged with refrigerant?
Are the lines pre-flared?
What’s included in the installation kit?
Specifications & dimensions
