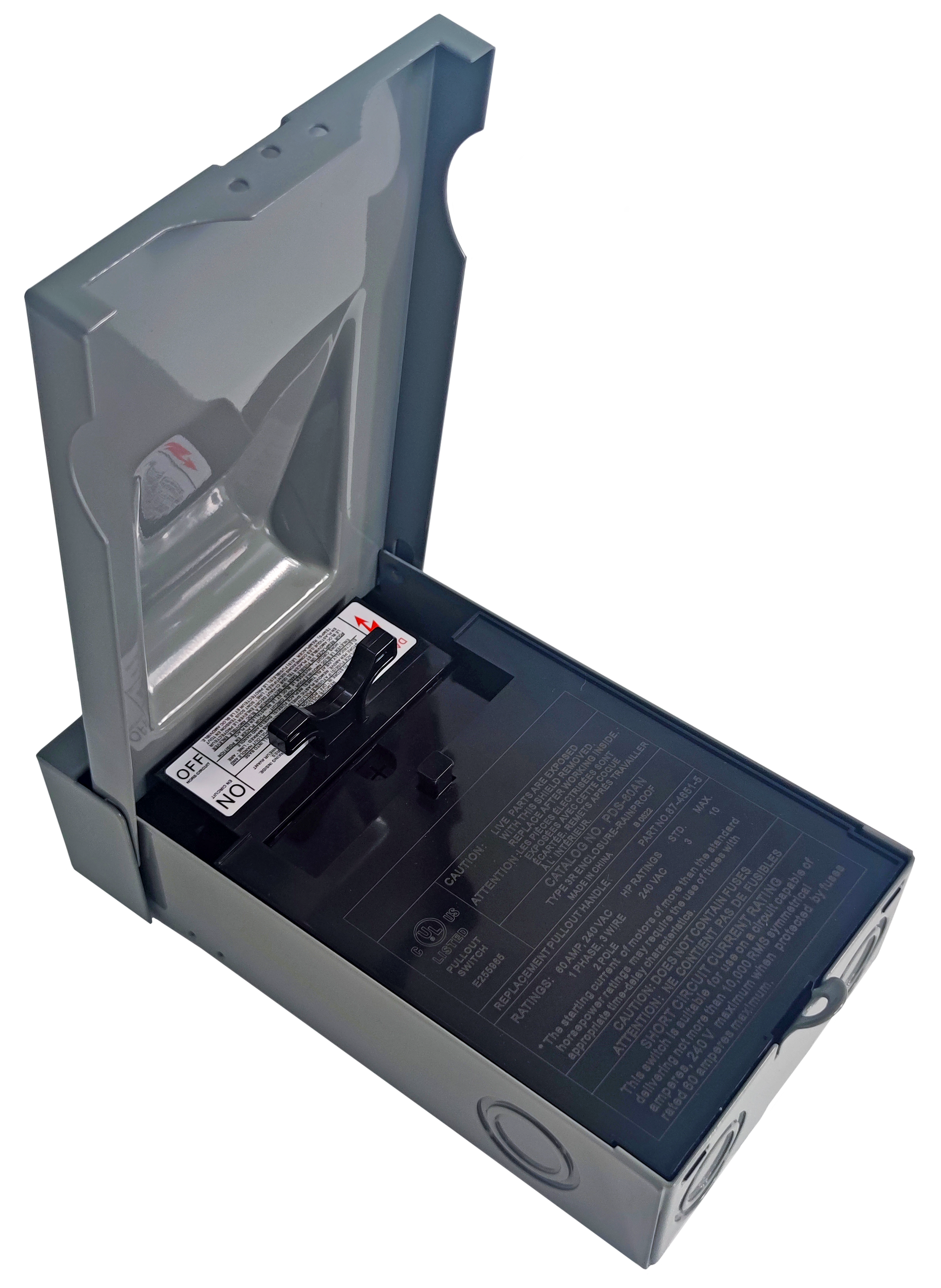

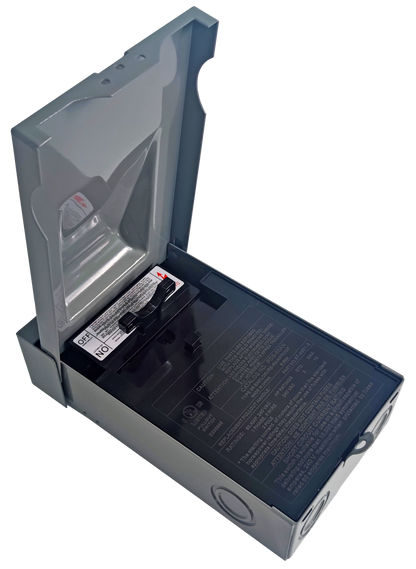

ARMBRIDGE 60 AMP Non-Fusible Metallic Disconnect Box
Durable enclosed 60A disconnect for residential and light commercial HVAC. Weather-resistant metallic housing with 2-pole, 3-wire design.
SKU AB-DIS60-NF 60A • 240V • 1-Phase Non-fusible 2-Pole / 3-Wire Metallic enclosure Outdoor rated
Why pros choose this disconnect
- Safe isolation: provides a secure means to cut power during service.
- Rugged enclosure: metallic housing resists weather, UV, and impact.
- Non-fused simplicity: fewer parts to service and replace.
- Compact footprint: fits tight exterior locations.
- HVAC ready: rated for typical residential and light commercial AC units.
At-a-glance
Amperage
60A
60A
Voltage
240V, 1-Phase
240V, 1-Phase
Configuration
2-Pole, 3-Wire
2-Pole, 3-Wire
Type
Non-fused, enclosed
Non-fused, enclosed
What’s included
- AB-DIS60-NF metallic disconnect box
- Internal pull/handle mechanism (non-fused)
- Knockouts for conduit (sizes vary)
Use listed conduit fittings and copper conductors sized per code and equipment nameplate.
Tech specs
| Spec | Details |
|---|---|
| Model / SKU | AB-DIS60-NF |
| Type | Non-fusible, enclosed air conditioner disconnect |
| Enclosure | Metallic, weather-resistant; suitable for outdoor mounting |
| Electrical ratings | 60A, 240V, 1-Phase, 2-Pole, 3-Wire |
| HP rating @ 240V | STD 3 HP, Max 10 HP |
| Applications | Residential AC, heat pumps, light commercial HVAC equipment |
| Compliance | Install per NEC/local code; use copper conductors and listed fittings |
| Pack option | Also available as 6-piece case (availability varies) |
Full description
Tap to expand
The AB-DIS60-NF is a 60-amp, non-fused, enclosed disconnect engineered for outdoor HVAC service isolation. Its metallic enclosure shields internal components from weather and impact, while the non-fused design simplifies maintenance. Rated 240V single-phase with a 2-pole, 3-wire configuration, it supports common residential and light commercial air conditioning and heat pump installations.
FAQs
Is this disconnect fused?
No. It is non-fusible. Overcurrent protection must be provided upstream (breaker or fused disconnect as required by code).
Is it rated for outdoor use?
Yes. The metallic enclosure is weather-resistant for exterior mounting.
What systems is it compatible with?
240V, 1-phase HVAC equipment such as AC condensers and heat pumps, within the 60A rating.
Does it include knockouts?
Yes. Standard knockouts accept listed conduit fittings. Use sizes appropriate for your conductors.
When should I choose a fused disconnect instead?
When the equipment nameplate or local code requires fuse protection or short-circuit current ratings that a breaker alone cannot meet.
